Engine Controls Schematics (LX9)

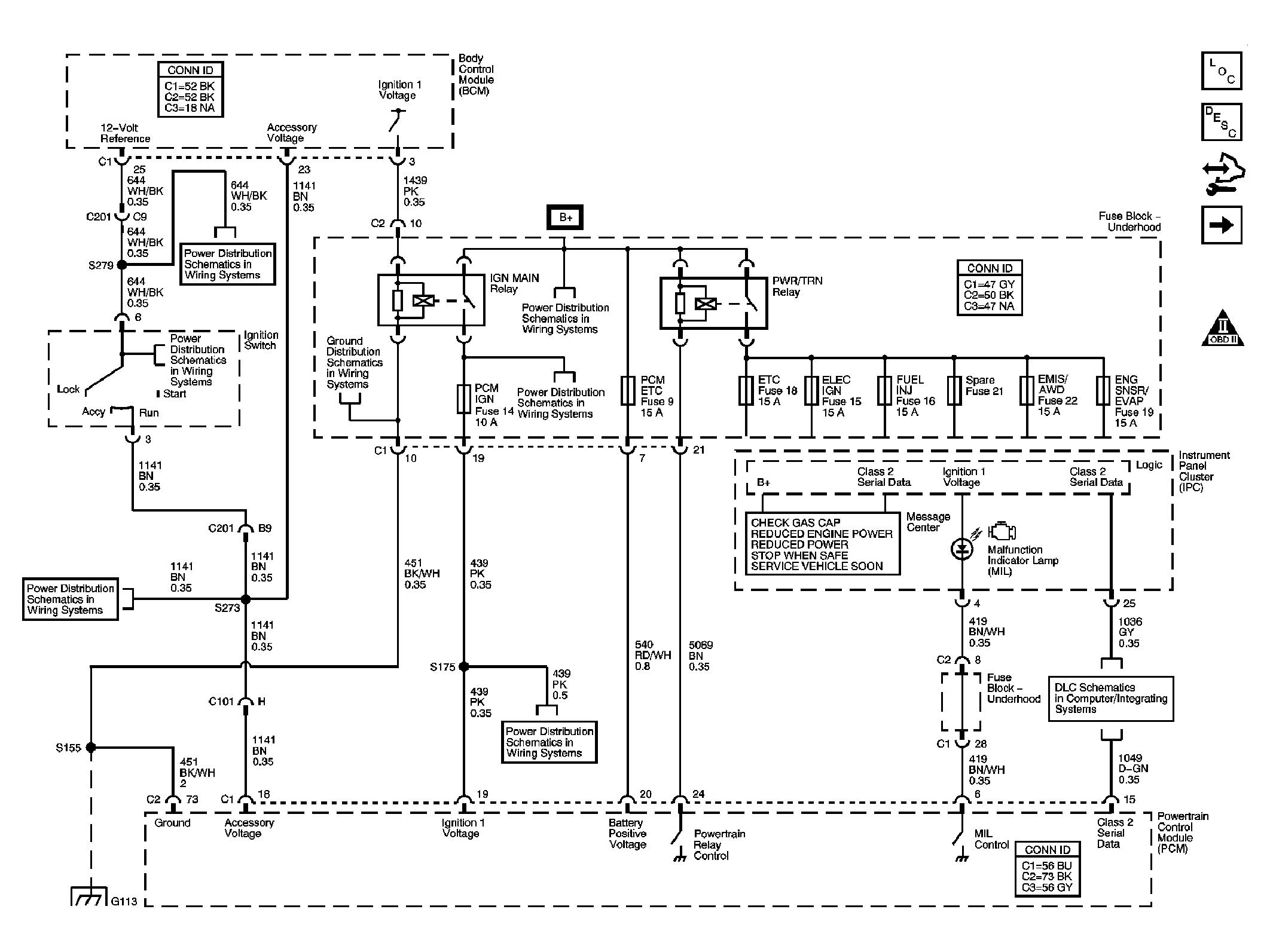

Fig 1: Module Power, Ground, Serial Data & MIL Schematic
GM1636865Courtesy of GENERAL MOTORS CORP.

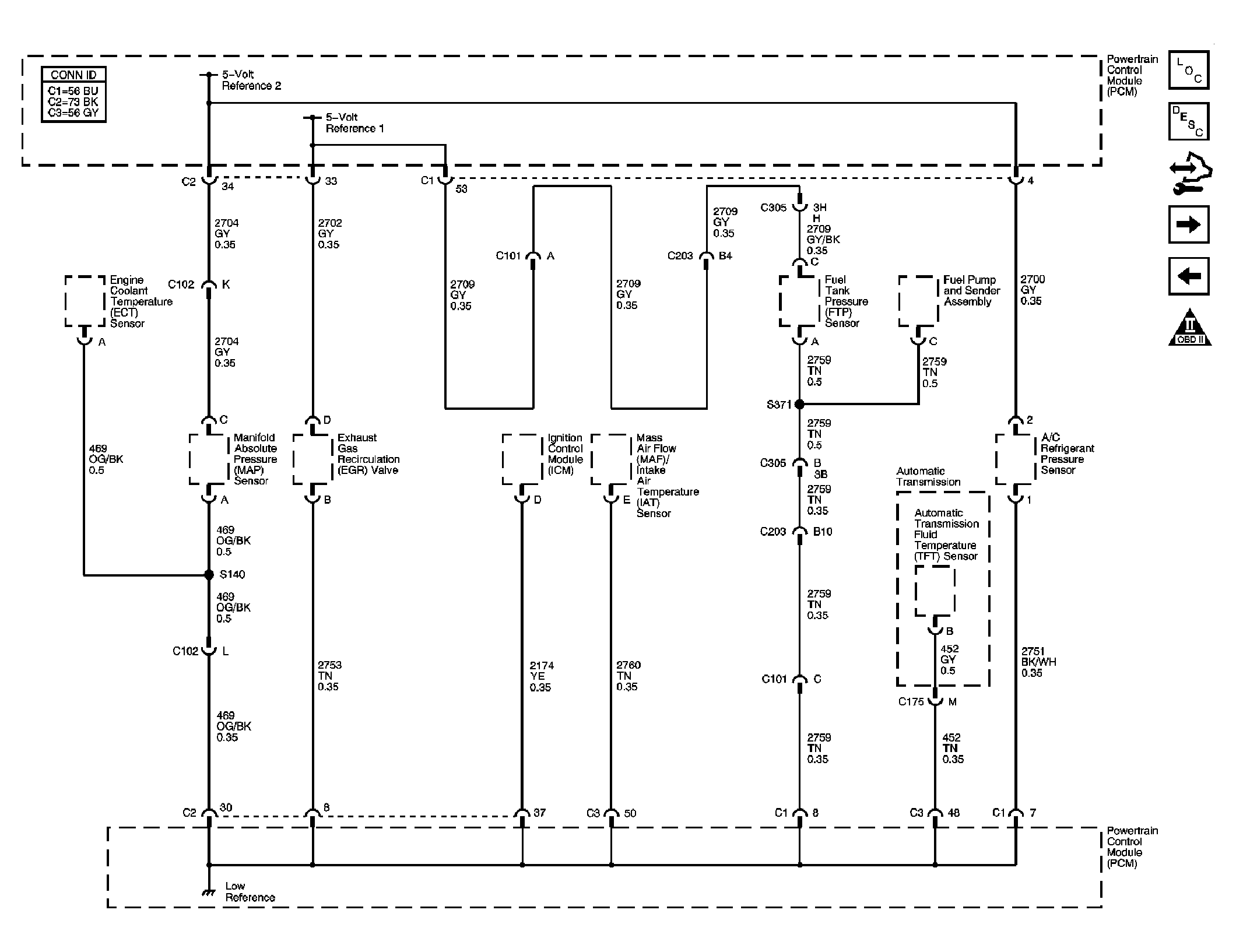

Fig 2: Engine Data Sensors Schematic - 5-Volt & Low Reference
GM1636866Courtesy of GENERAL MOTORS CORP.

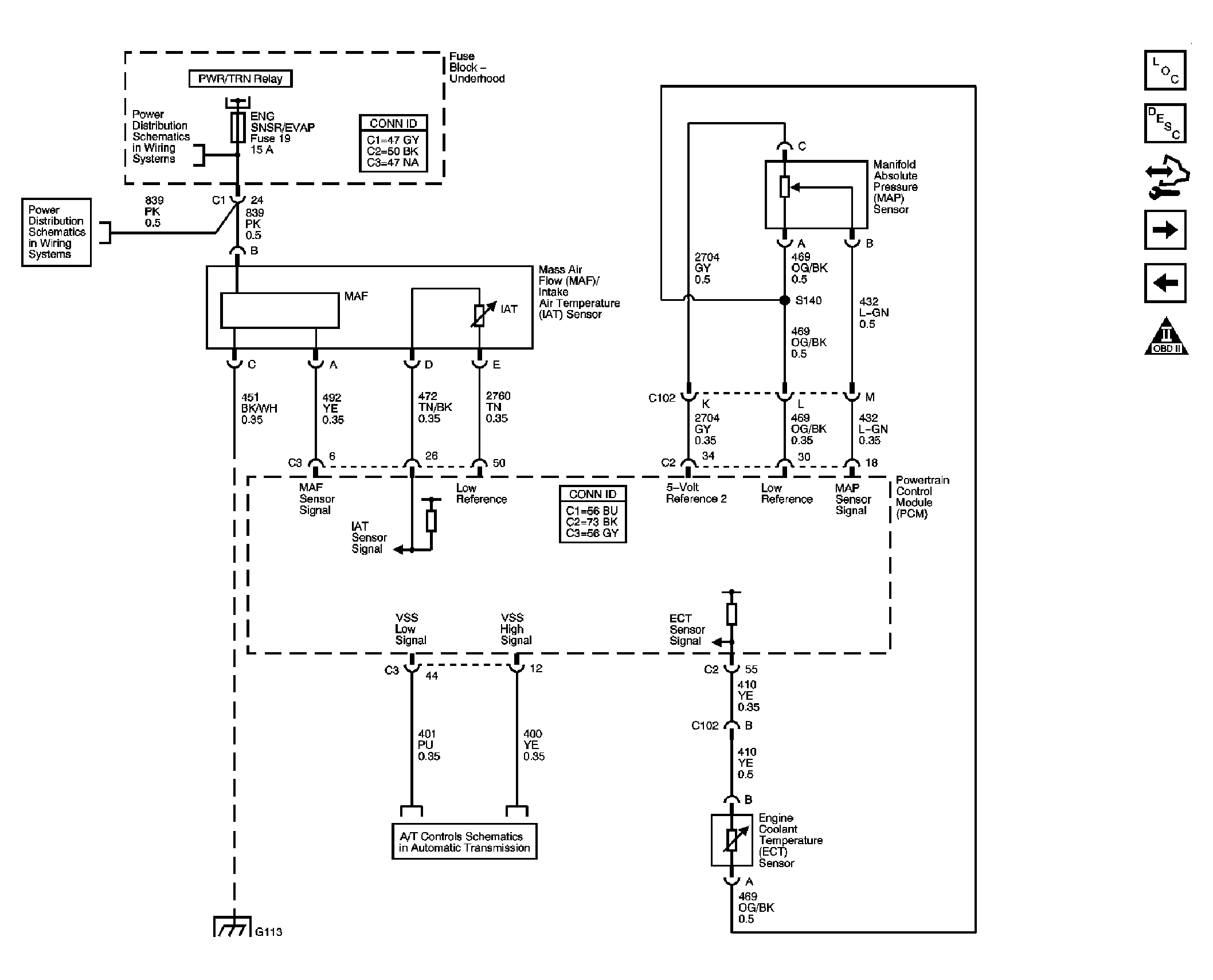

Fig 3: Engine Data Sensors Schematic - MAF, Pressure, Temperatur & VSS
GM1636867Courtesy of GENERAL MOTORS CORP.

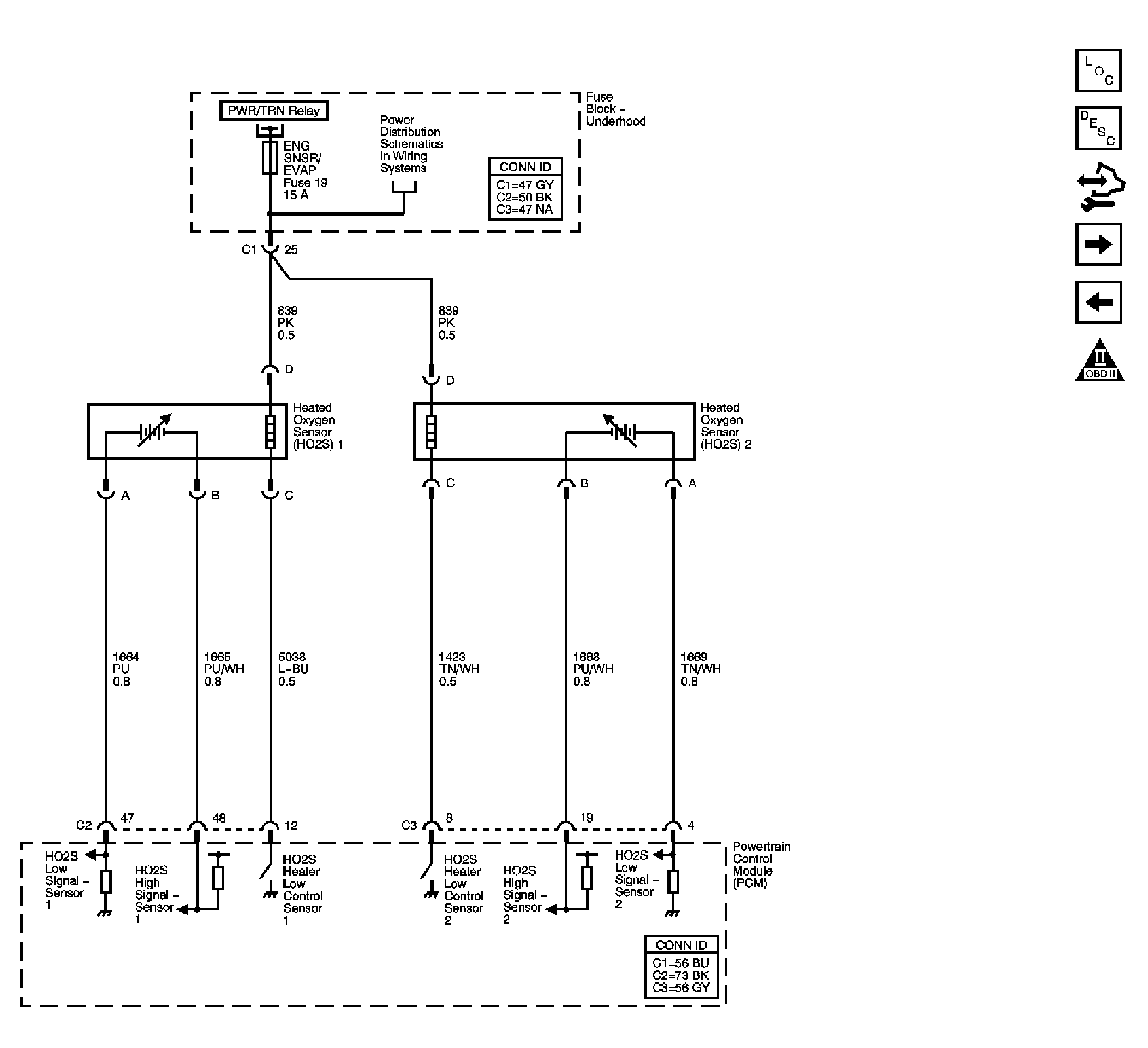

Fig 4: Engine Data Sensors Schematic - Oxygen Sensors
GM1636868Courtesy of GENERAL MOTORS CORP.

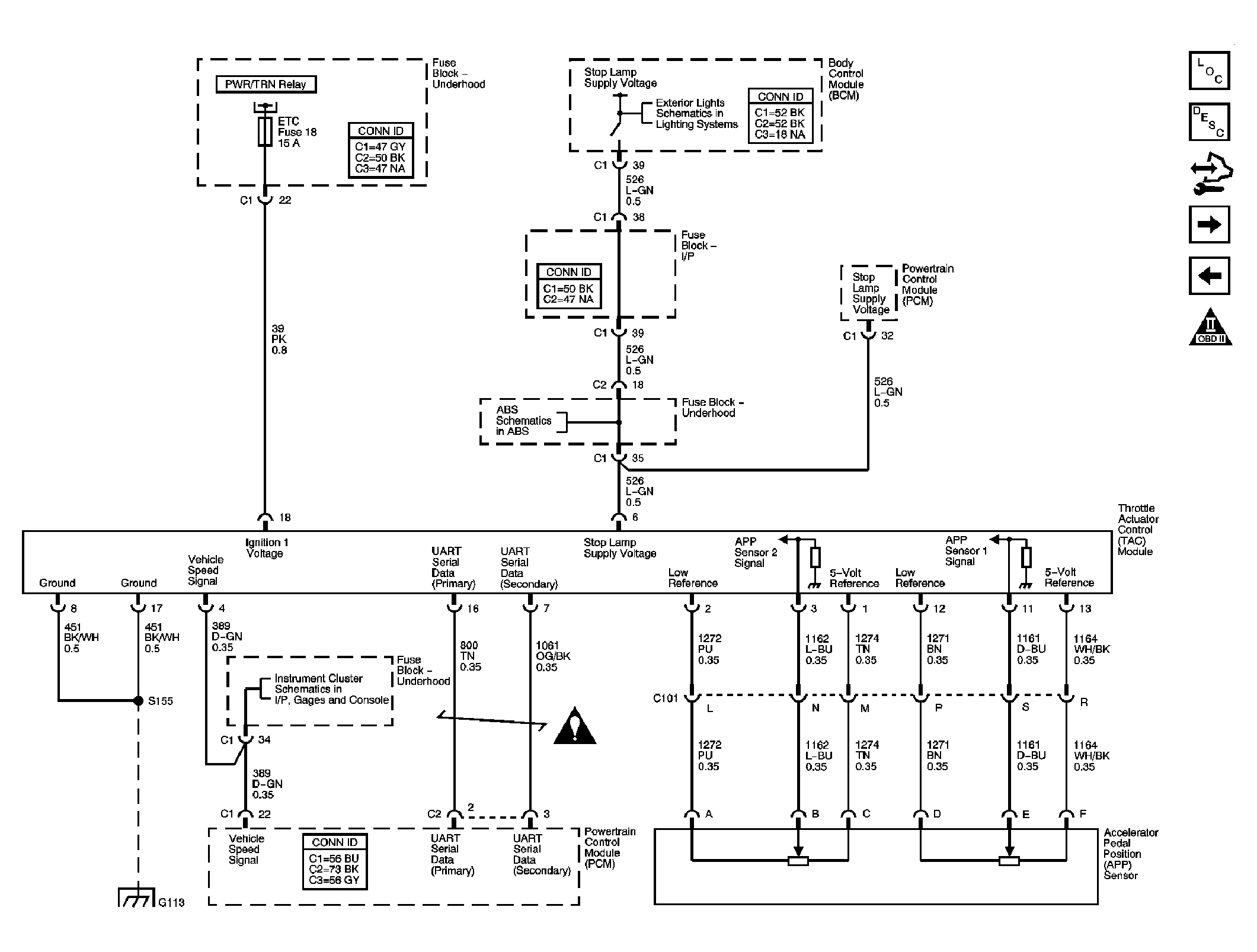

Fig 5: Engine Data Sensors Schematic - Throttle Actuator Controls
GM1636869Courtesy of GENERAL MOTORS CORP.

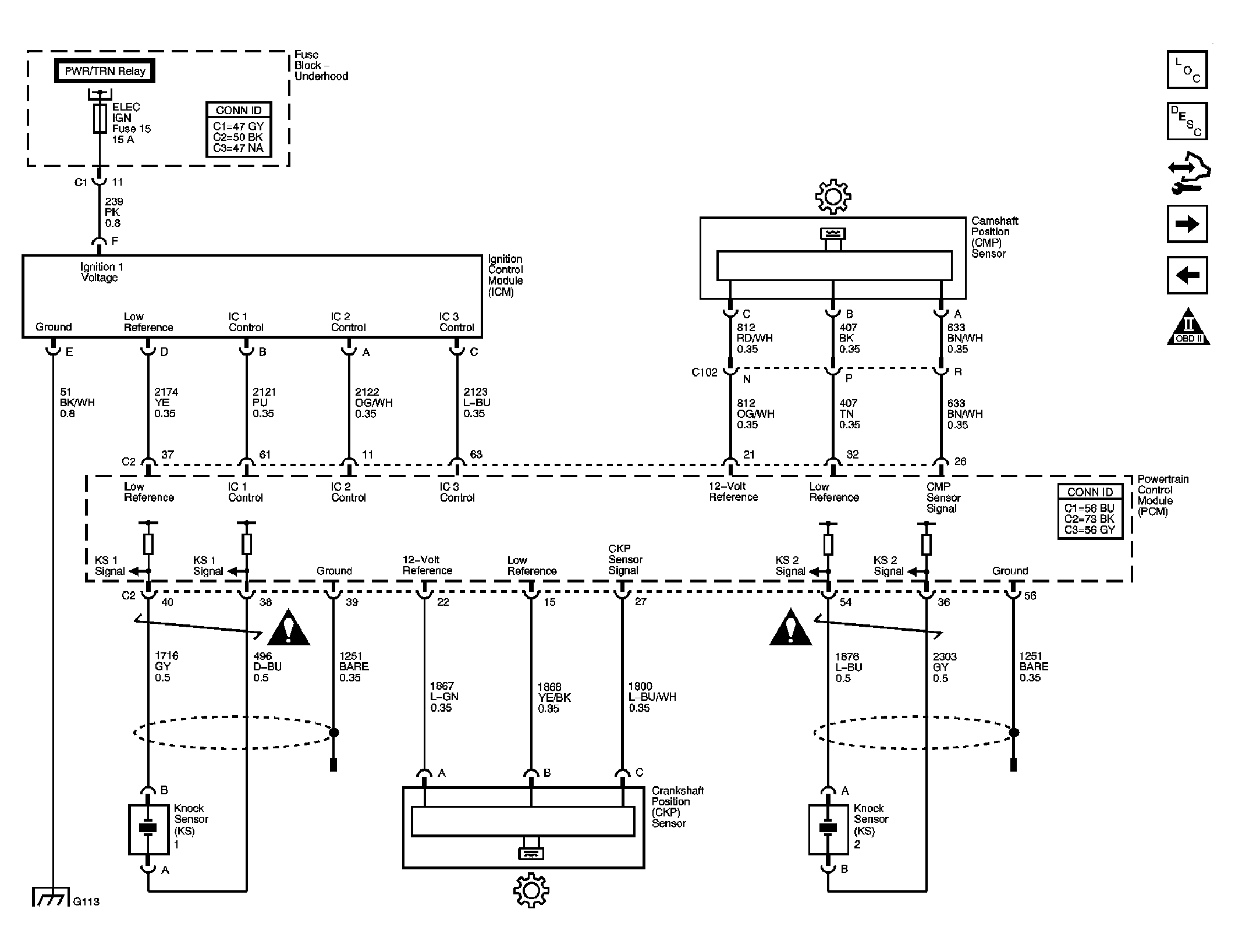

Fig 6: Ignition Controls Schematic - Ignition System
GM1636870Courtesy of GENERAL MOTORS CORP.

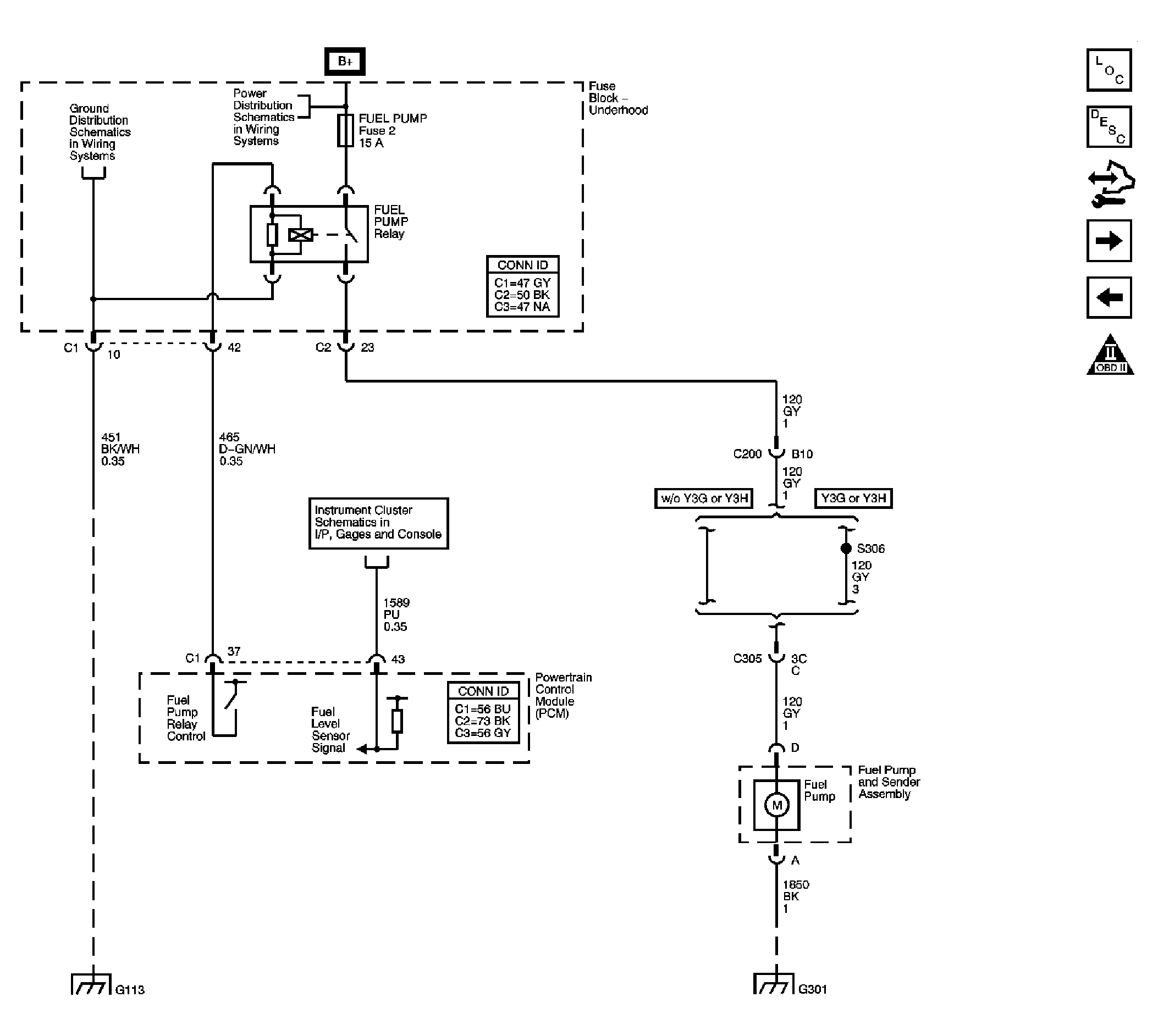

Fig 7: Fuel Controls Schematic - Fuel Pump Controls
GM1636871Courtesy of GENERAL MOTORS CORP.

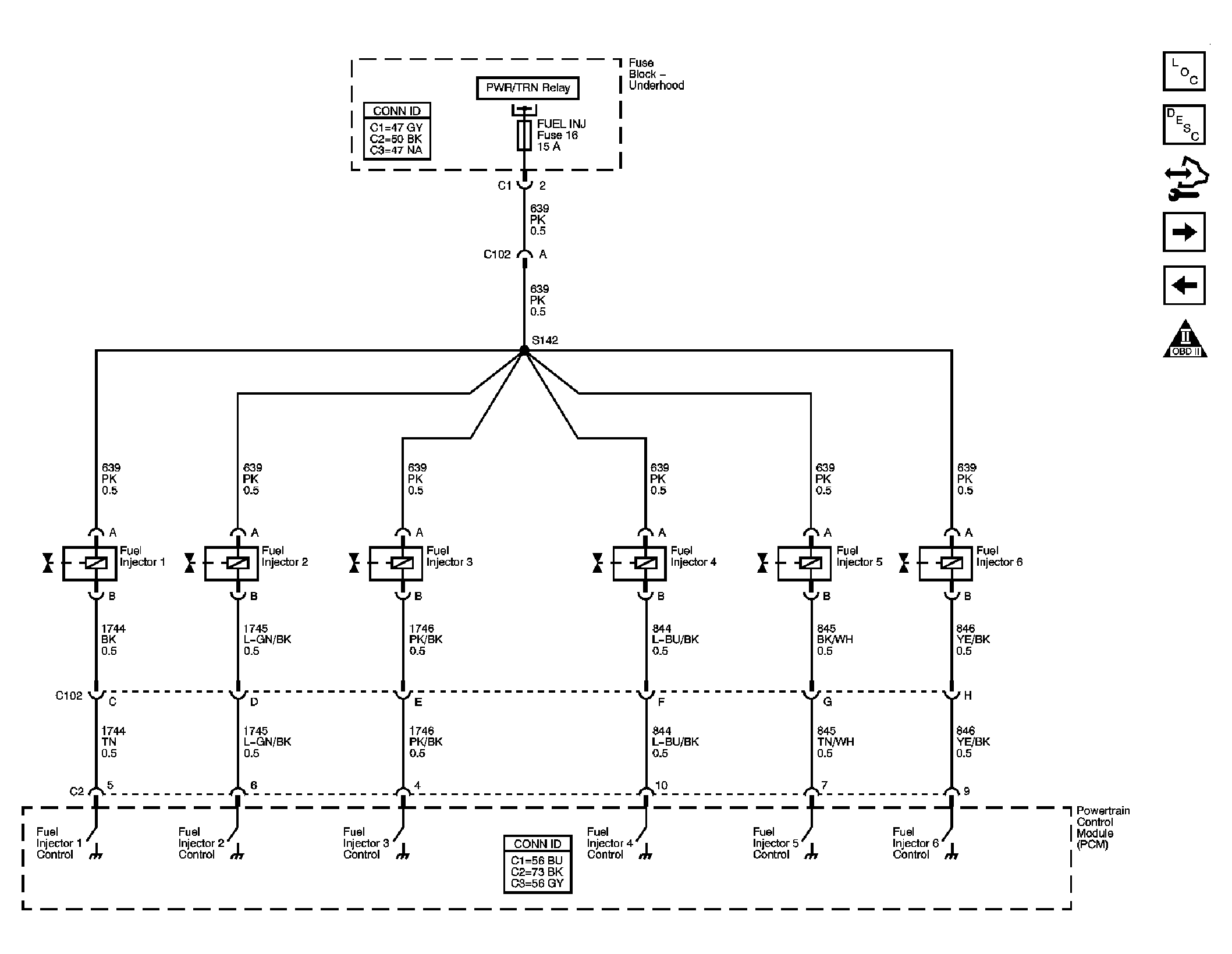

Fig 8: Fuel Controls Schematic - Fuel Injectors
GM1636872Courtesy of GENERAL MOTORS CORP.

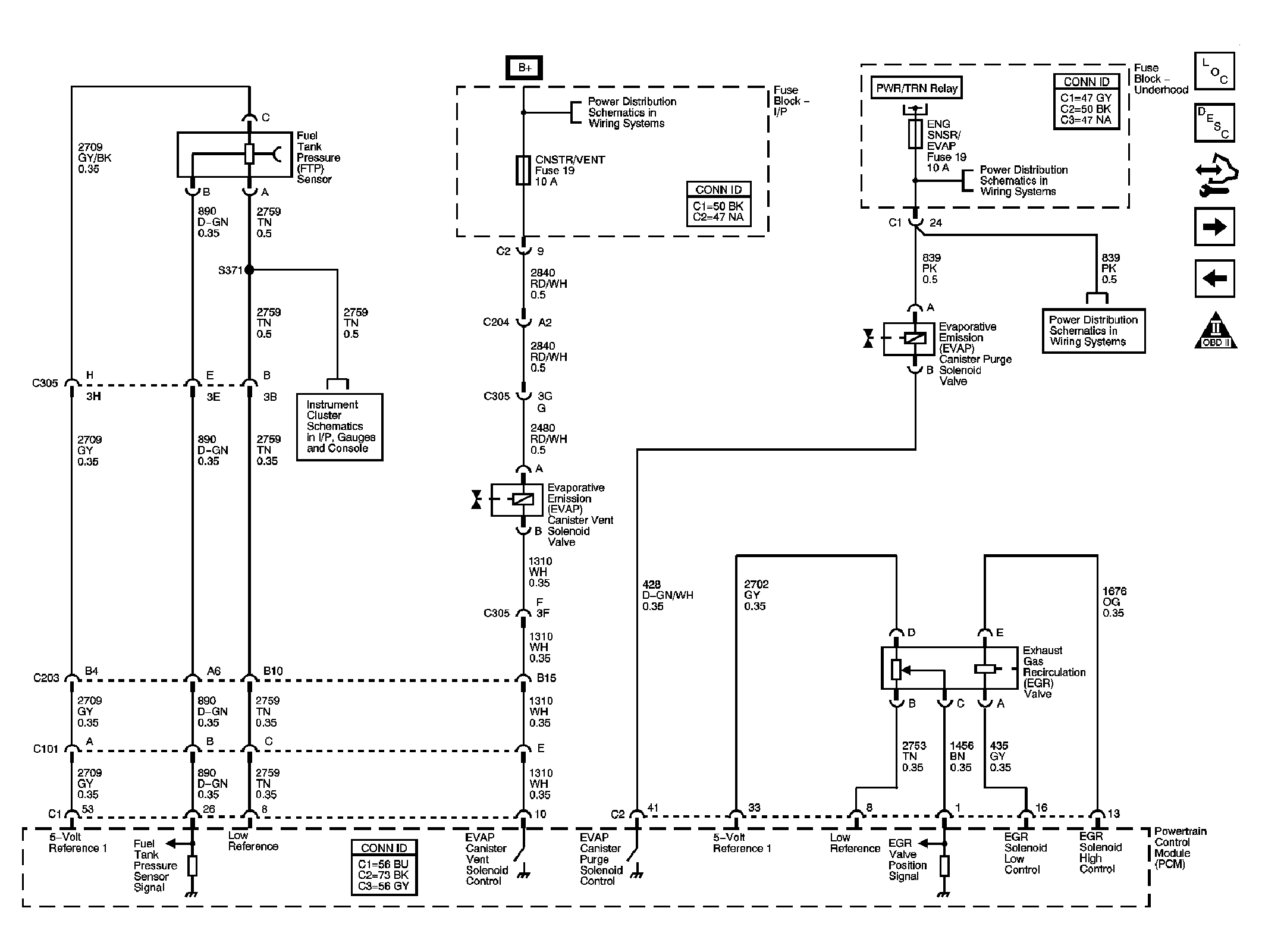

Fig 9: Fuel Controls Schematic - EVAP Controls
GM1636873Courtesy of GENERAL MOTORS CORP.

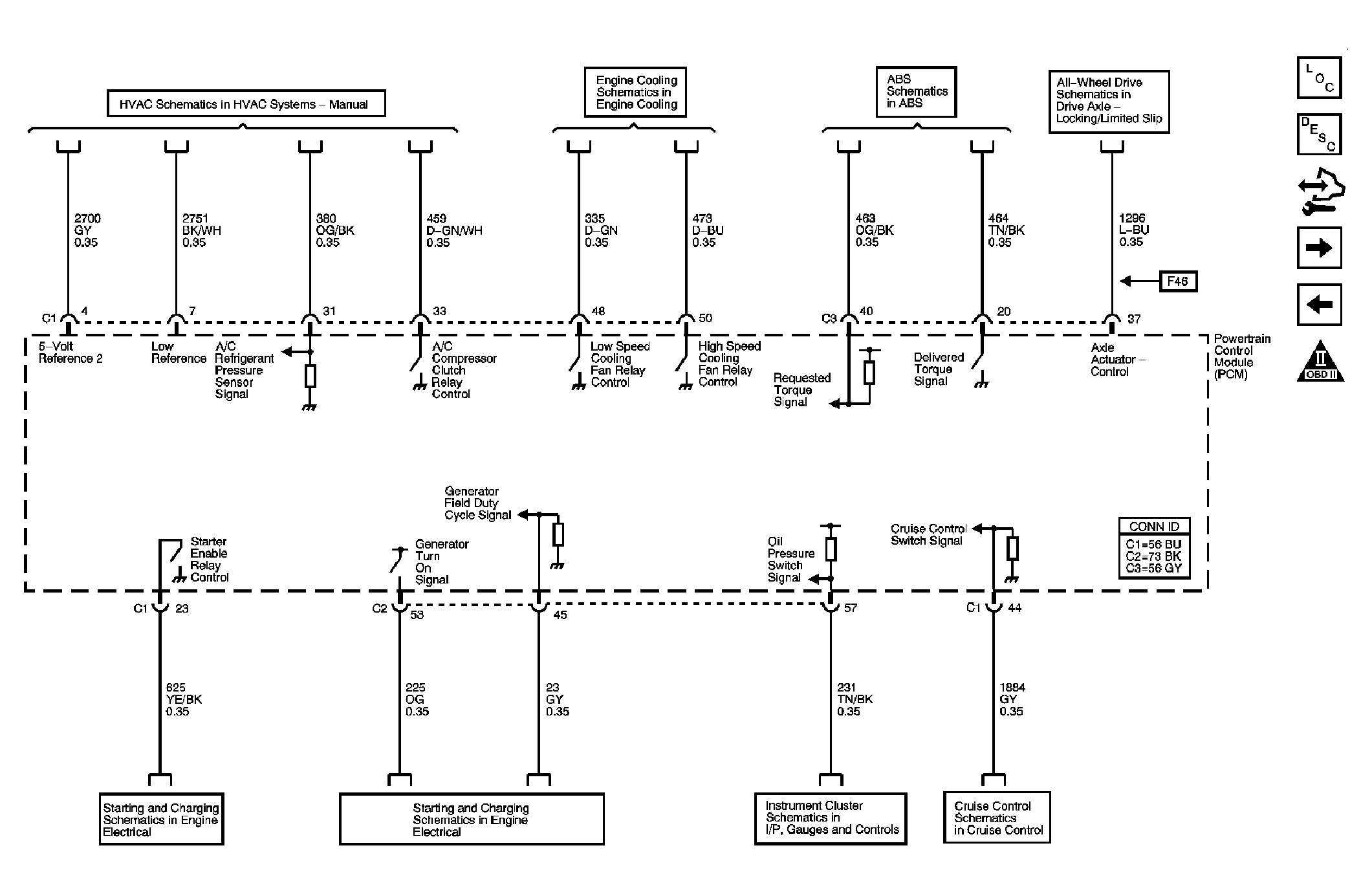

Fig 10: Controlled/Monitored Subsystem References Schematic
GM1636874Courtesy of GENERAL MOTORS CORP.

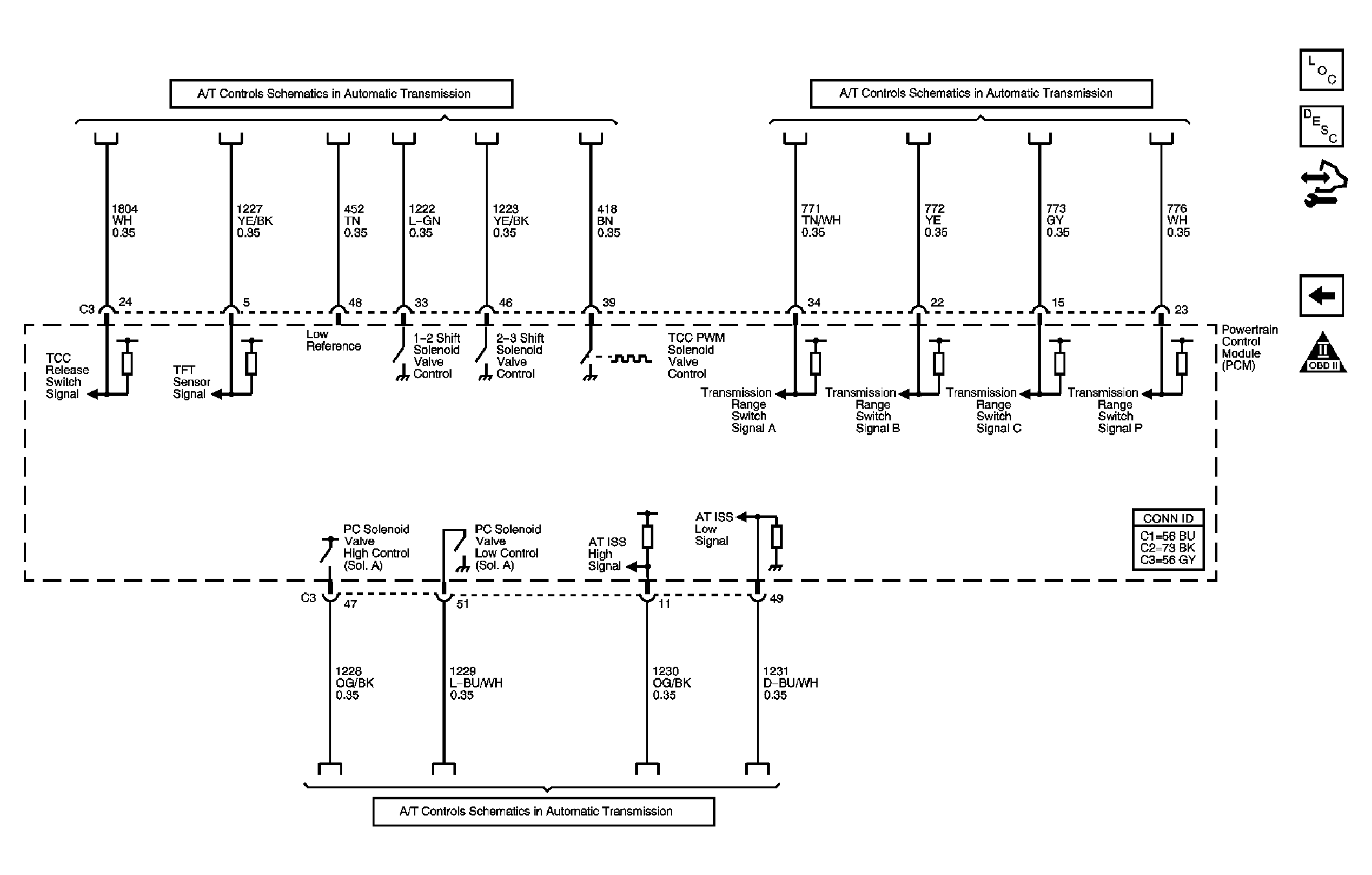

Fig 11: Transmission Controlled References Schematic
GM1636875Courtesy of GENERAL MOTORS CORP.
