Installation Procedure

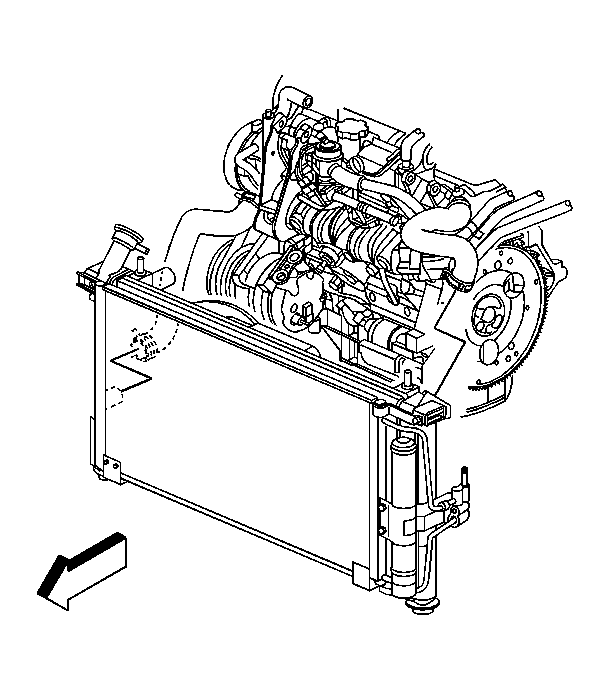

    Fig 1: Identifying Radiator & Hoses
    GM1547164Courtesy of GENERAL MOTORS CORP.
  1. Install the radiator inlet hose to the thermostat housing.
  2. Using a small flat-bladed screwdriver, release the hose clamp retention lock at the thermostat housing.

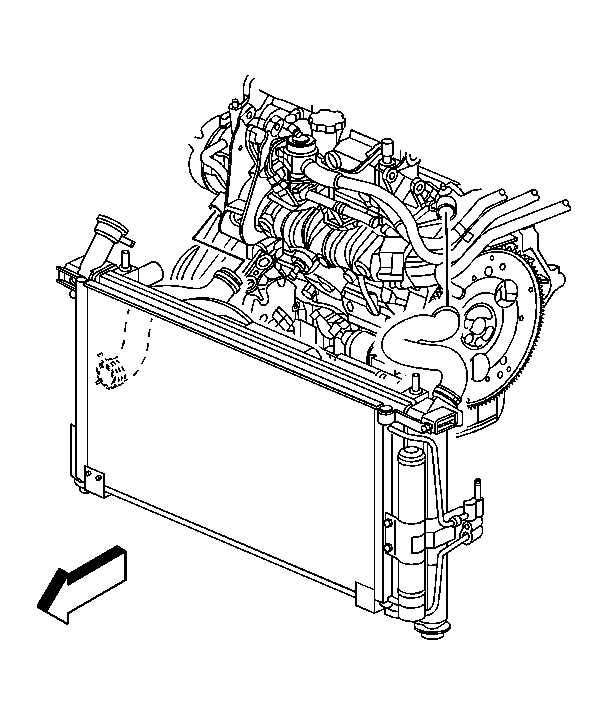

    3. Fig 2: Installing Radiator Inlet Hose
    GM1547163Courtesy of GENERAL MOTORS CORP.
  3. Install the radiator inlet hose to the radiator.
  4. Using a small flat-bladed screwdriver, release the hose clamp retention lock at the radiator.
  5. Install the left side diagonal brace. Refer to Brace Replacement - Sheet Metal Diagonal (Chevrolet) , Brace Replacement - Sheet Metal Diagonal (Pontiac) or Brace Replacement - Sheet Metal Diagonal (Buick) in Body Front End.
  6. Fill the cooling system. Refer to Draining and Filling Cooling System (Static Fill)  or Draining and Filling Cooling System (Vac-N-Fill) .
