Installation Procedure

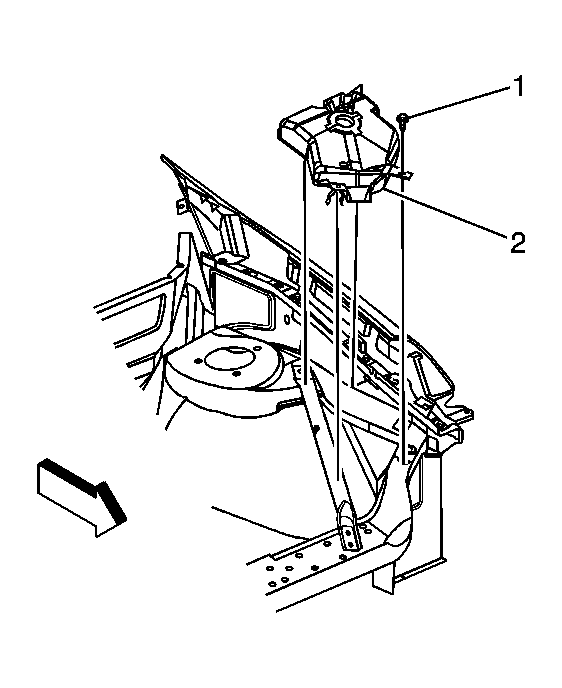

    Fig 1: Removing/Installing Coolant Recovery Reservoir
    GM1547162Courtesy of GENERAL MOTORS CORP.
  1. Install the coolant reservoir (2).
  2. Install the coolant recovery reservoir retainer (1).

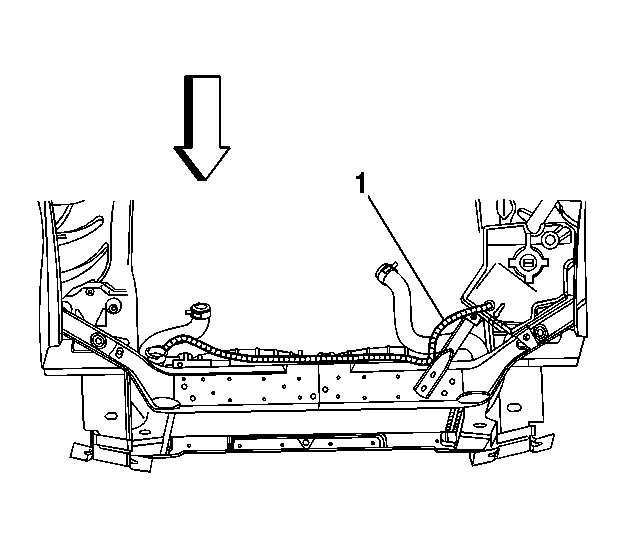

    3. Fig 2: Identifying Recovery Reservoir Hose
    GM1547161Courtesy of GENERAL MOTORS CORP.
  3. Install the hose (1) to the reservoir.
  4. Position the coolant overflow hose clamp at the coolant recovery reservoir.
  5. Fill the coolant recovery reservoir, if necessary. Refer to Draining and Filling Cooling System (Static Fill)  or Draining and Filling Cooling System (Vac-N-Fill) .
