Instrument Cluster Schematics

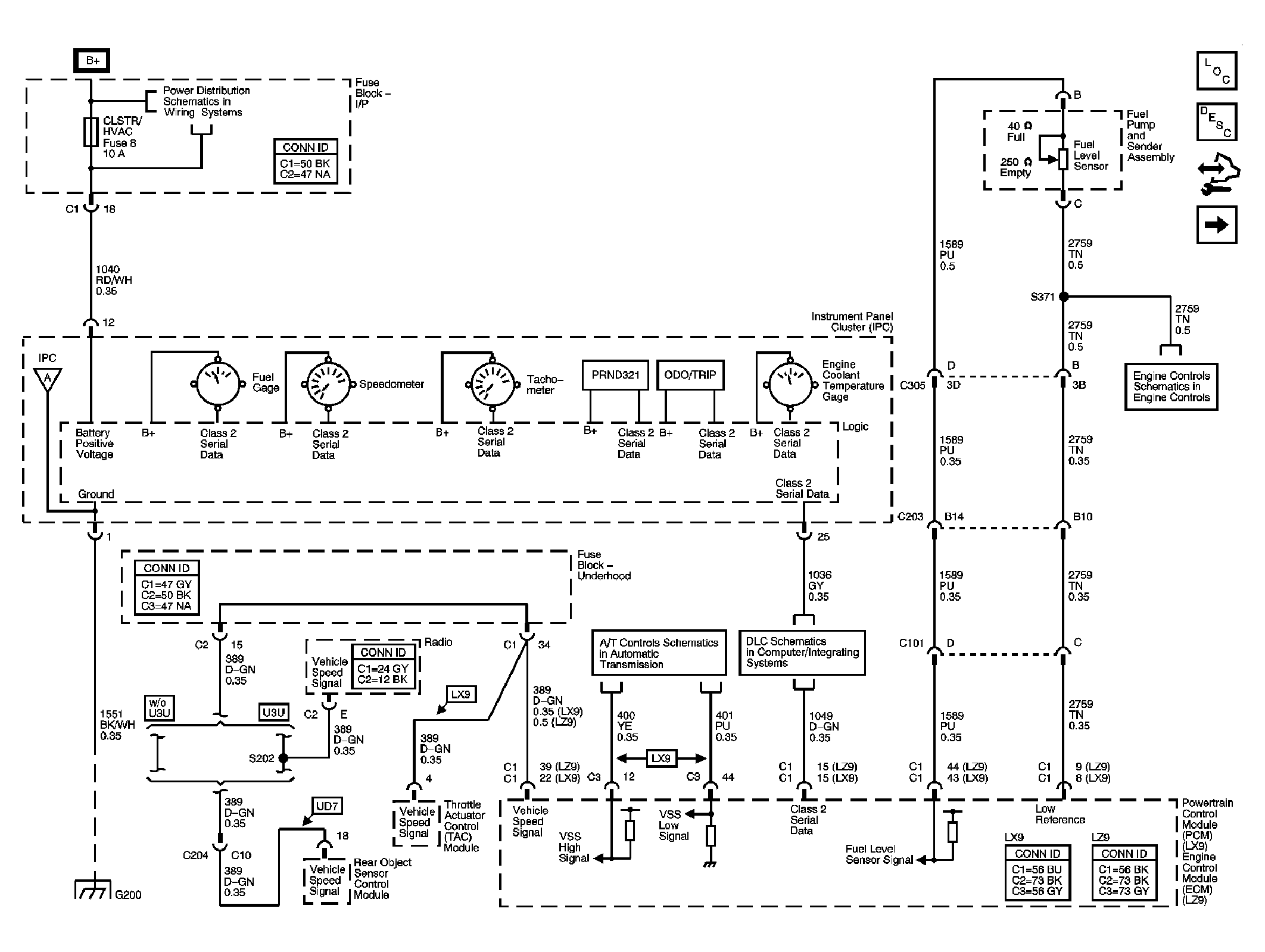

Fig 1: Gages, Ground & Power Schematic
GM1636927Courtesy of GENERAL MOTORS CORP.

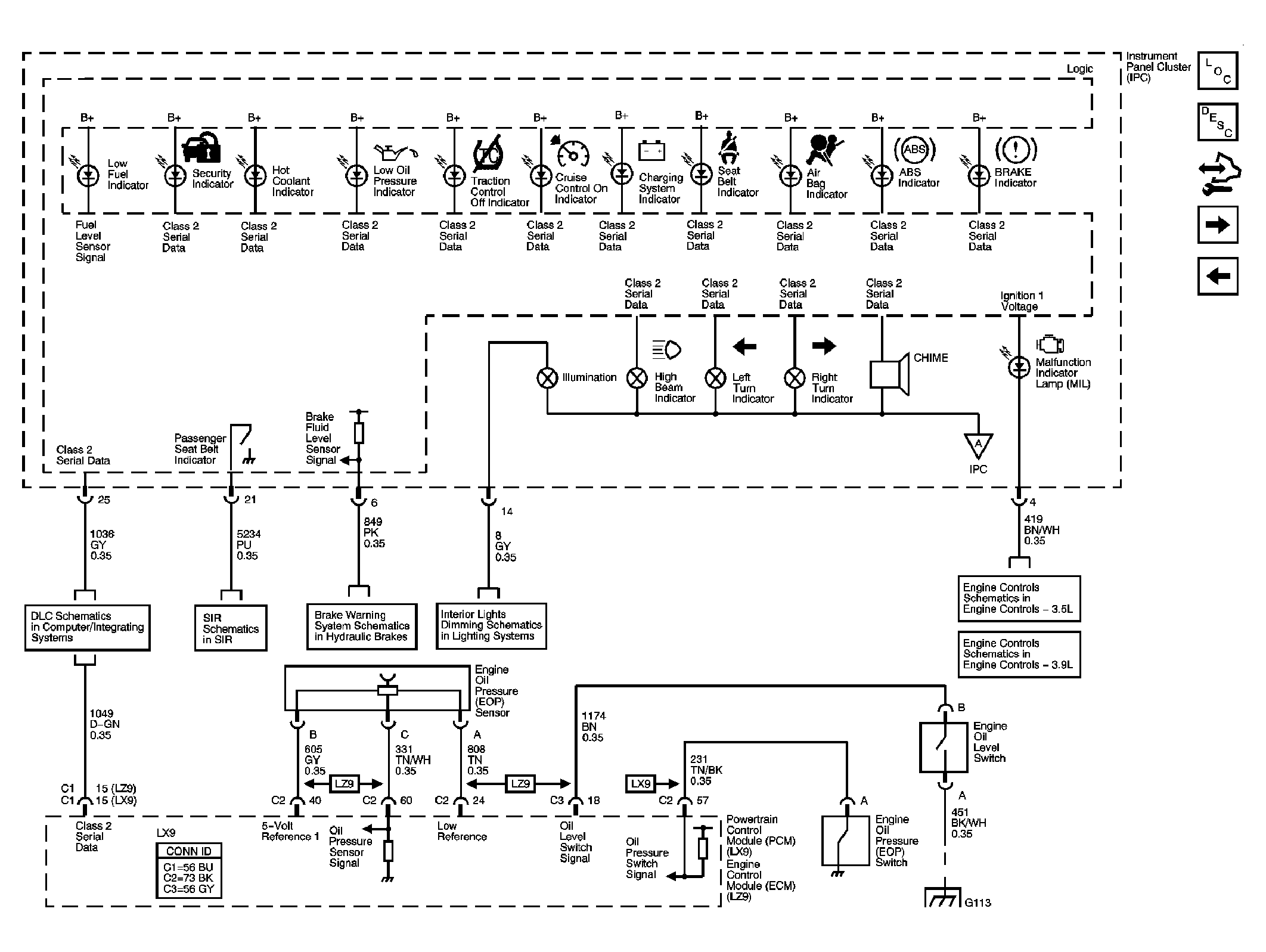

Fig 2: Indicators & Lighting Schematic
GM1636928Courtesy of GENERAL MOTORS CORP.

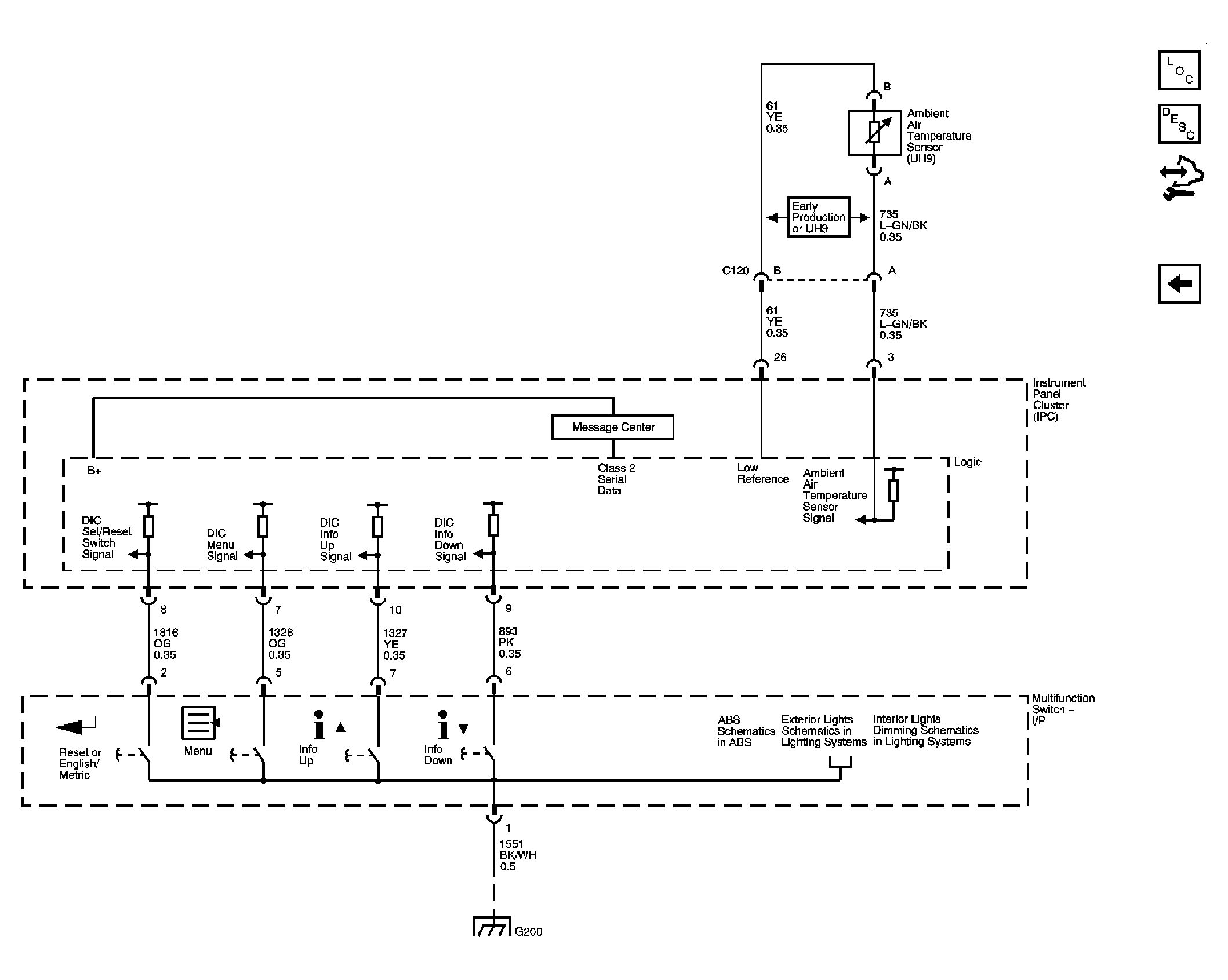

Fig 3: Messages Schematic
GM1636929Courtesy of GENERAL MOTORS CORP.
