Door Lock/Indicator Schematics

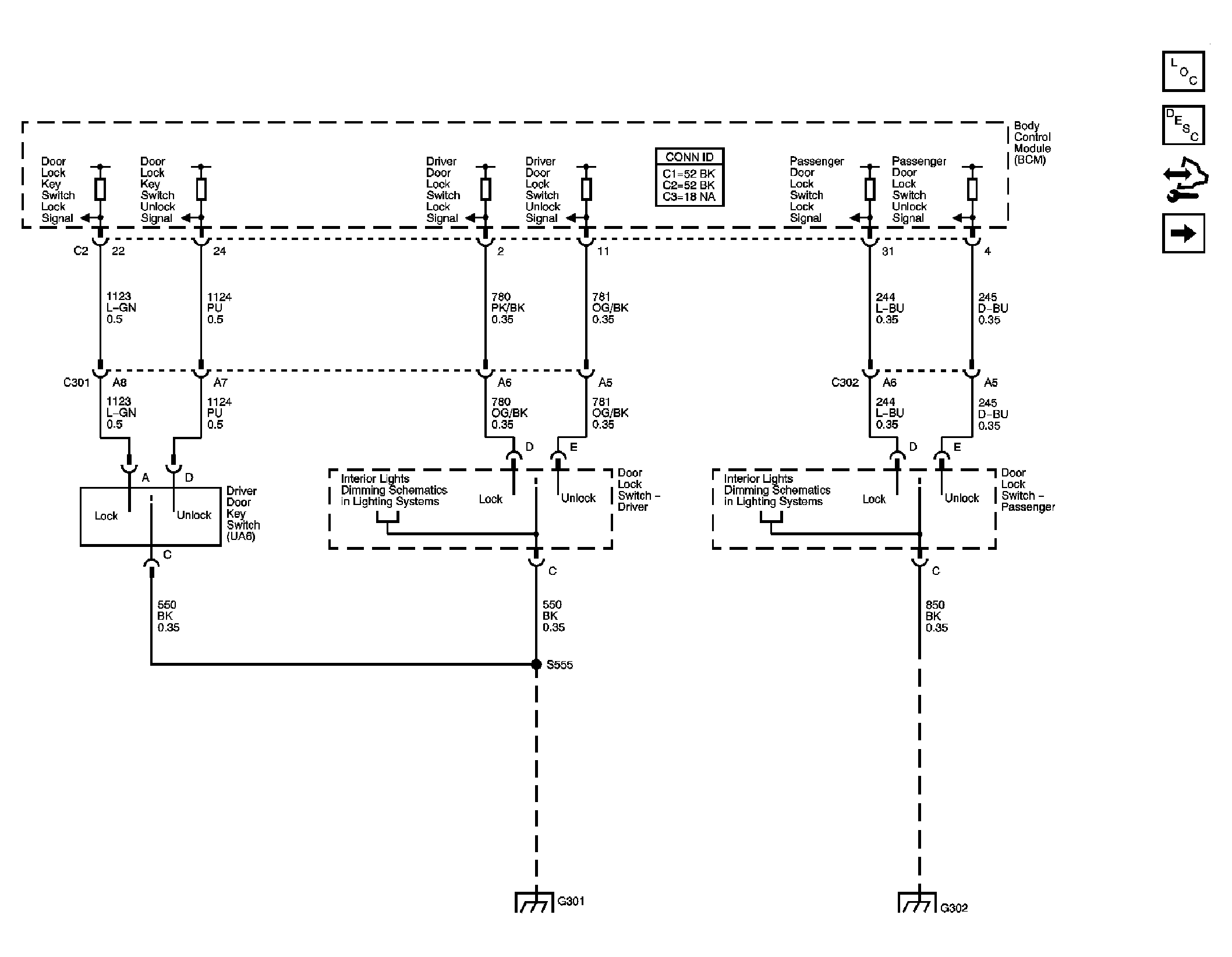

Fig 1: Switches Schematic
GM1636945Courtesy of GENERAL MOTORS CORP.

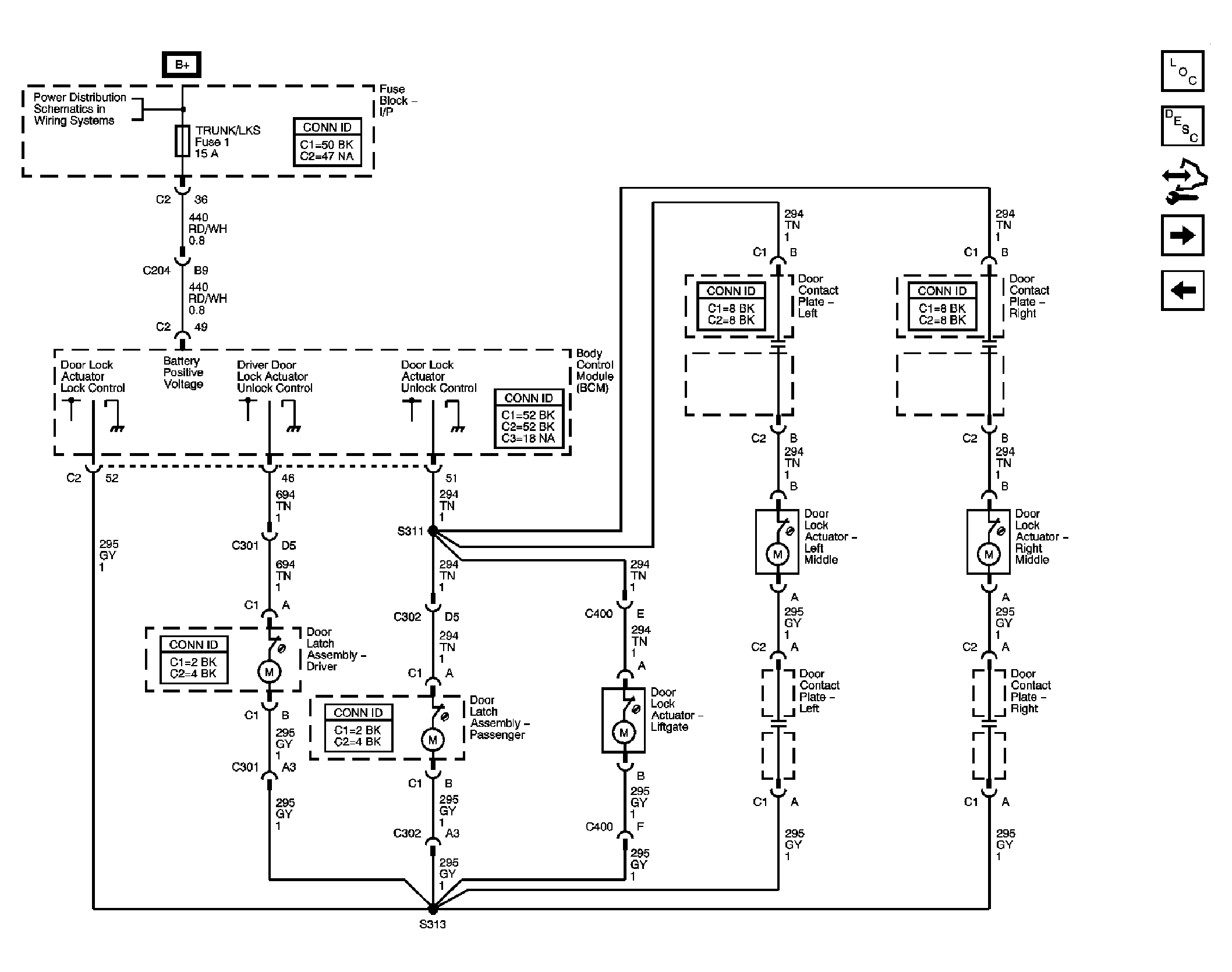

Fig 2: Actuators Schematic
GM1636946Courtesy of GENERAL MOTORS CORP.

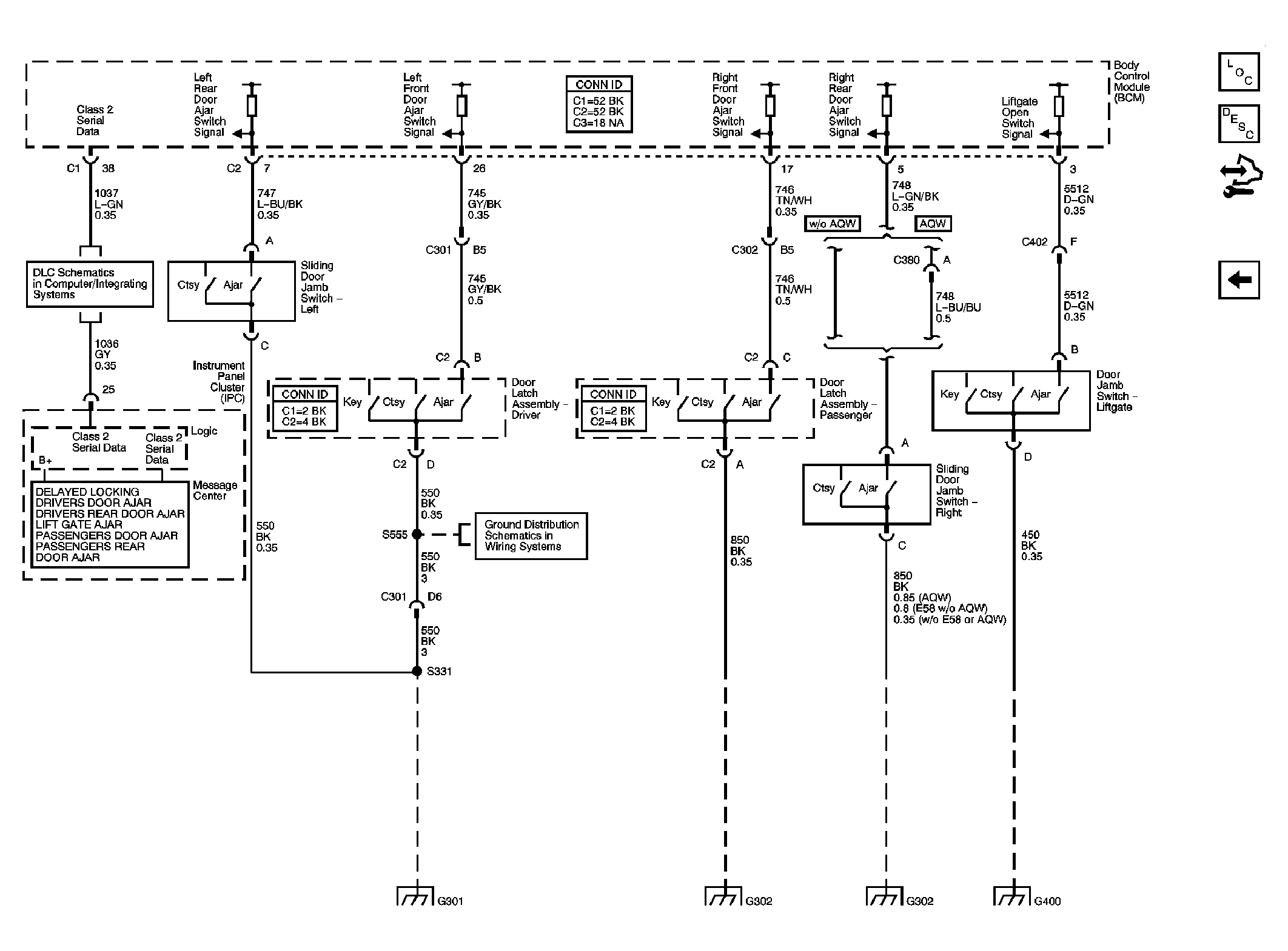

Fig 3: Indicators Schematic
GM1636947Courtesy of GENERAL MOTORS CORP.
