Memory Seat Switch Replacement

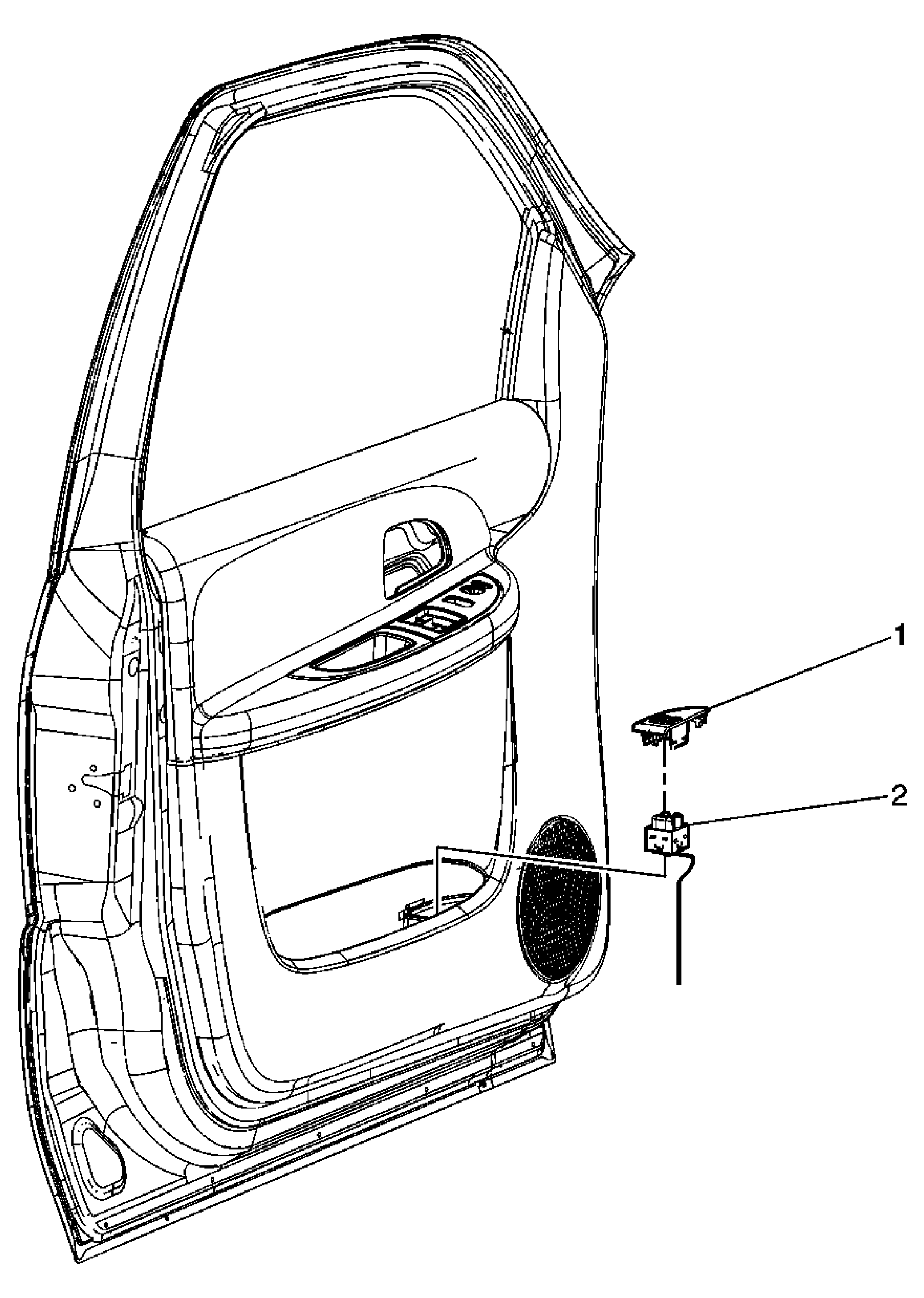

Fig 1: Locating Memory Seat Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Bezel, Memory Seat Switch Tip: Use a small flat-bladed tool to remove bezel and switch from the door trim panel.
2	Switch Assembly, Memory Seat Tip: Disconnect the electrical connector.
