Sunshade Anchor Replacement

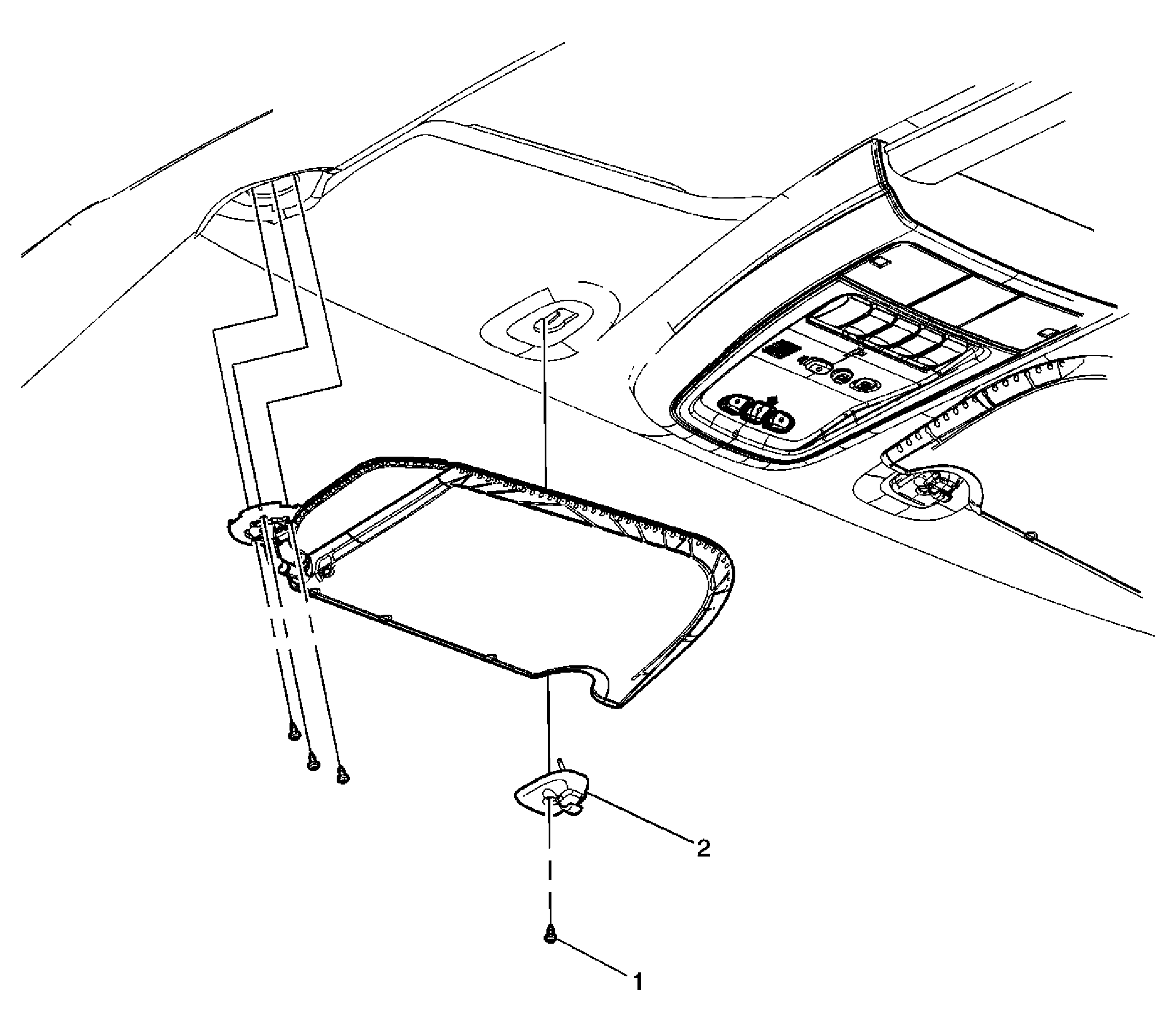

Fig 1: View Of Sunshade Anchor & Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Lower the sunshade assembly and detach from the anchor.
1	Screw, Sunshade Anchor Tighten: 2 N.m (18 lb in)
2	Anchor, Sunshade
