Removal Procedure

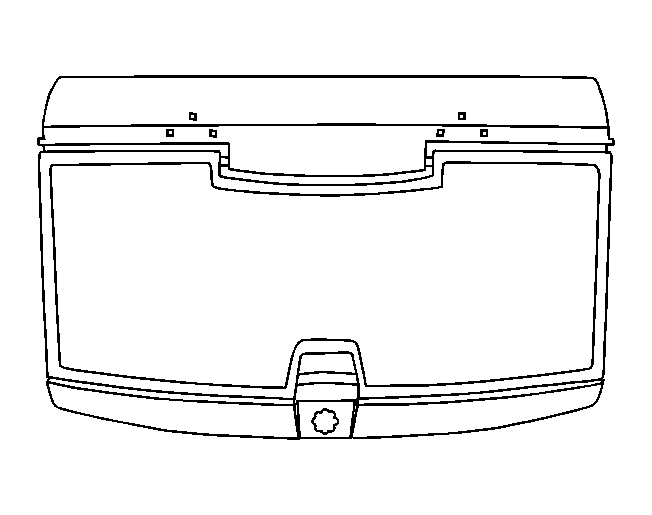

    Fig 1: View Of Rear Storage Compartment
    GM1046070Courtesy of GENERAL MOTORS CORP.
  1. Open the liftgate.
    2. Fig 2: Locating Knob To Release Rear Storage Compartment
    GM1202822Courtesy of GENERAL MOTORS CORP.
  2. Remove the rear storage compartment by turning the knob counterclockwise to release.
  3. Lift up and pull to release the storage compartment from the vehicle.
