Chevrolet
>>
2006
>>
Uplander Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System & Washer System
>>
Schematic and Routing Diagrams
>>
Wiper/Washer System Schematics
Wiper/Washer System Schematics

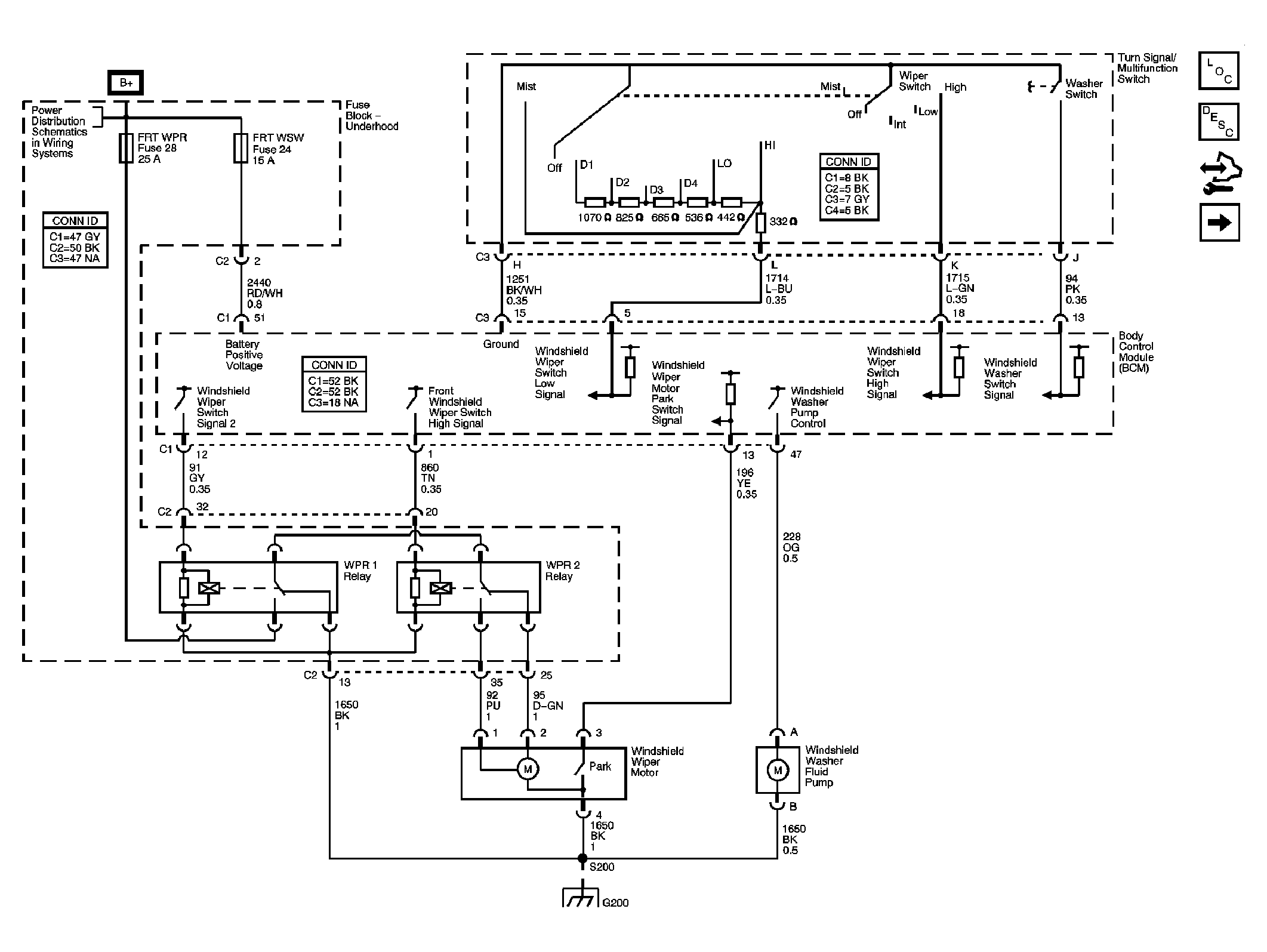

Fig 1: Front Schematic
Courtesy of GENERAL MOTORS CORP.

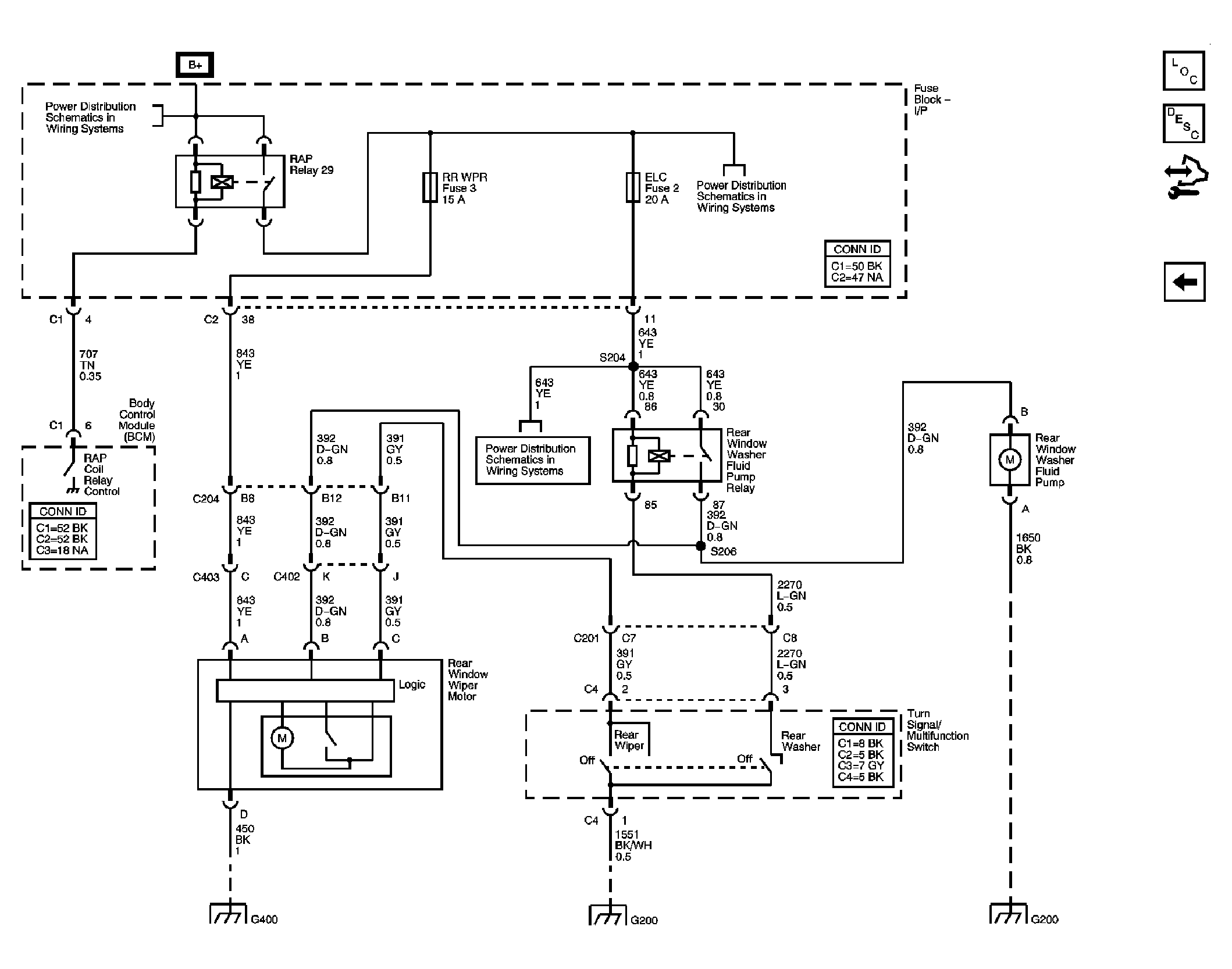

Fig 2: Rear Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
