Installation Procedure

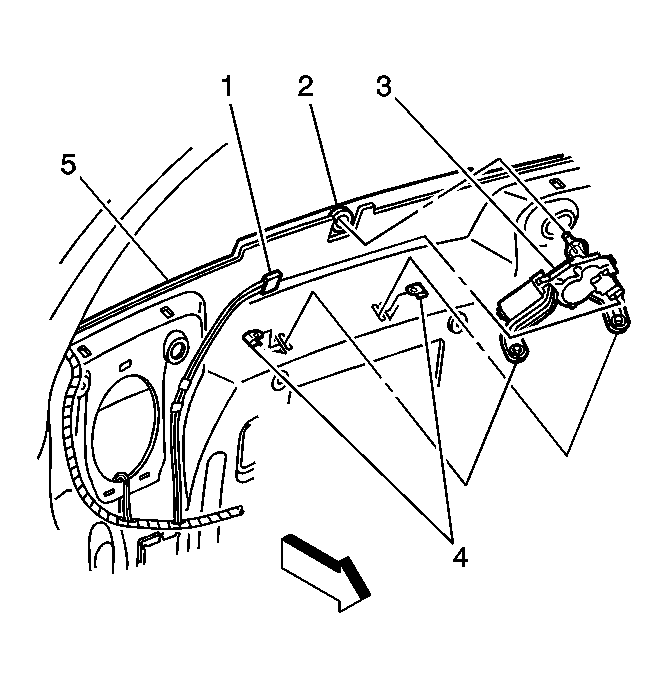

    Fig 1: Identifying Rear Wiper Assembly Components
    GM1480120Courtesy of GENERAL MOTORS CORP.
  1. Position the rear wiper motor (3) to the liftgate.
    2. NOTE: Refer to Fastener Notice .
  2. Install the rear wiper motor screws.

    Tighten:  Tighten the screws to 6 N.m (53 lb in).

  3. Connect the electrical connector (1) to the wiper motor.

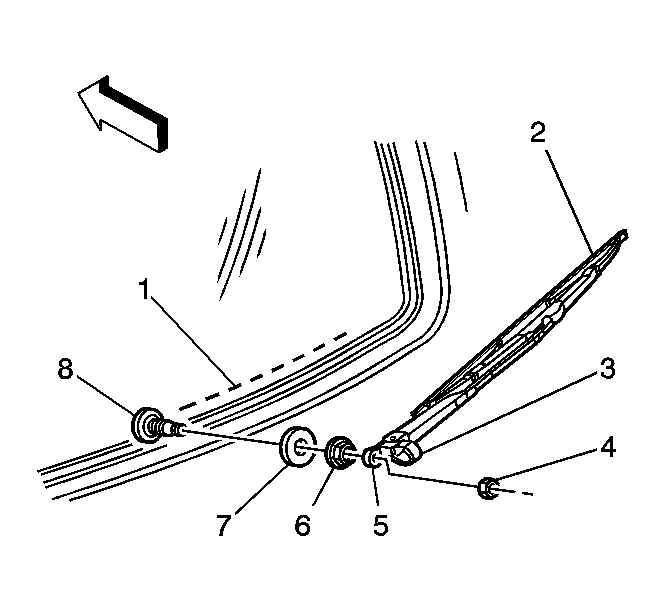

    4. Fig 2: Identifying Rear Wiper Assembly
    GM1480116Courtesy of GENERAL MOTORS CORP.
  4. Install the washer (7) and seal (8) onto the rear wiper motor drive shaft.
  5. Install the rear wiper motor drive shaft nut (6).

    Tighten:  Tighten the nut to 6 N.m (53 lb in).

  6. Install the rear wiper arm. Refer to Wiper Arm Replacement - Rear .
  7. Inspect rear wiper for proper operation.
  8. Install the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate .
