Removal Procedure

    Fig 1: Removing/Installing Wiper Arm
    GM1480118Courtesy of GENERAL MOTORS CORP.
  1. Open and support the hood.
  2. Disconnect the washer hose from the front washer pump hose (5).
  3. Remove the wiper arm nut cover (3).
  4. Remove the wiper arm nut (4).

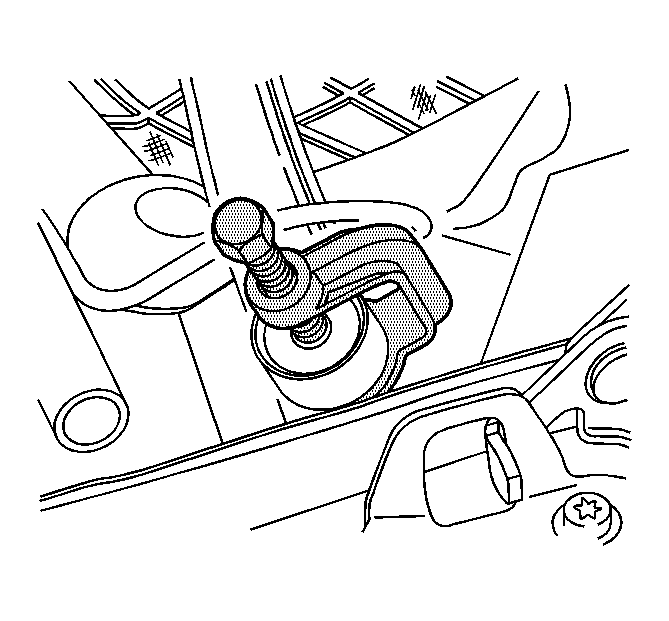

    5. Fig 2: Removing Wiper Arm From Wiper Drive System Module
    GM1527651Courtesy of GENERAL MOTORS CORP.
  5. Using the J 39637  , remove the wiper arm from the wiper drive system module. See Special Tools .
    6. Fig 3: Removing & Installing Wiper Blade At Wiper Arm Hook
    GM497492Courtesy of GENERAL MOTORS CORP.
  6. Remove the wiper blade from the wiper arm connection.
