Power Window Schematics
Power Window Schematics

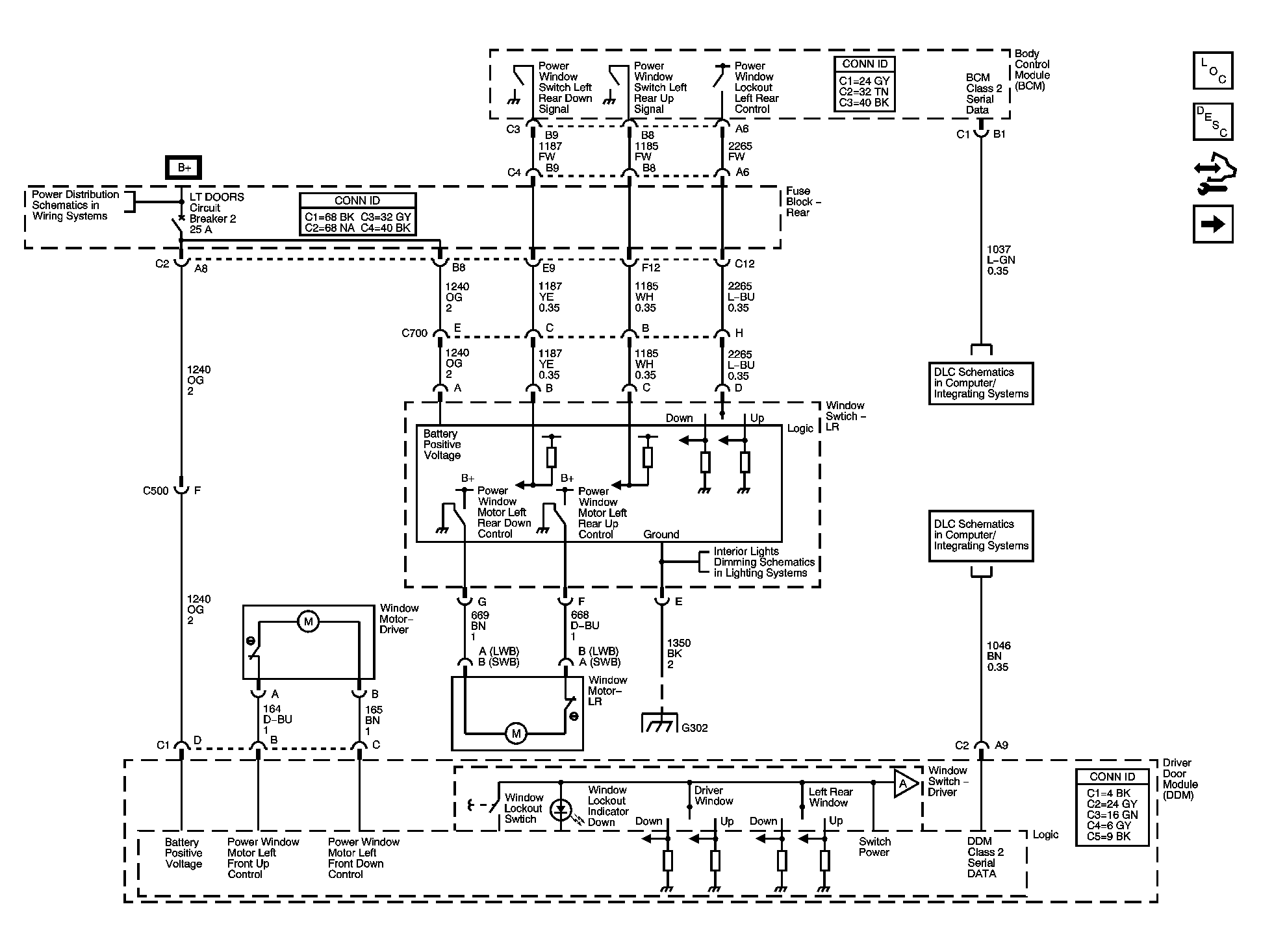

Fig 1: Power Windows - Left Wiring Diagram
Courtesy of GENERAL MOTORS CORP.

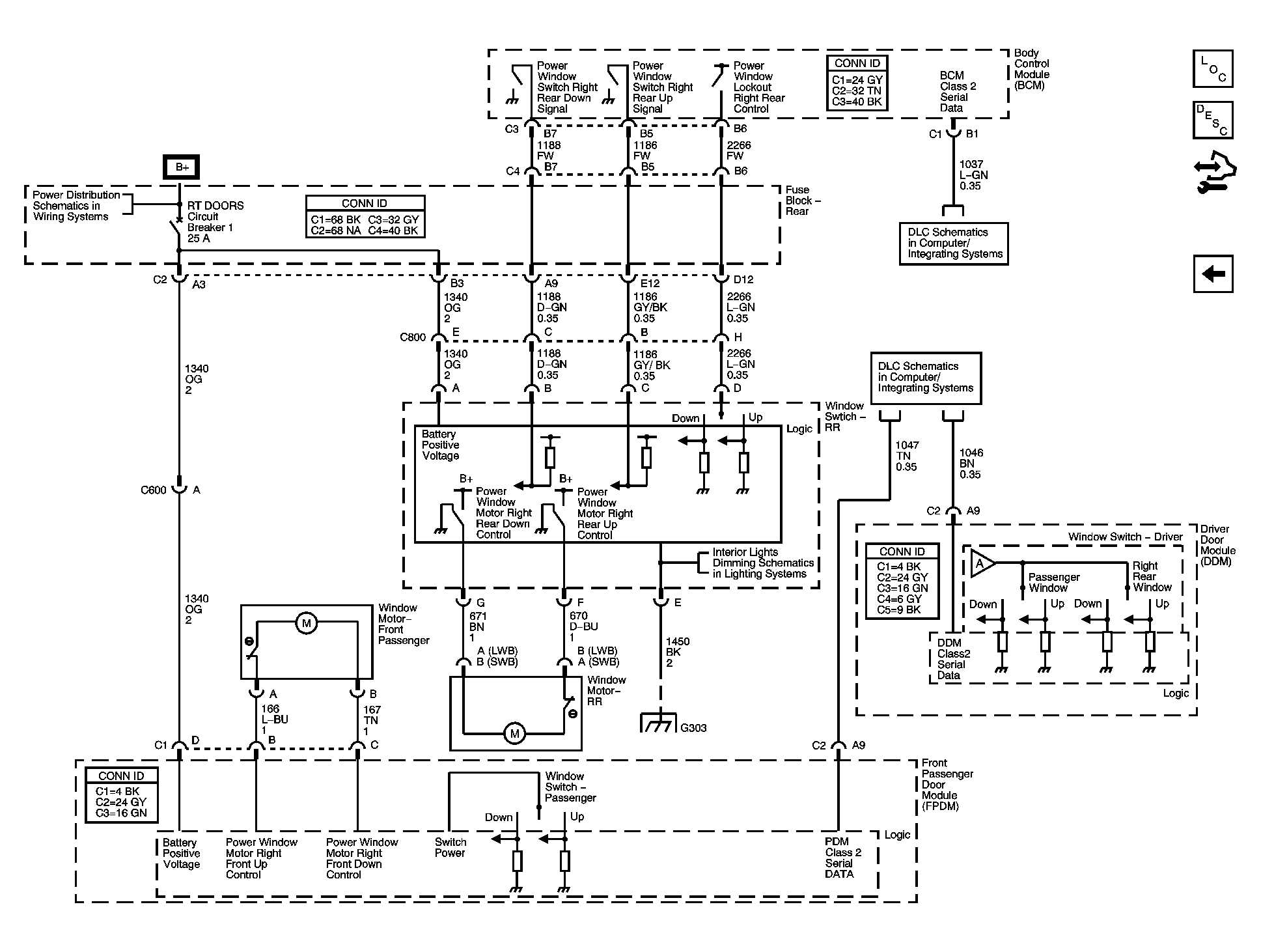

Fig 2: Power Windows - Right Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
