Installation Procedure

  1. Remove the caps from the system openings.
  2. Install the compressor hose assembly.

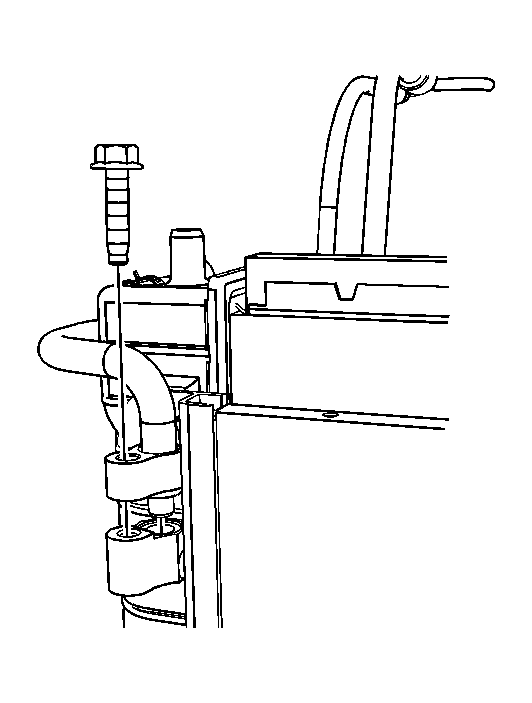

    3. Fig 1: Identifying A/C Compressor Line to Condenser Bolt
    GM1237792Courtesy of GENERAL MOTORS CORP.
  3. Install the compressor hose to the condenser using new sealing washers. Refer to Sealing Washer Replacement .
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the compressor hose bolt to the condenser.

    Tighten:  Tighten the bolt to 16 N.m (12 lb ft).

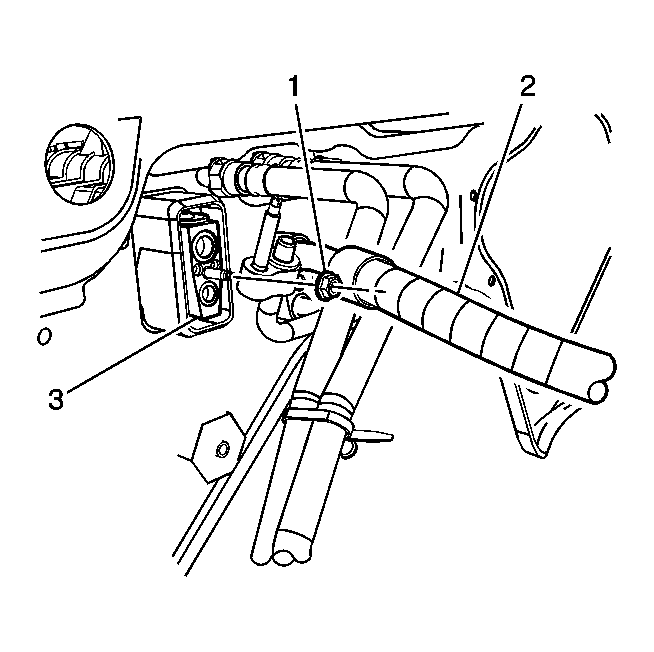

    5. Fig 2: Identifying Compressor Hose, Retaining Nut, & Thermal Expansion Valve
    GM1235498Courtesy of GENERAL MOTORS CORP.
  5. Install the compressor hose (2) to the TXV (3) using new sealing washers. Refer to Sealing Washer Replacement .
  6. Install the nut (1) to the TXV.

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

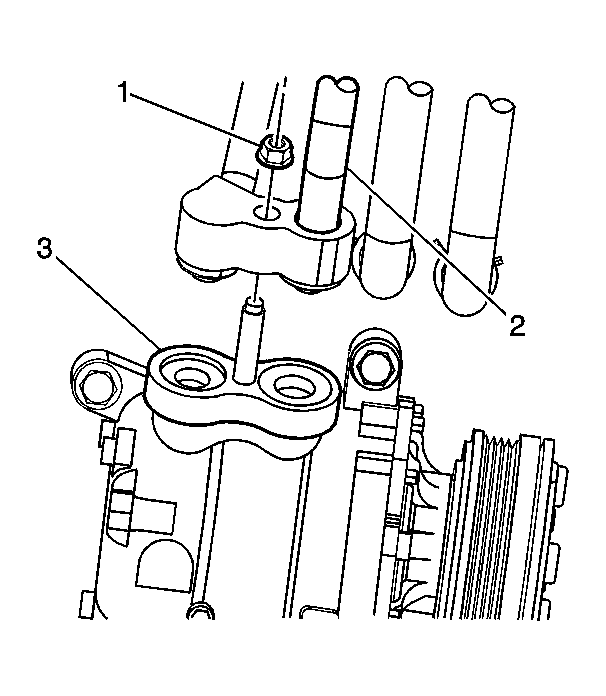

    7. Fig 3: Identifying A/C Compressor, & Hose Mounting Nut
    GM1235504Courtesy of GENERAL MOTORS CORP.
  7. Install the compressor hose (2) to the A/C compressor (3) using new sealing washers. Refer to Sealing Washer Replacement .
  8. Install the compressor hose nut (1).

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

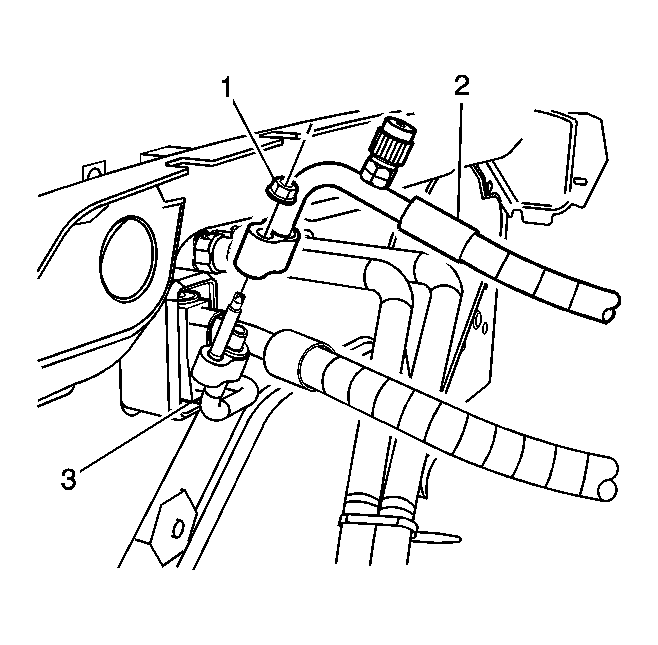

    9. Fig 4: Identifying A/C Compressor Line To TXV Nut
    GM1235502Courtesy of GENERAL MOTORS CORP.
  9. Install the A/C liquid line at the TXV.

    Tighten:  Tighten the nut to 16 N.m (12 lb ft).

  10. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  11. Leak test the fittings of the component using the J 39400-A  . See Special Tools .
  12. Install the upper radiator outlet tank seal.
  13. Install the radiator support. Refer to Radiator Support Replacement .
