Instrument Panel Insulator Panel Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

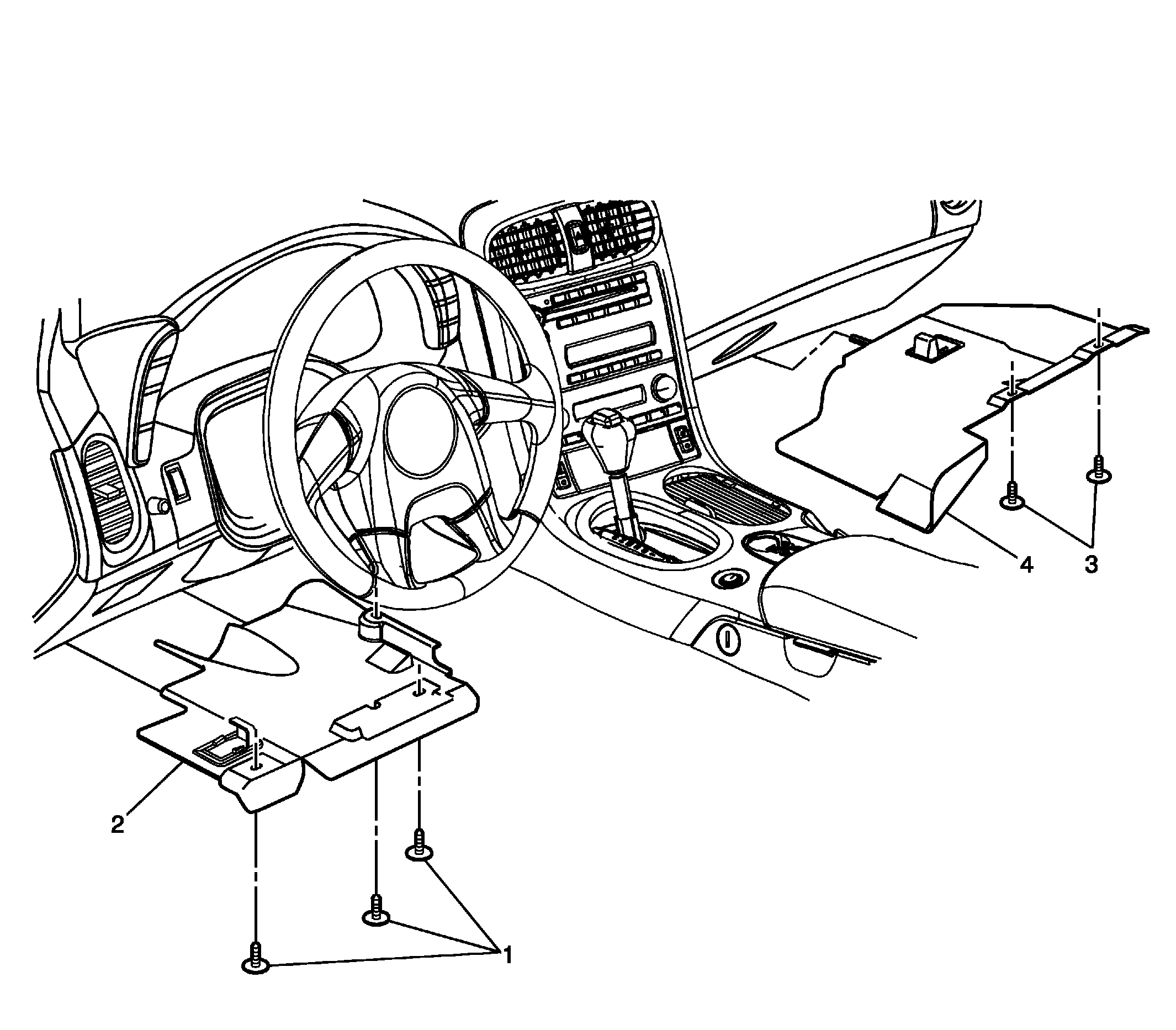

Fig 1: Closeout/Insulator Panel - Instrument Panel (I/P) Lower
GM1480498Courtesy of GENERAL MOTORS CORP.
Instrument Panel Insulator Panel Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Instrument Panel Insulator - Left
1 Retainer, Panel Assembly - Instrument Panel Insulator (Qty: 3)
2 Panel Assembly, Instrument Panel Insulator - Left
Instrument Panel Insulator - Right
3 Retainer, Panel Assembly - Instrument Panel Insulator (Qty: 2)
4 Panel Assembly, Instrument Panel Insulator - Right
