Instrument Panel Compartment Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

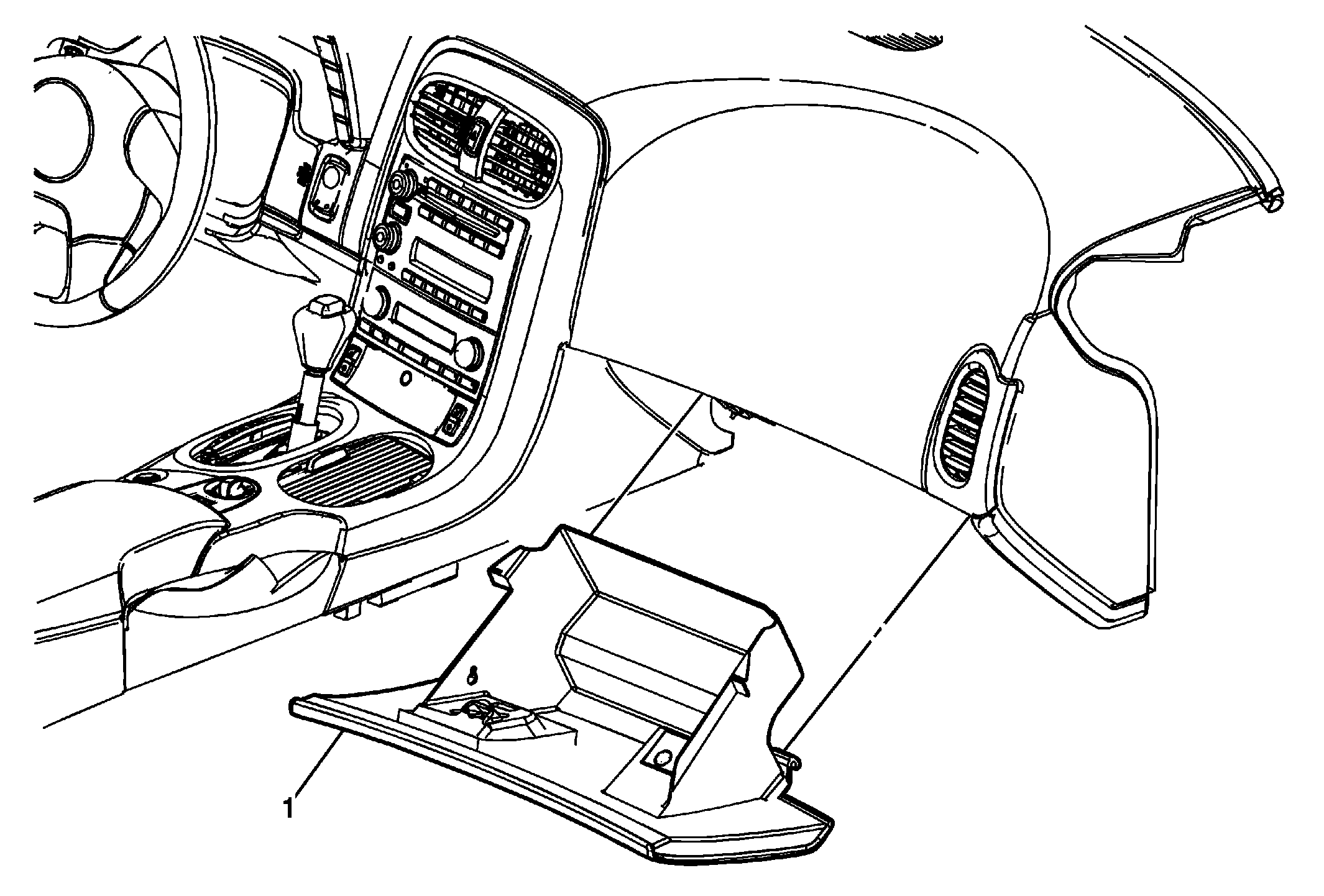

Fig 1: Compartment - Instrument Panel (I/P)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Instrument Panel Compartment Assembly
1	Compartment Assembly - Instrument Panel Tip: Open the instrument panel compartment. Squeeze the sides of the compartment drawer and pull the compartment open past the stops. Disconnect the electrical connections to the compartment. Lift the compartment assembly from the compartment hinge.
Instrument Panel Compartment Trim Plate
1	Compartment Assembly - Instrument Panel
2	Screw, Instrument Panel Compartment Trim Plate Assembly (Qty: 3) Tighten: 2 N.m (18 lb in)
3	Plate Assembly - Instrument Panel Compartment Trim
4	Clip, Instrument Panel Compartment Trim Plate (Qty: 2)
Instrument Panel Compartment Striker
5	Screws, Instrument Panel Compartment Striker (Qty: 4)
6	Striker, Instrument Panel Compartment
Instrument Panel Compartment Bumper
7	Bumper, Instrument Panel Compartment
Instrument Panel Compartment Handle Assembly
8	Bolt, Instrument Panel Compartment Handle Assembly (Qty: 2)
9	Handle Assembly - Instrument Panel Compartment
Instrument Panel Compartment Handle Lock Assembly
10	Lock Assembly - Instrument Panel Compartment Handle Tip: Insert a small pointed tool into the lock release hole. Pull the lock assembly from the instrument panel compartment handle.
Instrument Panel Compartment Stop Bumpers
11	Stop Bumper, Instrument Panel Compartment
Instrument Panel Compartment Lamp Assembly
12	Lamp Assembly, Instrument Panel Compartment Tip: Open the instrument panel compartment. Use a flat-bladed tool in order to release the lamp assembly from the instrument panel compartment trim plate. Disconnect the electrical connection.
