Instrument Panel Dimmer Switch Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

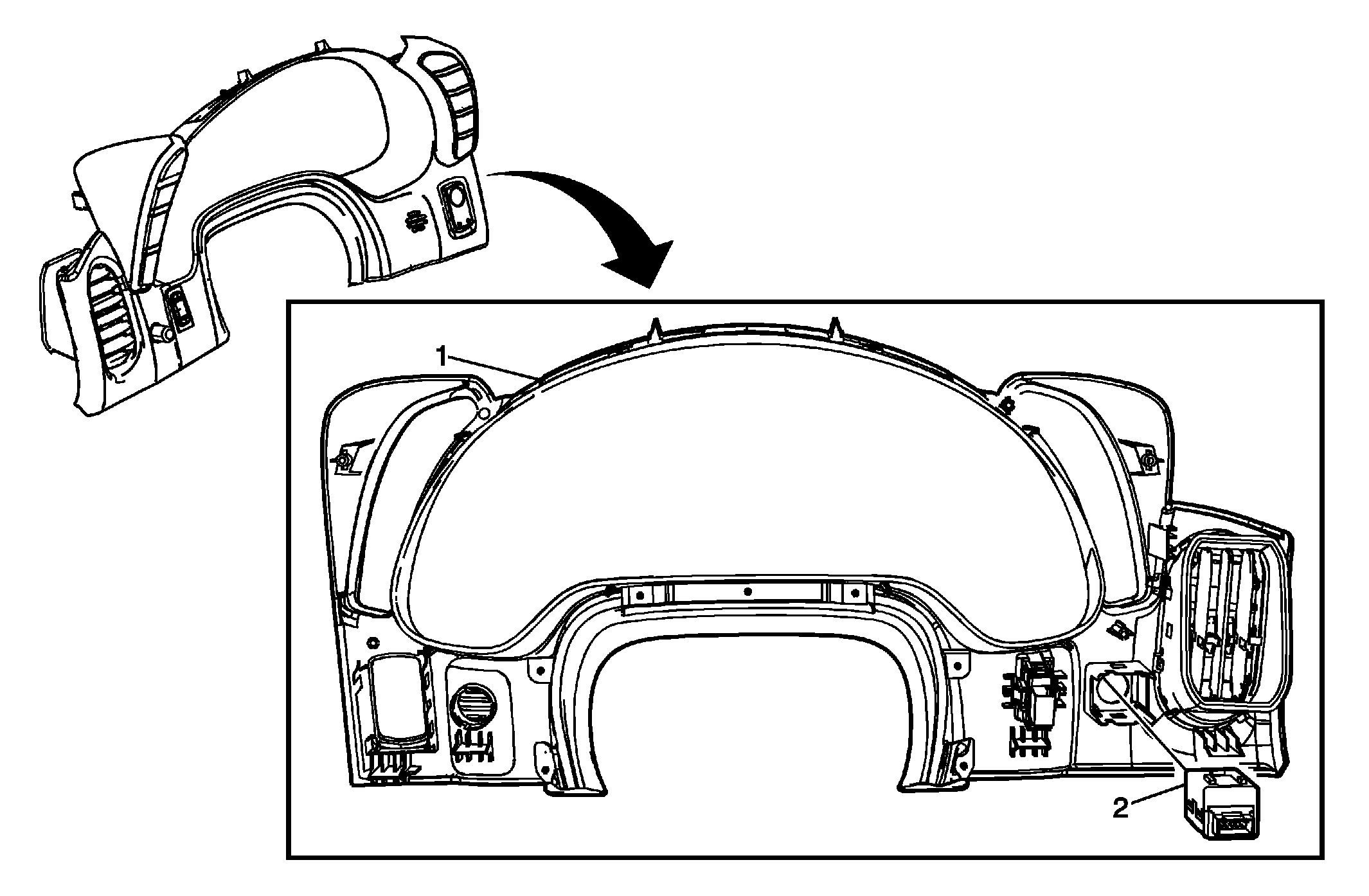

Fig 1: View Of Instrument Panel (I/P) Accessory Trim Plate & Dimmer Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Accessory Trim Plate Refer to Instrument Panel Accessory Trim Plate Replacement .
2	Instrument Panel Dimmer Switch Tip: Use a flat-bladed tool in order to release the switch from the trim plate.
