Backup Lamp Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

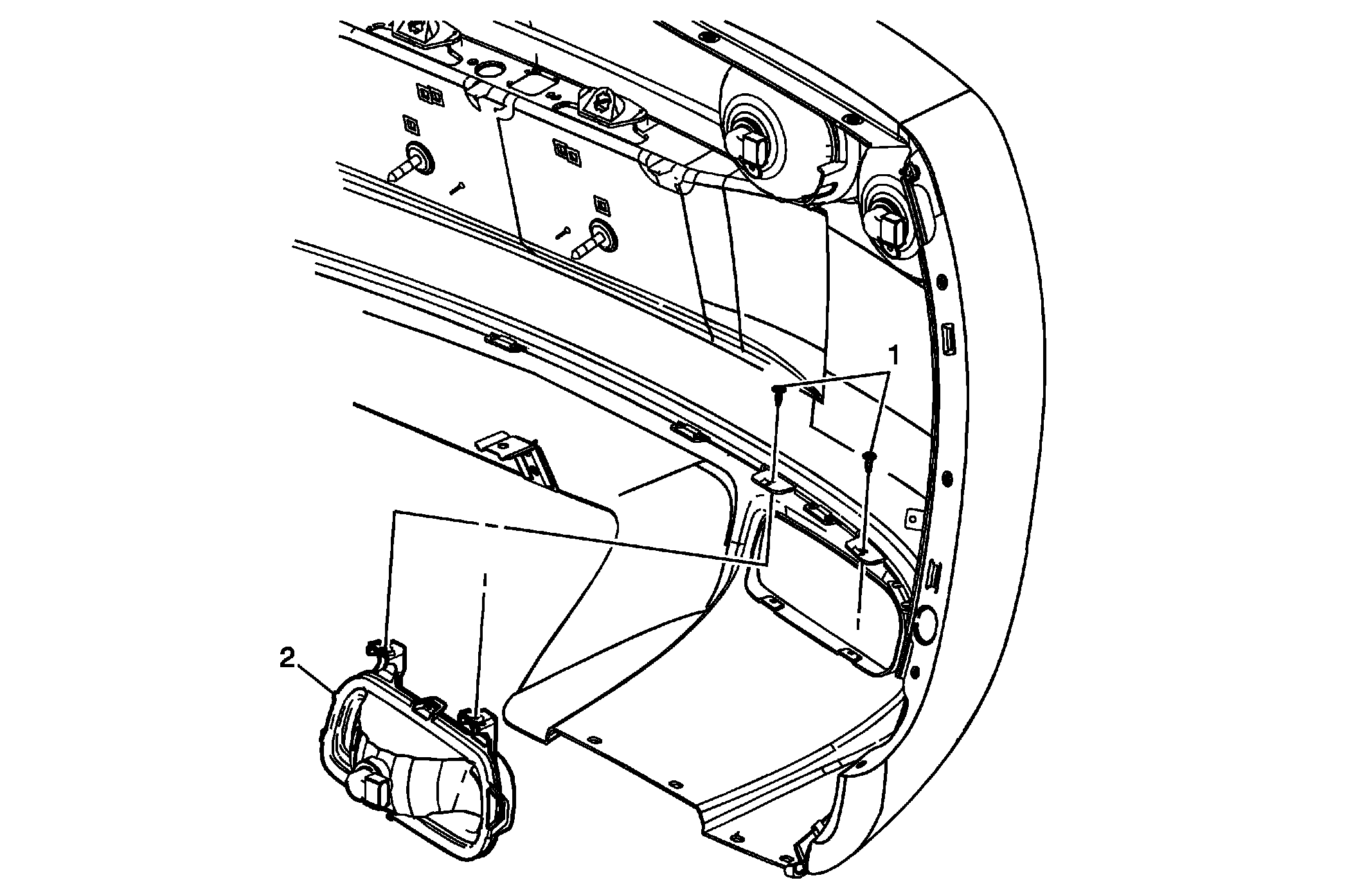

Fig 1: View Of Backup Lamp & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear fascia extension. Refer to Rear Bumper Fascia Extension Replacement .
1	Backup Lamp Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Backup Lamp Tip: Twist the bulb socket and pull inward to replace the bulb.
