Under the Frame Rails - Front: Notes
WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Use only service jacks utilizing 64 mm (21/2 inch) or smaller diameter lifting pads, to reduce the possibility of contact with undesired areas of the vehicle:
The service jack lift pad must not contact the front fenders, or the floor pan.
The service jack lift pad must not contact the front fenders, or the floor pan.

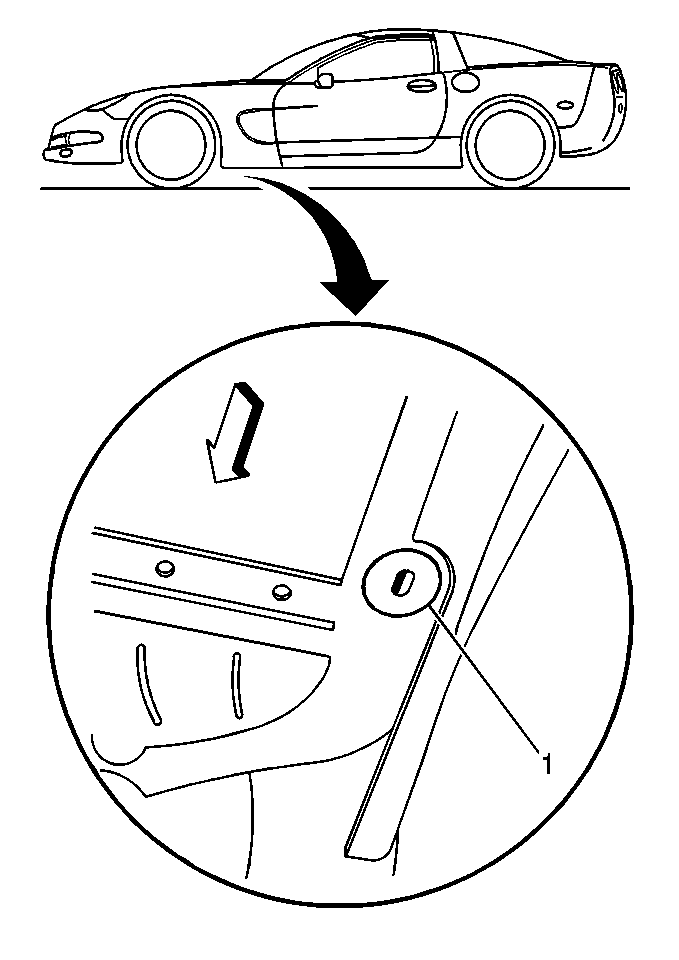

Position the service jack lift pad as follows:
Under the frame rail shipping slot reinforcements (1).
