Fog Lights Schematics

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

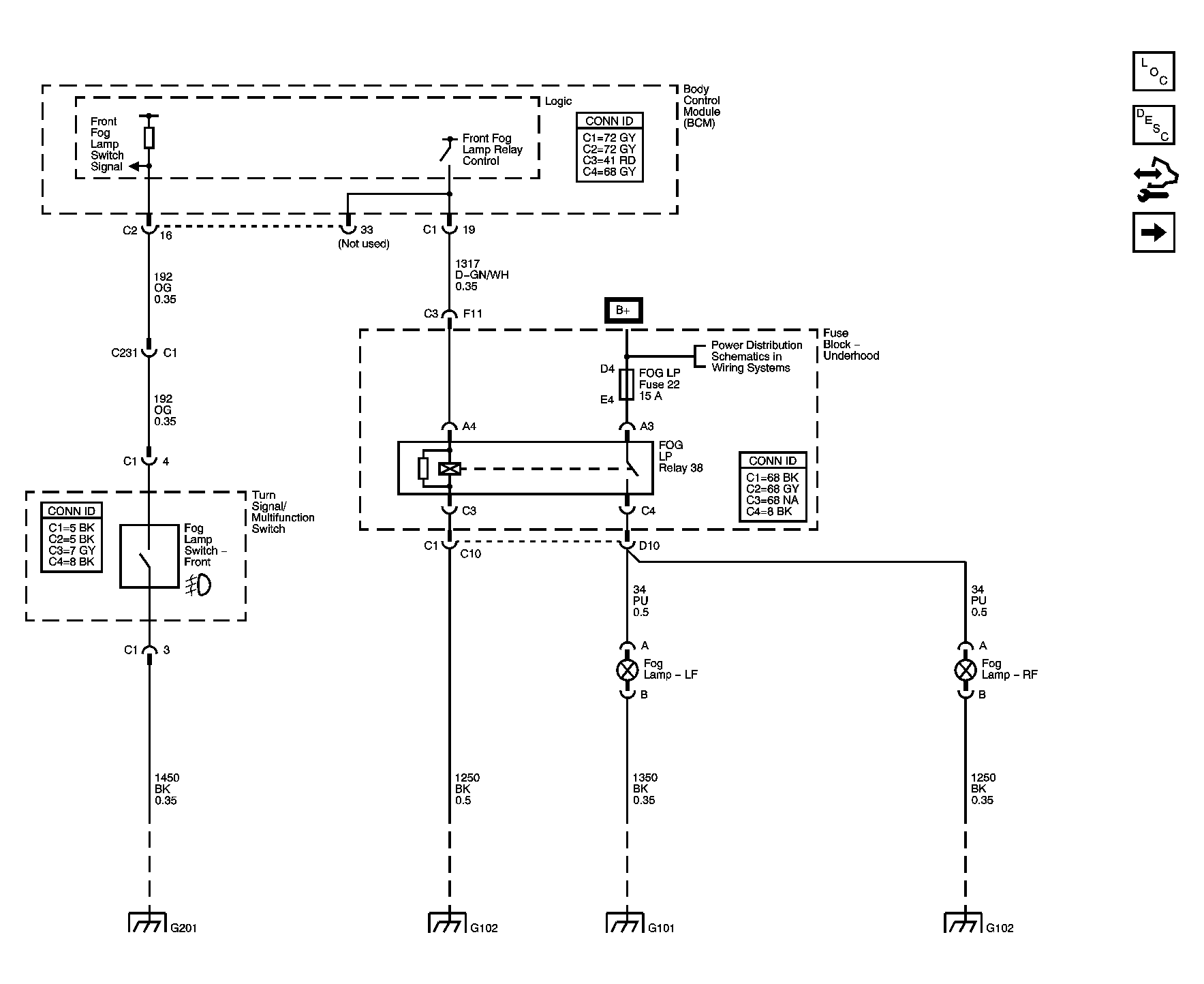

Fig 1: Front - Wiring Diagram
GM1447927Courtesy of GENERAL MOTORS CORP.

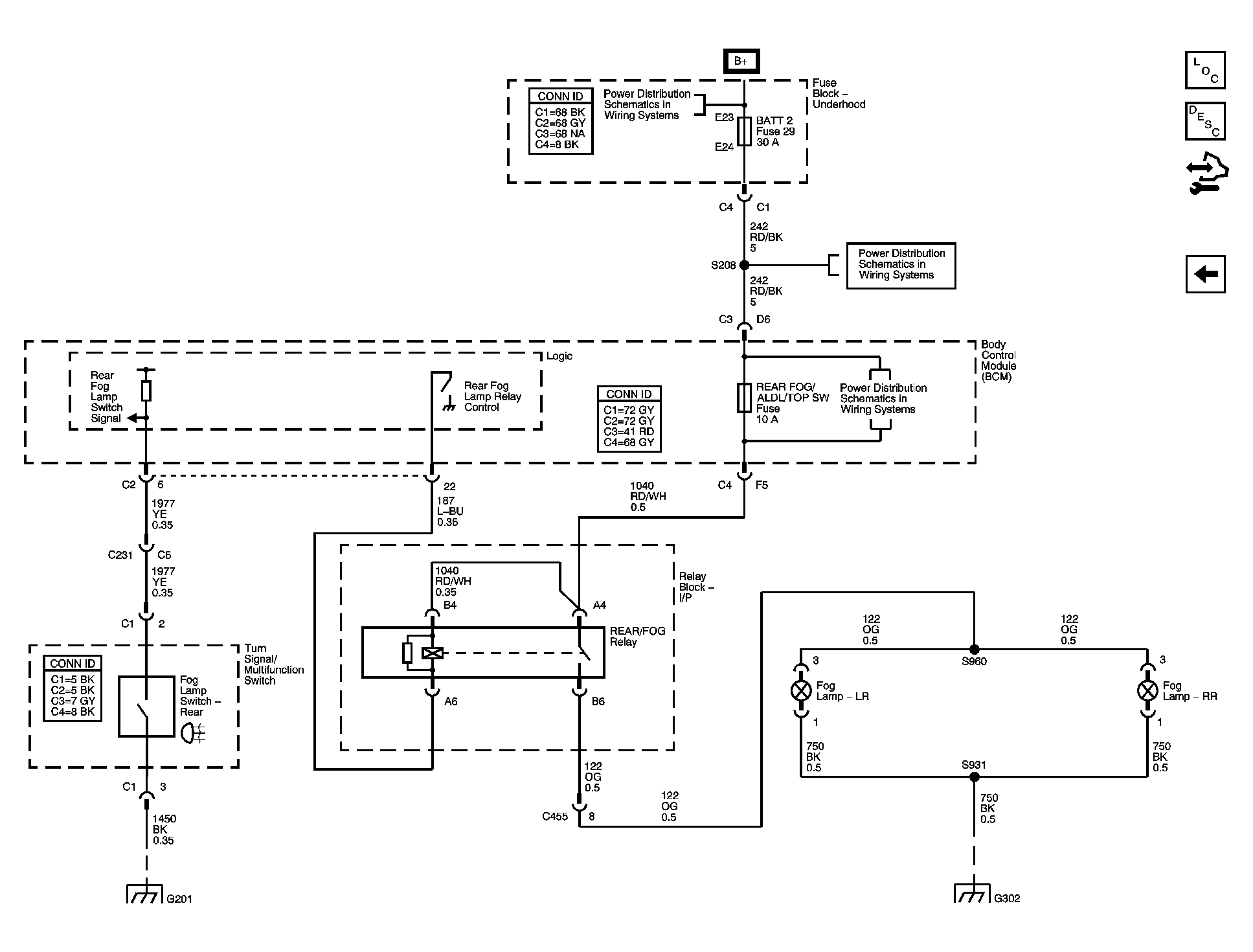

Fig 2: Rear (T79) - Wiring Diagram
GM1447929Courtesy of GENERAL MOTORS CORP.
