Turn Signal Lamp Replacement (Front Side Fender)

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

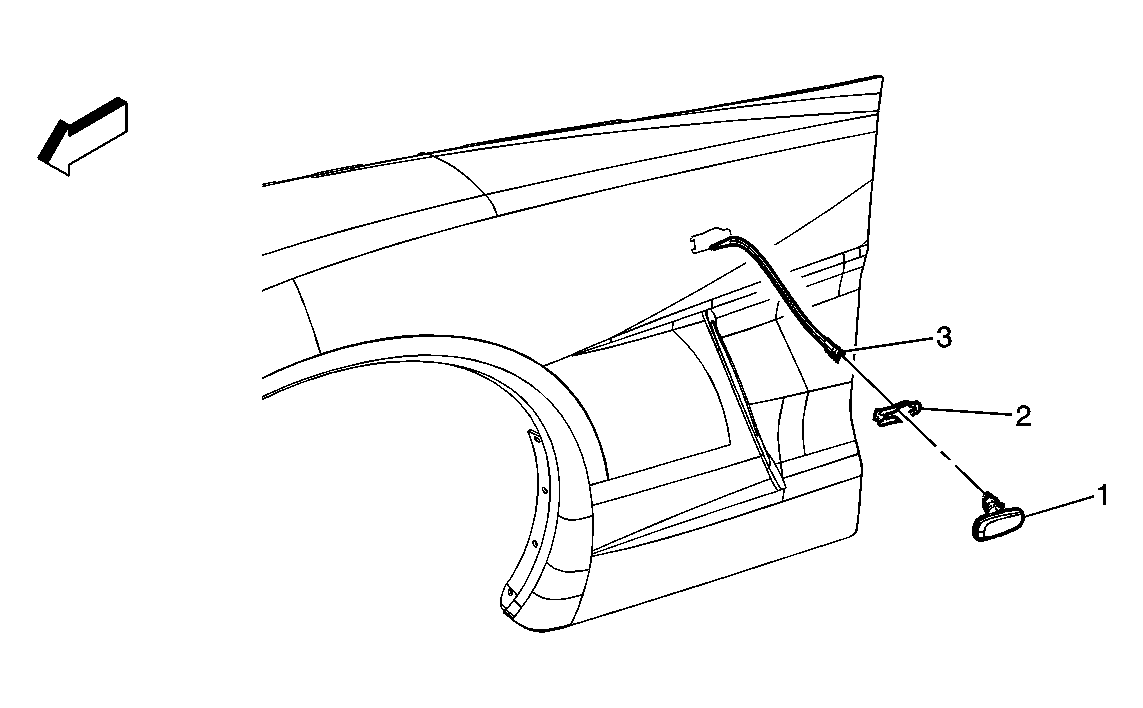

Fig 1: Replacing Turn Signal Lamp (Front Side Fender)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Turn Signal Lamp Assembly Gently pry the lamp rearward from the front fender bracket. Twist lamp socket counterclockwise in order to remove the lamp socket bulb.
2	Front Turn Signal Lamp Bracket
3	Front Turn Signal Lamp Electrical Connector Tip: Disconnect from the turn signal lamp assembly.
