Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

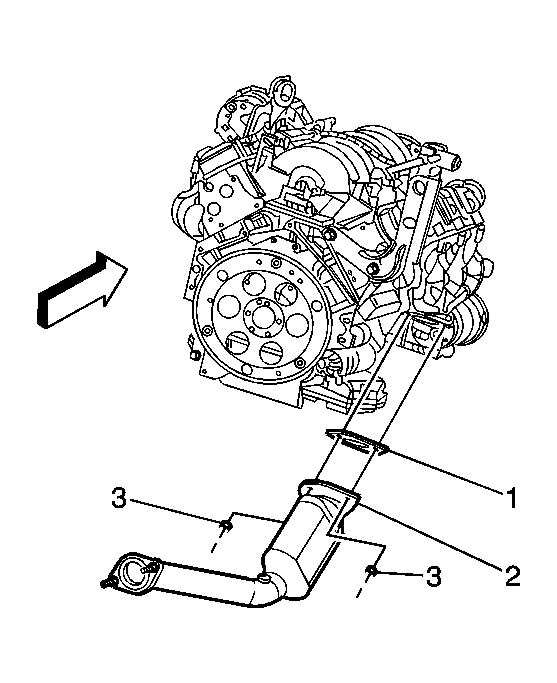

Fig 1: Installing The Mounting Nuts (3) And Gasket (1) And Catalytic Convertor (2) From The Vehicle

Courtesy of GENERAL MOTORS CORP.

Install the NEW exhaust gasket (1) on the catalytic convertor (2).
Position the catalytic convertor (2) on the exhaust manifold.
NOTE: Refer to Fastener Notice .
Install the mounting nuts (3) for the catalytic convertor.
Tighten: Tighten the mounting nuts (3) to 20 N.m (15 lb ft).
Install the oxygen sensors.
- For Bank 2, sensor 1, refer to Heated Oxygen Sensor (HO2S) Replacement Bank 2 Sensor 1 for the 6.0L engine.
- For Bank 2, sensor 1, refer to Heated Oxygen Sensor (HO2S) Replacement Bank 2 Sensor 1 for the 7.0L engine.
- For Bank 2, sensor 2, refer to Heated Oxygen Sensor (HO2S) Replacement Bank 2 Sensor 2 for the 6.0L engine.
- For Bank 2, sensor 2, refer to Heated Oxygen Sensor (HO2S) Replacement Bank 2 Sensor 2 for the 7.0L engine.
Install the intermediate pipes. Refer to Intermediate Pipe Replacement .
Lower the vehicle.
