Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

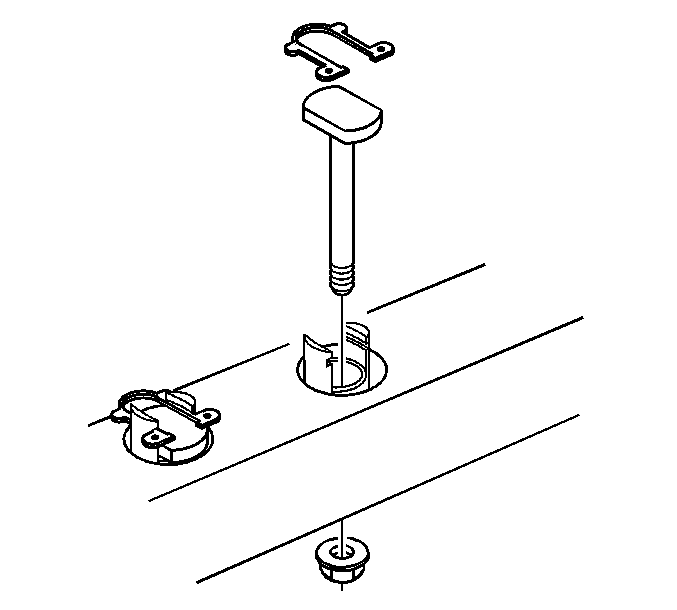

Fig 1: View Of Crossmember Bolt & Spring Clip - Front
GM800588Courtesy of GENERAL MOTORS CORP.
IMPORTANT: Verify that you have selected a bolt of the proper length.
  1. Install the crossmember bolt.
  2. Use snap ring pliers to install the spring clip.

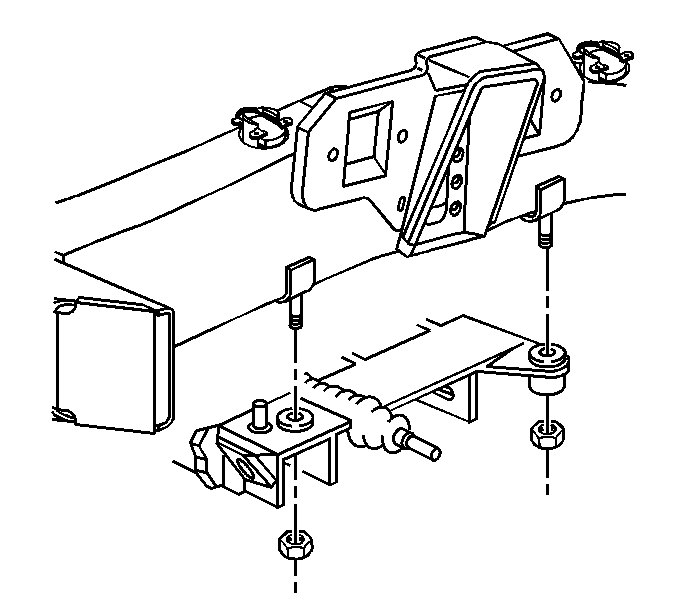

    3. Fig 2: View of Crossmember Nut & Bolt - Front
    GM800590Courtesy of GENERAL MOTORS CORP.
  3. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install a new nut to the crossmember bolt and tighten the nut with hand tools.

    Tighten:  Tighten the nut to 110 N.m (81 lb ft).

  5. Lower the vehicle.
  6. Install the battery heat shield, if necessary. Refer to Battery Heat Shield Replacement in Engine Electrical.
