Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

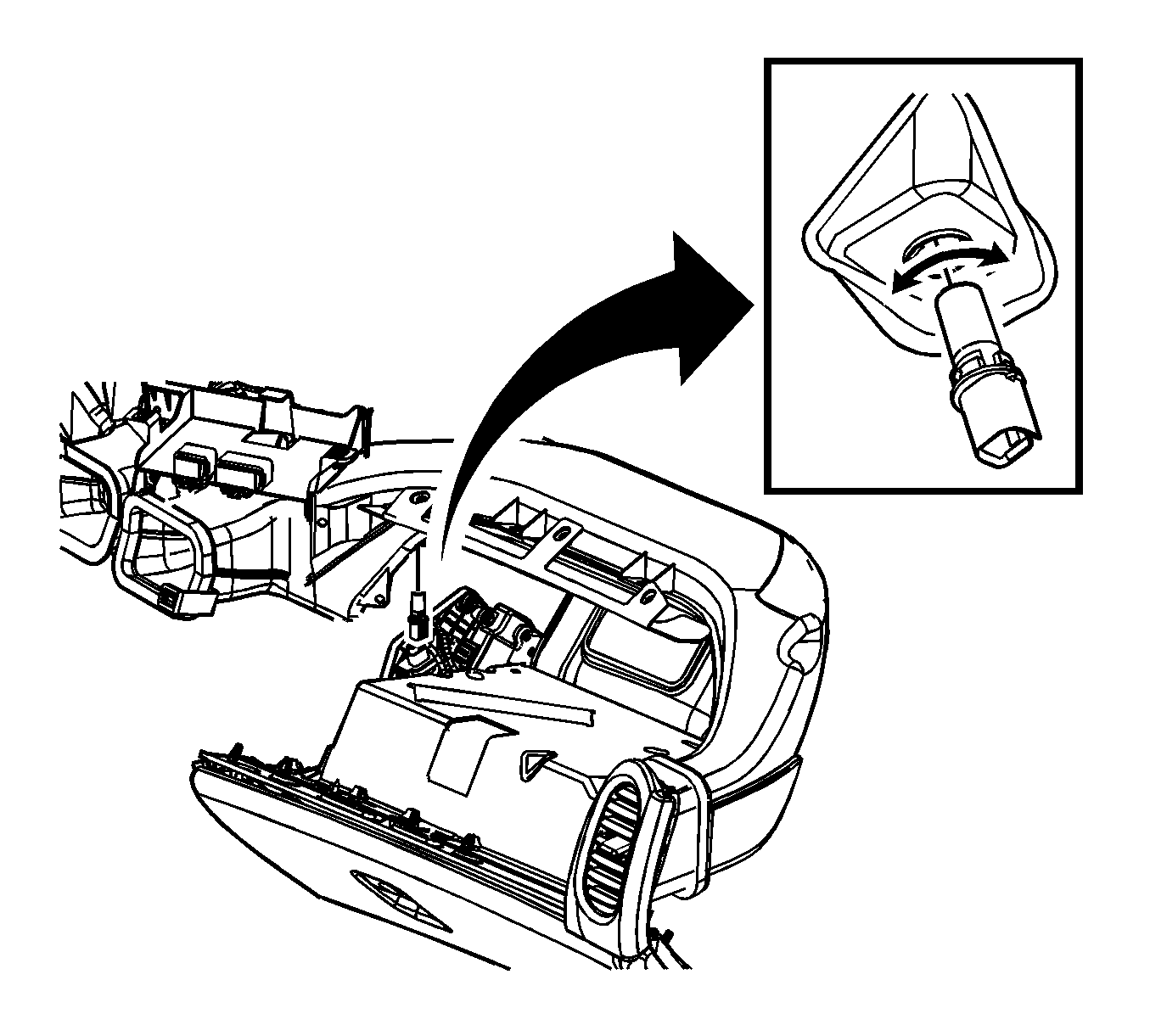

    Fig 1: Installing The Right Upper Air Temperature Sensor To The Air Distribution Duct
    GM1530708Courtesy of GENERAL MOTORS CORP.
  1. Install the right upper air temperature sensor to the air distribution duct.

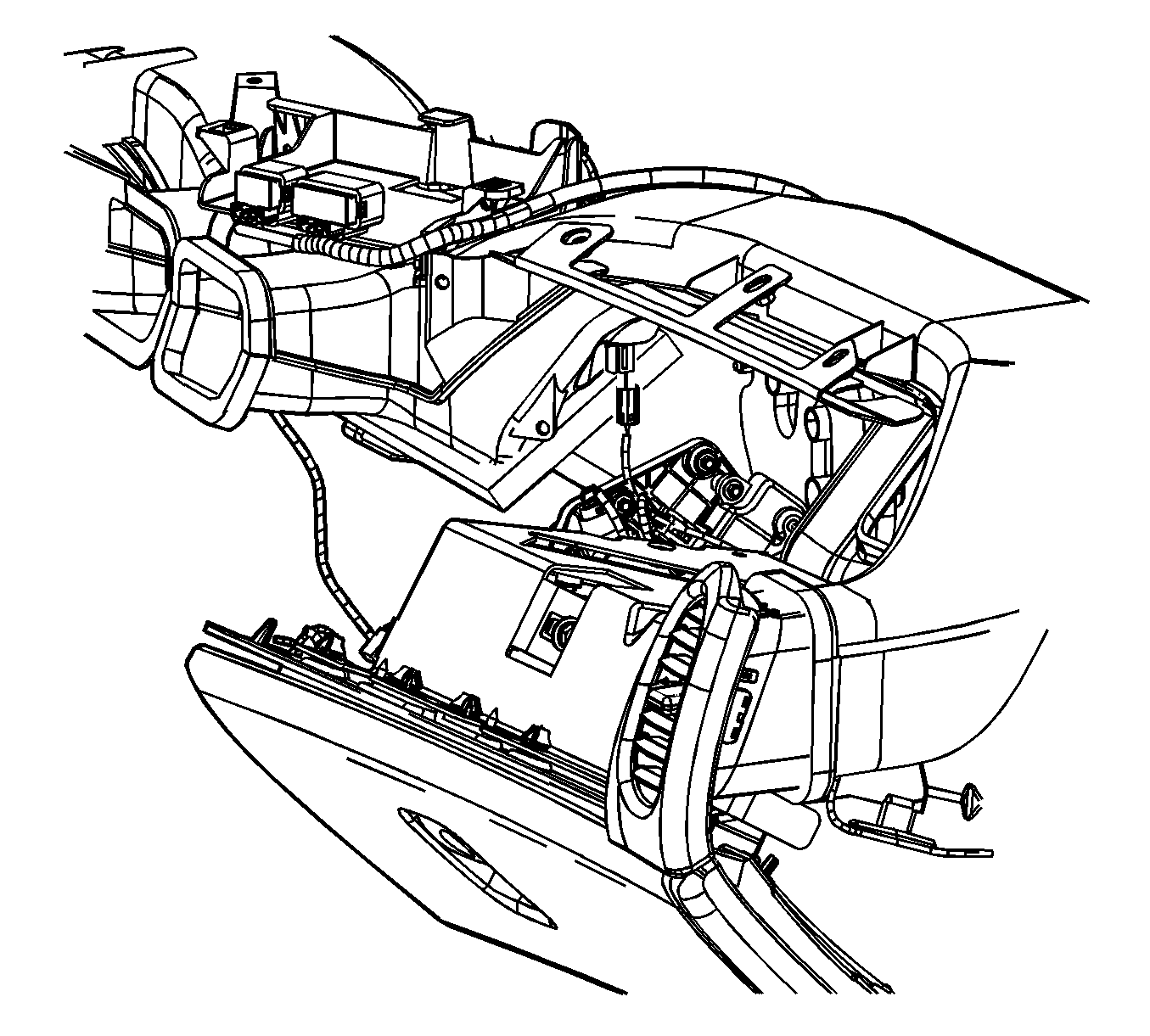

    2. Fig 2: Installing The I/P Assembly
    GM1530707Courtesy of GENERAL MOTORS CORP.
  2. Connect the right upper air temperature sensor electrical connector.
  3. Install the I/P assembly. Refer to Instrument Panel (I/P) Assembly Replacement in Instrument Panel, Gages and Console.
