Cupholder Replacement
WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Cupholder Replacement

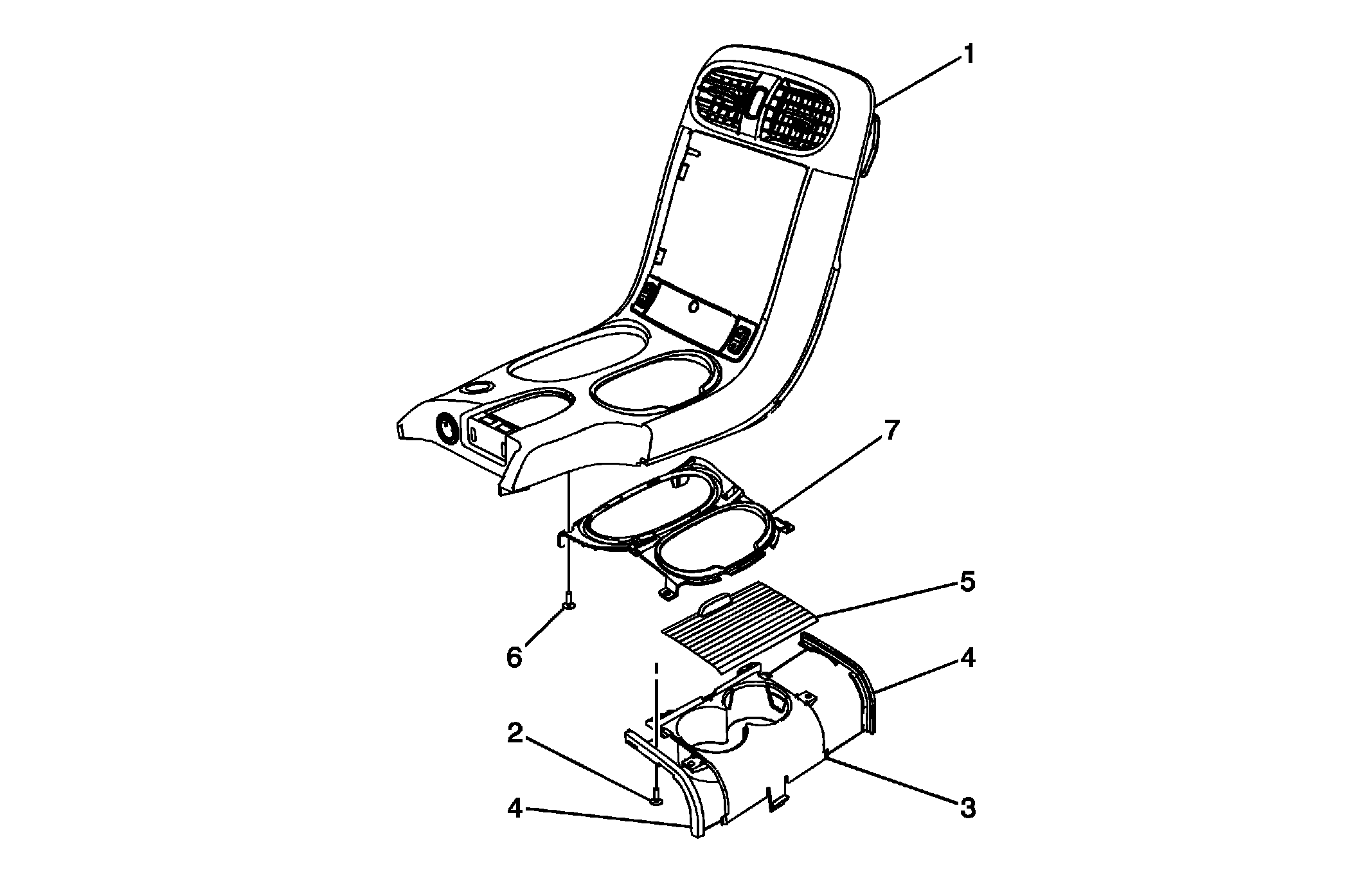

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Plate Assembly, Instrument Panel Accessory Trim Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory . |
| 2 | Screw, Cupholder (Qty: 4) Tighten: 2 N.m (18 lb in) |
| 3 | Cupholder, Center Console |
| 4 | Guide, Center Console Cupholder (Qty: 2) |
| 5 | Door, Center Console Cupholder |
| 6 | Screw, Center Console Cupholder Bezel (Qty: 4) Tighten: 2 N.m (18 lb in) |
| 7 | Bezel, Center Cupholder |
