Removal Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

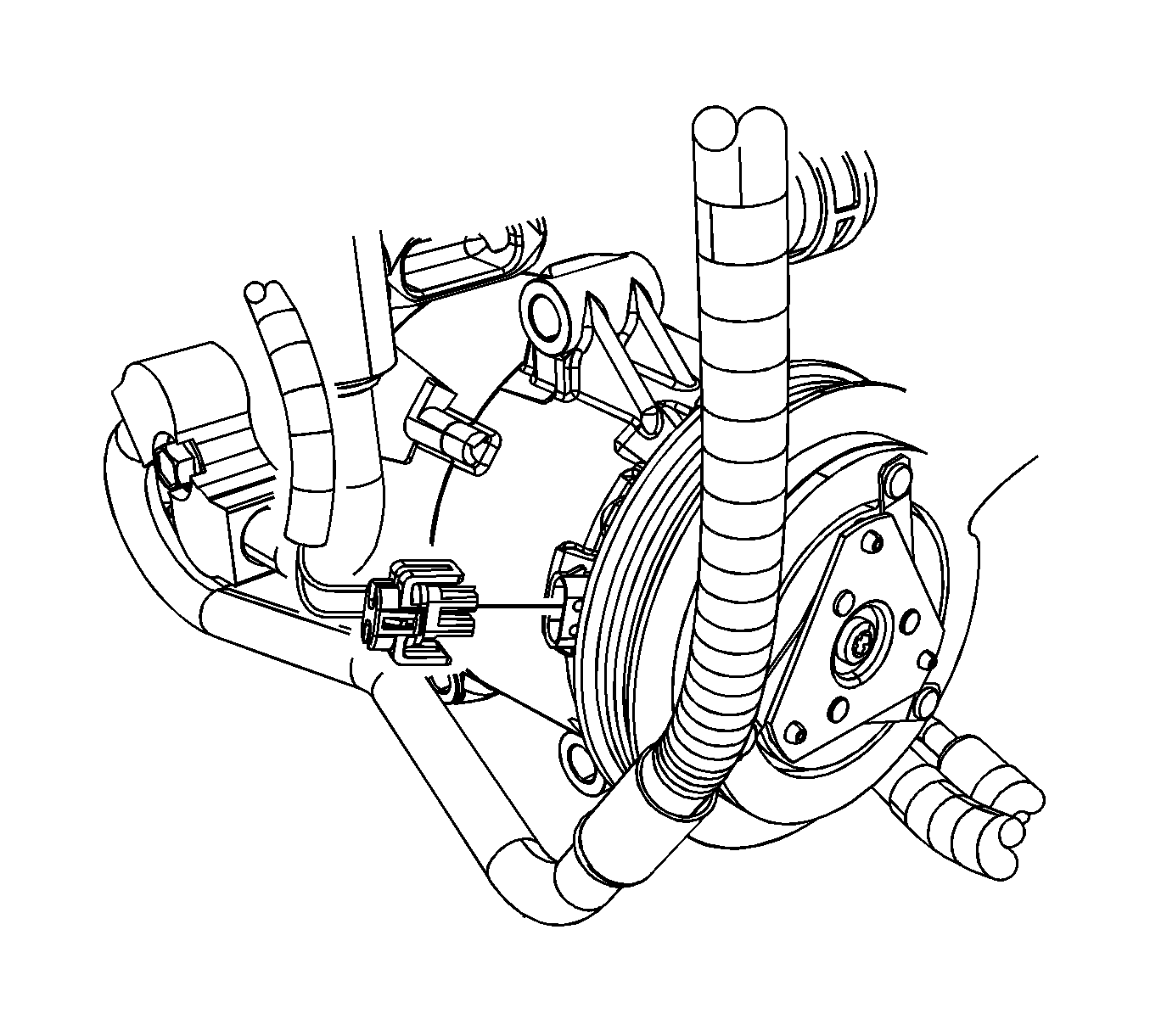

Fig 1: Removing The A/C Drive Belt
GM1488913Courtesy of GENERAL MOTORS CORP.
  1. Recover the refrigerant from the A/C System. Refer to Refrigerant Recovery and Recharging .
  2. Remove the A/C drive belt. Refer to Drive Belt Replacement - Air Conditioning in Engine Mechanical - 6.0L.
  3. Remove the A/C compressor hose assembly from the A/C compressor. Refer to Compressor Hose Assembly Replacement .
  4. Lower the front suspension crossmember, refer to Crossmember Replacement - Front Suspension in Frame and Underbody.
  5. Disconnect the A/C compressor electrical connector.

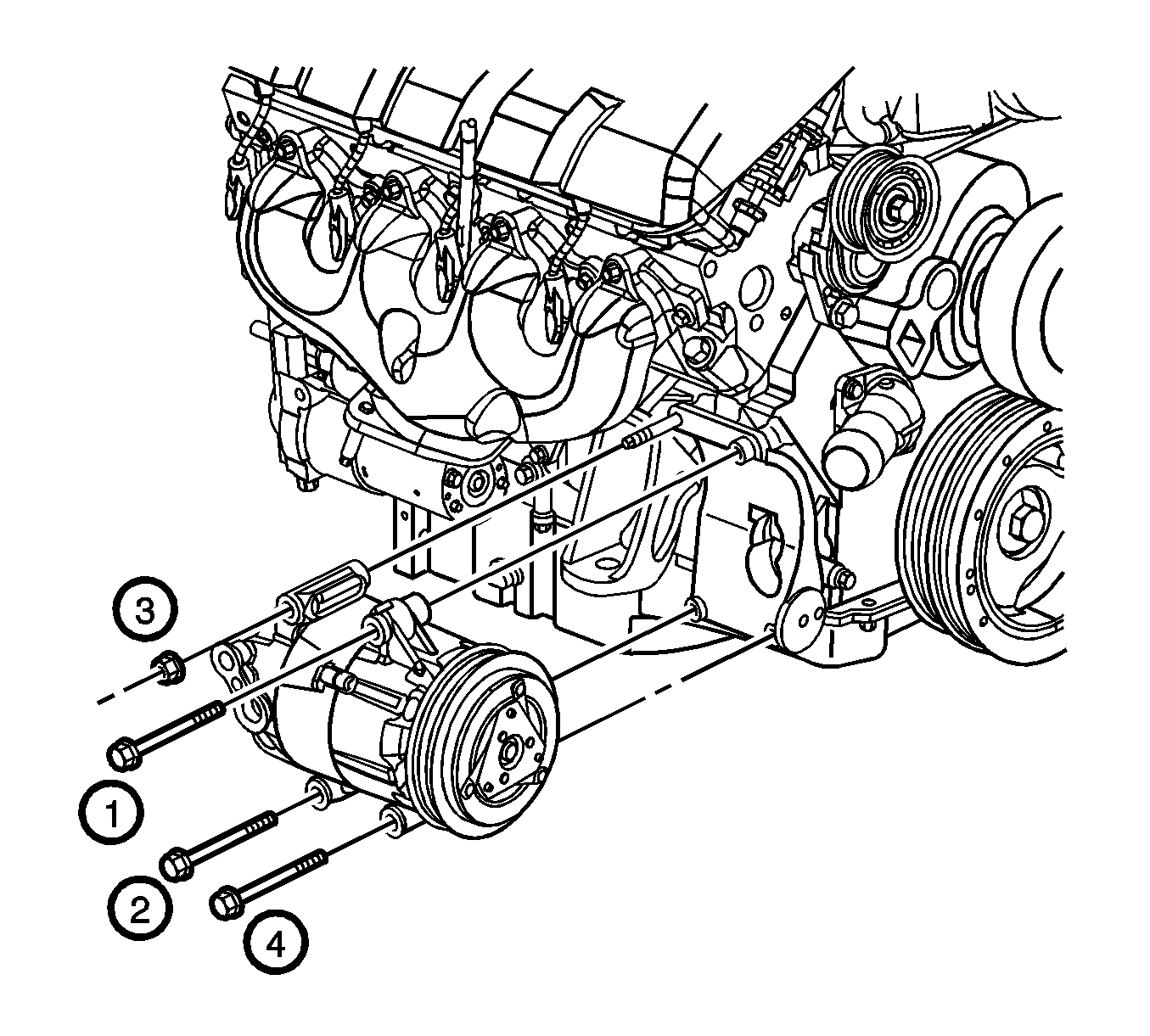

    6. Fig 2: Removing The A/C Compressor Mounting Bolts
    GM1480170Courtesy of GENERAL MOTORS CORP.
  6. Remove the A/C compressor mounting bolts (1, 2, 4).
  7. Remove the A/C compressor mounting nut 3.
  8. Remove the A/C compressor from the vehicle.
    IMPORTANT: Replacement A/C compressors are charged with polyalkylene glycol (PAG) oil. Refer to Refrigerant System Capacities .
  9. If replacing the A/C compressor, balance the compressor. Refer to Compressor Oil Balancing .
