Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cap or tape from the A/C compressor high pressure relief valve port.

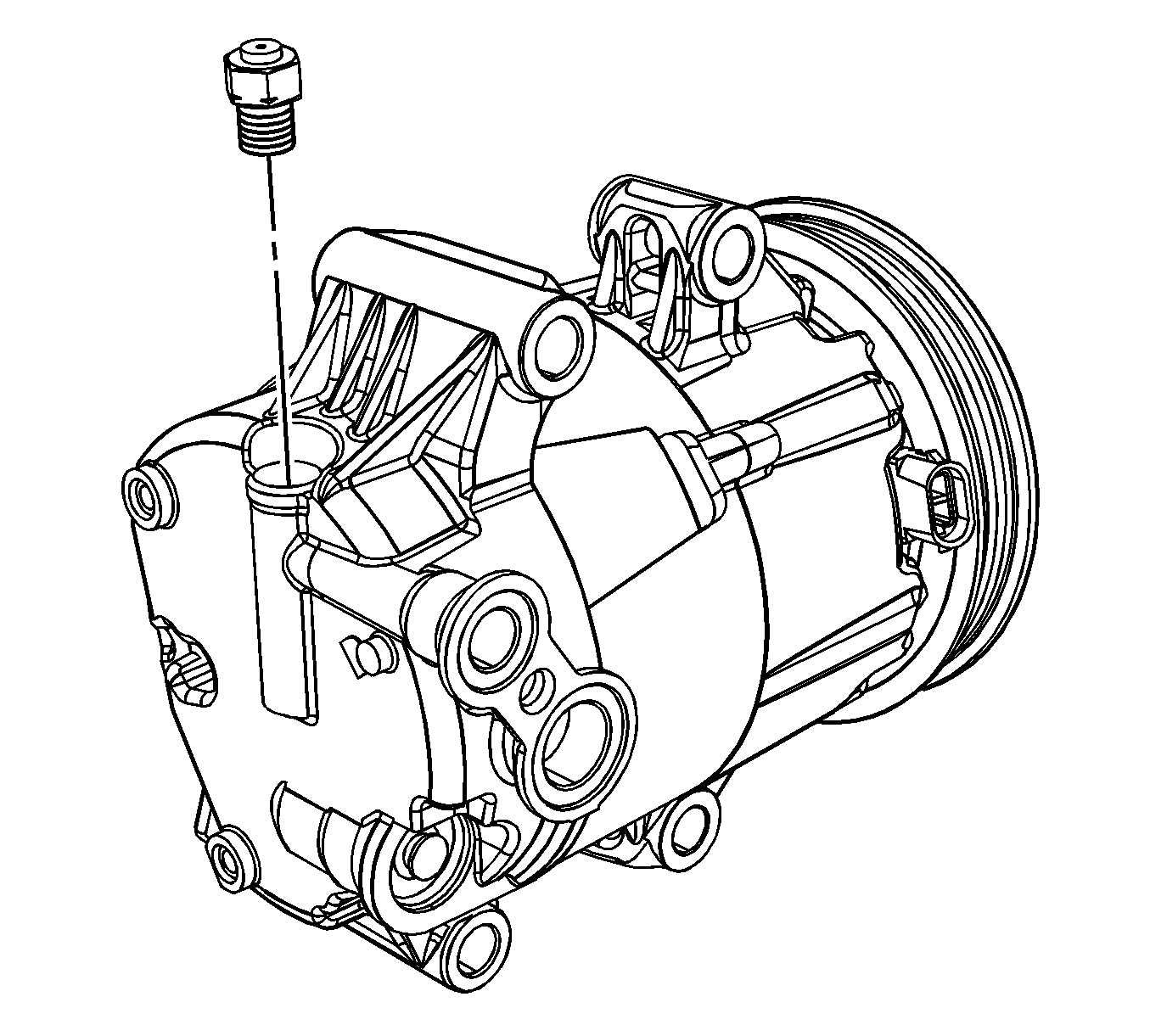

    Fig 1: Installing The High Pressure Relief Valve
    GM1480182Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the high pressure relief valve.

    Tighten:  Tighten the valve to 8 N.m (70 lb in).

  3. Remove the RH tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  4. Evacuate and recharge the refrigerant system. Refer to Refrigerant Recovery and Recharging .
  5. Leak test the fittings of the component using J 39400-A  . See Special Tools .
