Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

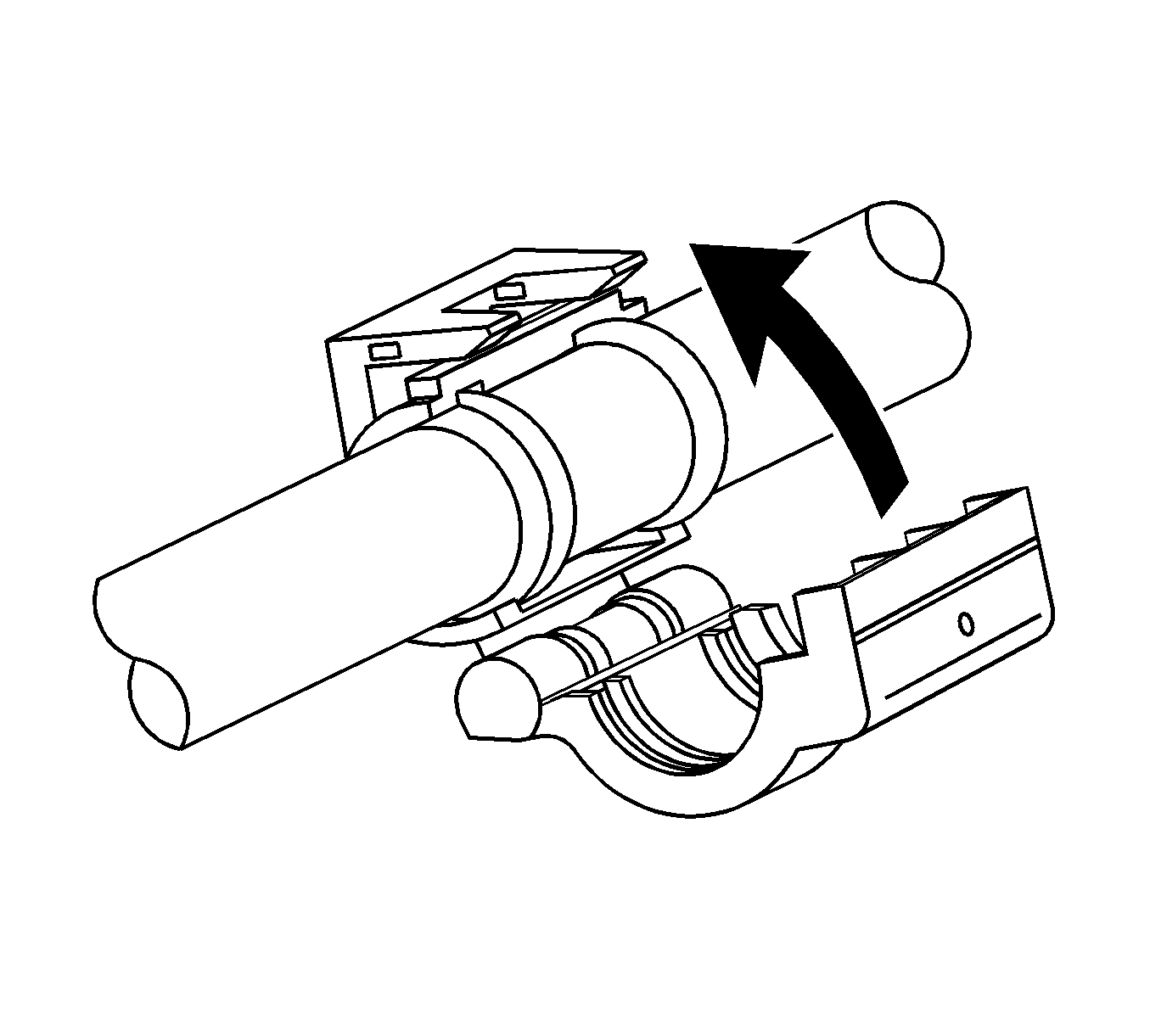

Fig 1: Installing A/C Coupling Assembly
GM1066683Courtesy of GENERAL MOTORS CORP.
IMPORTANT: Inspect the A/C coupling assembly locking tabs for damage or wear. Replace the A/C coupler assembly if any conditions exist.
  1. Install the A/C coupling assembly to the A/C refrigerant component.
    IMPORTANT: Ensure that the A/C coupling assembly is latched securely to the A/C refrigerant component.
  2. Close the A/C coupling assembly.
  3. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  4. Leak test the fittings of the component using J 39400-A  . See Special Tools .
