Removal Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door sill plate. Refer to Door Sill Plate Replacement .
  2. Position the seat fully forward.

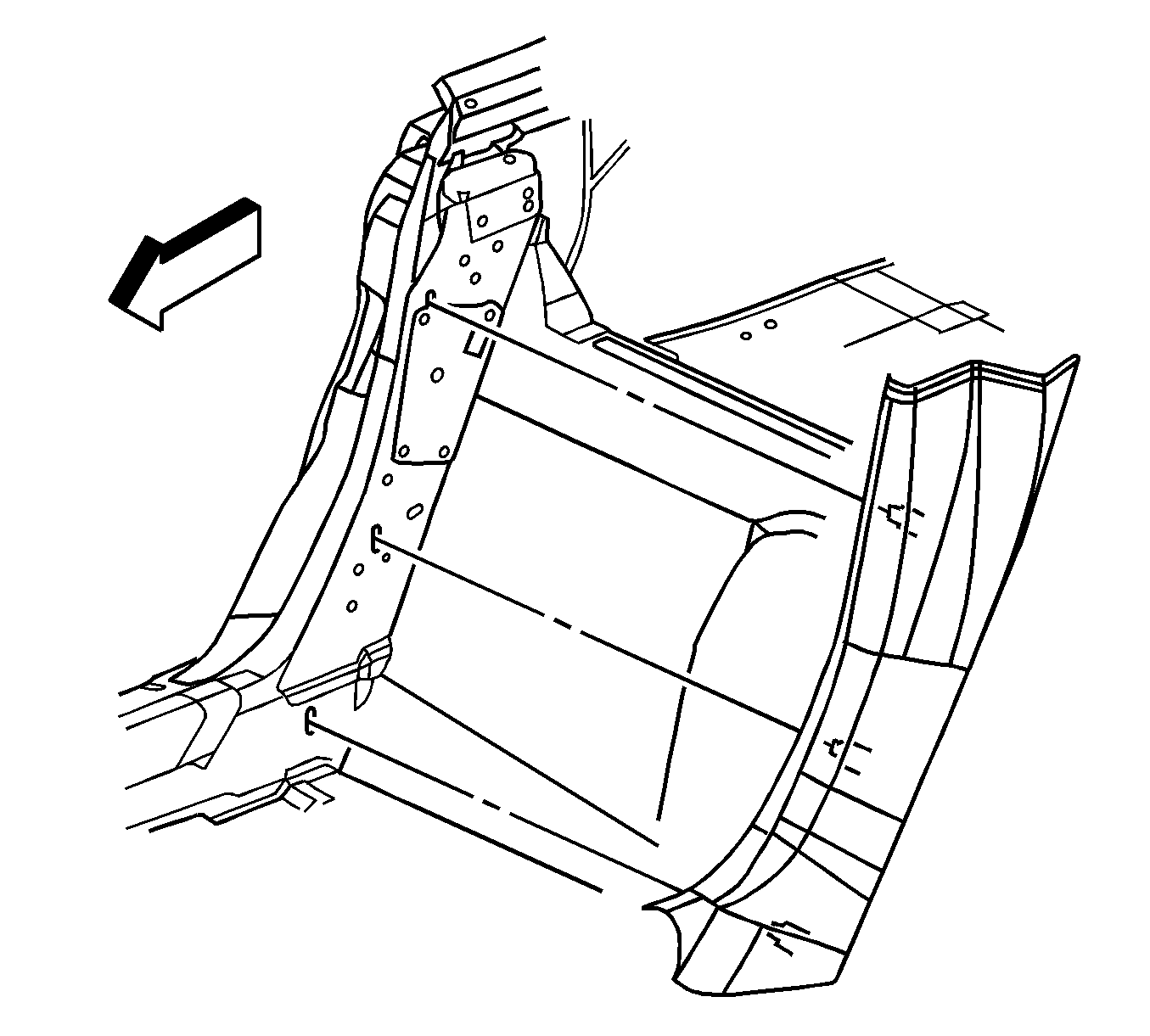

    3. Fig 1: View Of Lock Pillar Trim
    GM1297878Courtesy of GENERAL MOTORS CORP.
  3. Remove the lock pillar trim by grasping the trim panel at the bottom and working upward to disengage the retainers from the body.
  4. Remove the lock pillar trim.
