Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

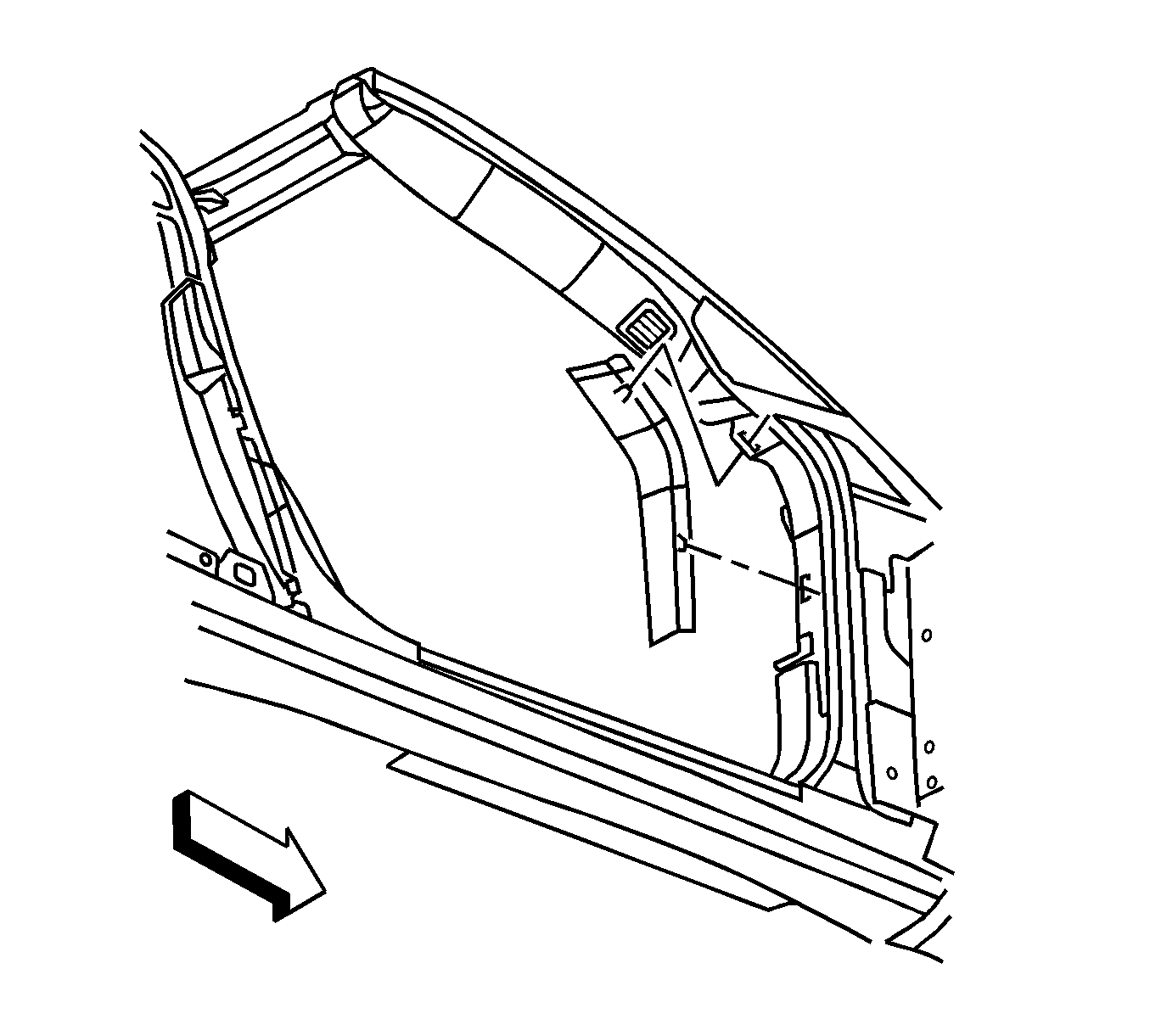

Fig 1: View Of Hinge Pillar Trim
GM1297874Courtesy of GENERAL MOTORS CORP.
  1. Snap the hinge pillar trim to the hinge pillar.
  2. Install the fastener attaching the top of the trim.
  3. Install the lower trim panel (sill plate) if removed. Refer to Door Sill Plate Replacement .
