Installation Procedure

IMPORTANT: All gaskets surfaces are to be free of oil or other foreign material during assembly.

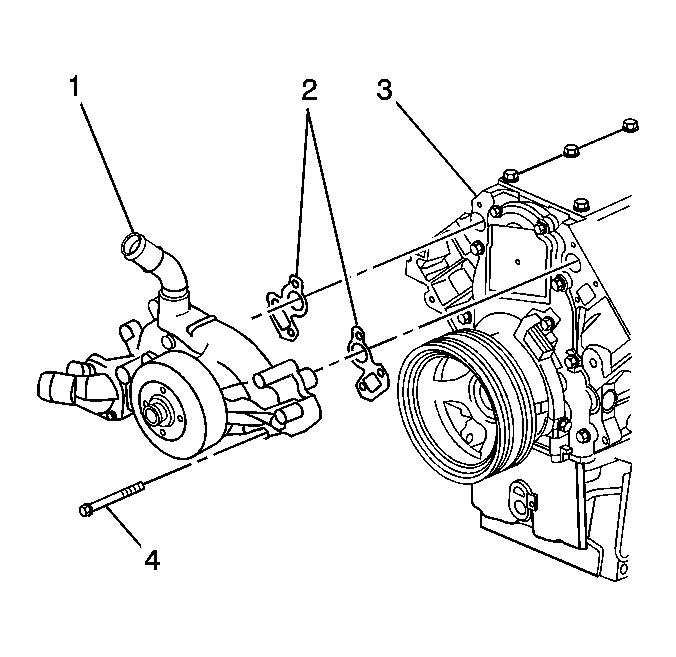

    Fig 1: Removing/Installing Water Pump & Gaskets
    GM1492012Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the water pump (1) and NEW gaskets (2).
  2. Install the water pump bolts (4).

    Tighten:

    1. Tighten the water pump bolts a first pass to 15 N.m (11 lb ft).
    2. Tighten the water pump bolts a final pass to 30 N.m (22 lb ft).

    3. Fig 2: View Of Heater Inlet Hose At Water Pump
    GM660665Courtesy of GENERAL MOTORS CORP.
  3. Install the heater inlet hose to the water pump.
  4. Position the heater inlet hose clamp at the water pump.
    5. Fig 3: View Of Surge Tank Outlet Hose To Water Pump
    GM659180Courtesy of GENERAL MOTORS CORP.
  5. Install the surge tank outlet hose to the water pump.
  6. Position the surge tank outlet hose clamp at the water pump.
    7. Fig 4: View Of Outlet Hose & Water Pump
    GM659509Courtesy of GENERAL MOTORS CORP.
  7. Install the outlet hose to the water pump.
  8. Position the outlet hose clamp at the water pump.
  9. Install the accessory drive belt. Refer to Drive Belt Tensioner Replacement - Accessory in Engine Mechanical - 6.0L.
    10. Fig 5: View Of Inlet Hose & Water Pump
    GM659418Courtesy of GENERAL MOTORS CORP.
  10. Install the inlet hose to the water pump.
  11. Position the inlet hose clamp at the water pump.
  12. Install electric cooling fan. Refer to Cooling Fan Replacement - Electric .
  13. Fill cooling system. Refer to Draining and Filling Cooling System (Static Fill)  or Draining and Filling Cooling System (Vac-N-Fill) .
