Removal Procedure

Remove the rear upper garnish molding. Refer to Garnish Molding Replacement - Rear Upper .
Remove the gearshift knob. Refer to Floor Shift Control Knob Replacement .
Remove the gearshift lever bezel. Refer to Console Shift Lever Bezel Replacement .
Fold the left and right seats forward.

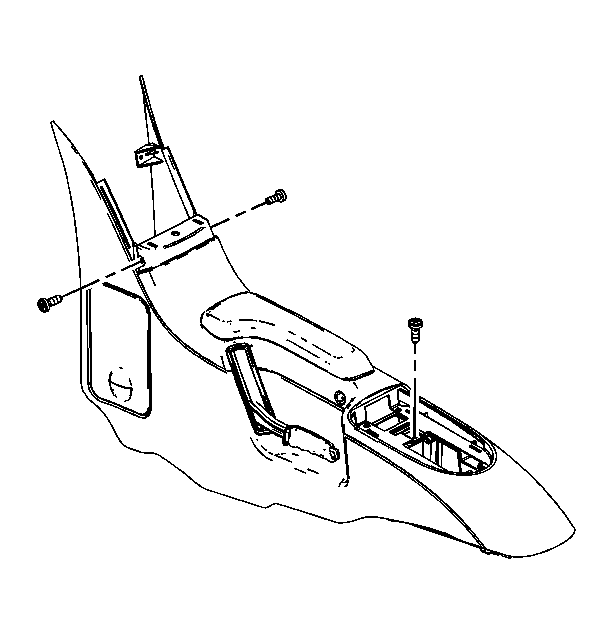

Fig 1: Identifying Upper Console Screws & Console Trim to Base Screw

GM1382472

Courtesy of GENERAL MOTORS CORP.

Remove the 2 upper console screws.
Remove the screw retaining the console trim to the console base located by the shift bezel lever.

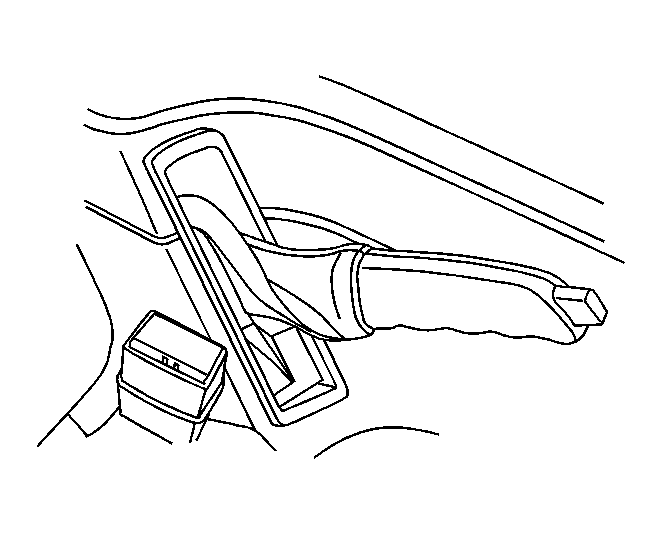

Fig 2: View of Parking Brake Handle

GM1343509

Courtesy of GENERAL MOTORS CORP.

Remove the parking brake handle bezel.

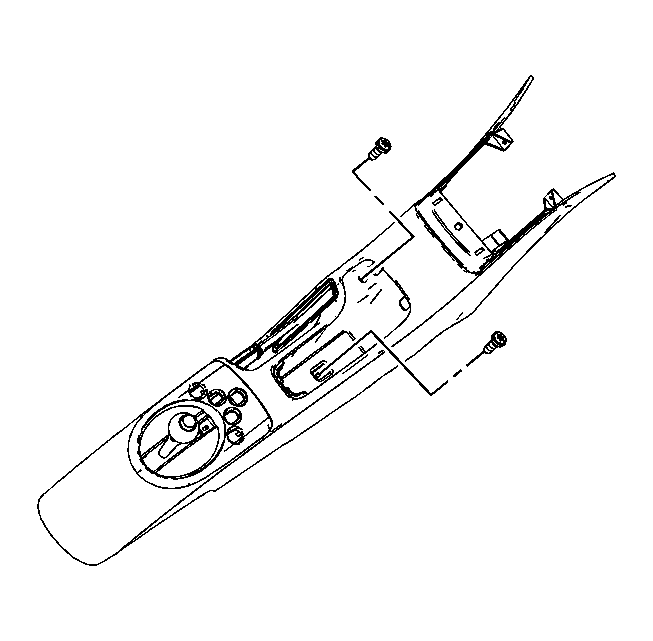

Fig 3: Identifying Storage Bin Cover Screws

GM1382473

Courtesy of GENERAL MOTORS CORP.

Open the storage bin cover and remove the 2 screws.

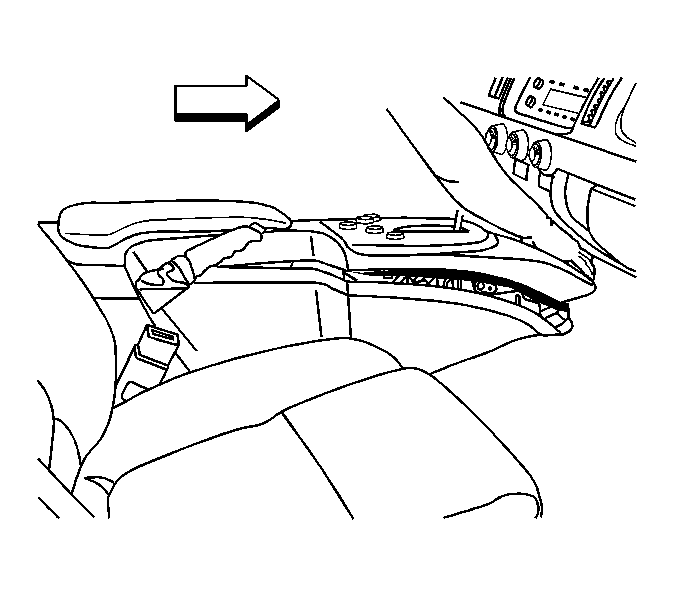

Fig 4: View of Console Trim

GM1174588

Courtesy of GENERAL MOTORS CORP.

Using a clean glove, grab the forward edge of the console trim and pull upward to release the retaining tabs.

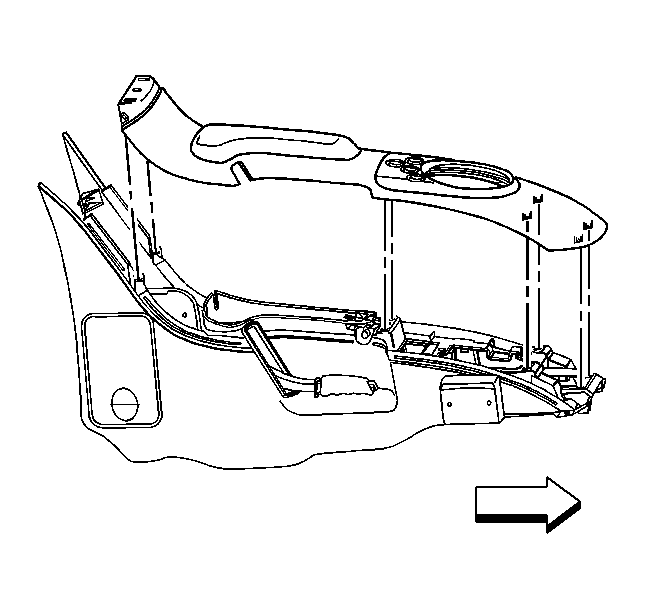

Fig 5: Identifying Console Trim

GM1174597

Courtesy of GENERAL MOTORS CORP.

Remove the console trim from the vehicle.
