Removal Procedure

  1. Remove the console compartment lid.

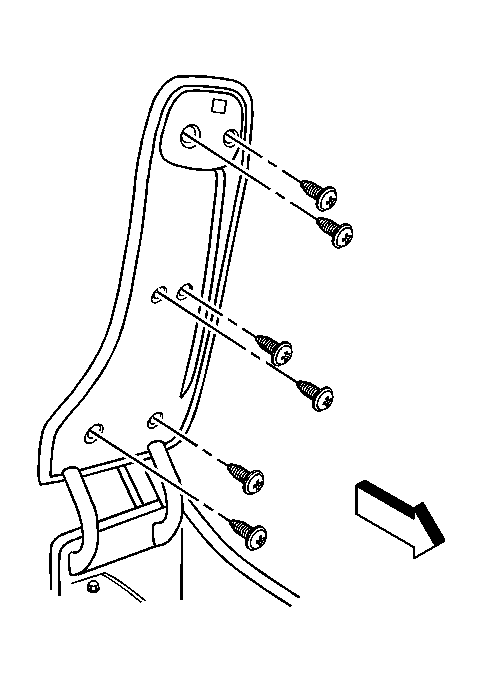

    2. Fig 1: Identifying Retaining Lid to Armrest Screws
    GM1381752Courtesy of GENERAL MOTORS CORP.
  2. Remove the 6 screws retaining the lid to the armrest.

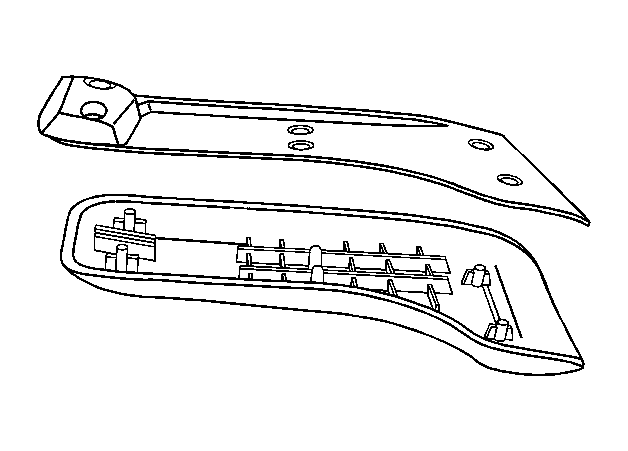

    3. Fig 2: View of Armrest Pad
    GM1381755Courtesy of GENERAL MOTORS CORP.
  3. Remove the armrest pad from the compartment lid.

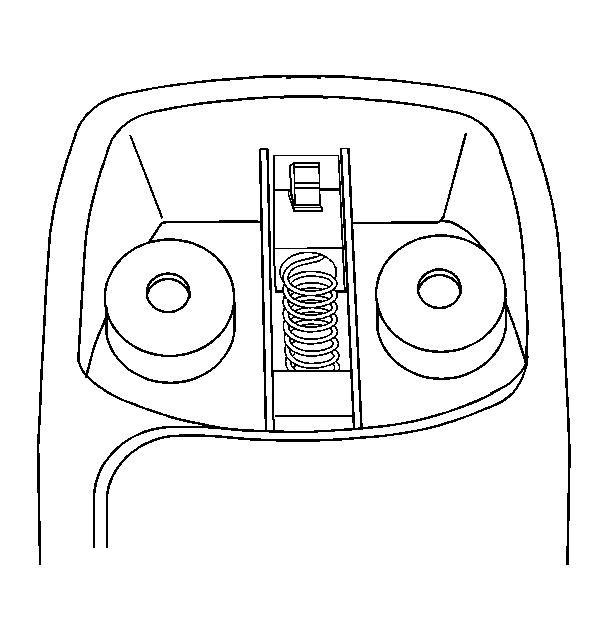

    4. Fig 3: View of Armrest Latch & Spring
    GM1381751Courtesy of GENERAL MOTORS CORP.
  4. Remove the armrest latch and spring.
