Home >> Chevrolet >> 2006 >> SSR Standard >> Repair and Diagnosis >> Electrical >> Instrument Panel System Displays, Gauges And Console >> Repair Instructions >> Console Compartment Door Hinge Replacement >> Removal Procedure

Removal Procedure

  1. Remove the rear upper garnish molding. Refer to Garnish Molding Replacement - Rear Upper .
  2. Remove the console upper trim plate. Refer to Trim Plate Replacement - Console Upper .

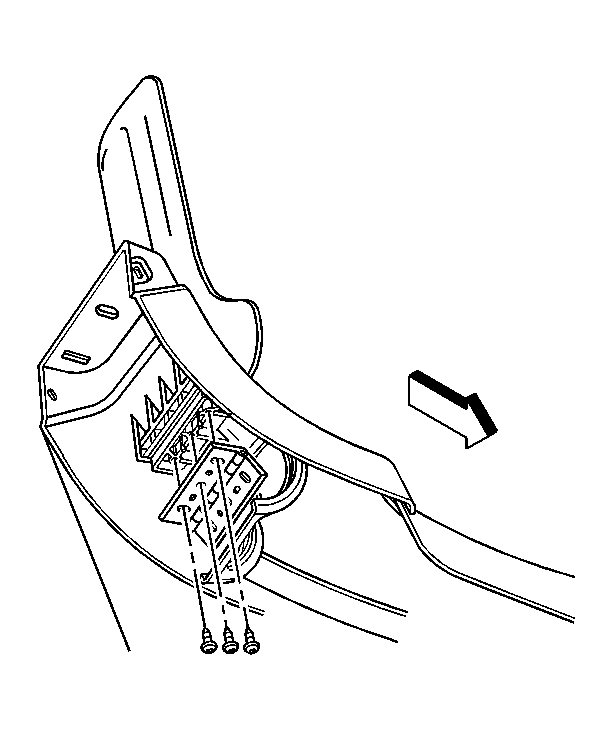

    3. Fig 1: Identifying Upper Hinge to Console Upper Trim Plate Screws
    GM1204246Courtesy of GENERAL MOTORS CORP.
  3. Remove the 3 screws retaining the upper hinge to the console upper trim plate.
  4. Remove the hinge from the console upper trim plate.
