Ambient Air Temperature Gage Sensor Replacement

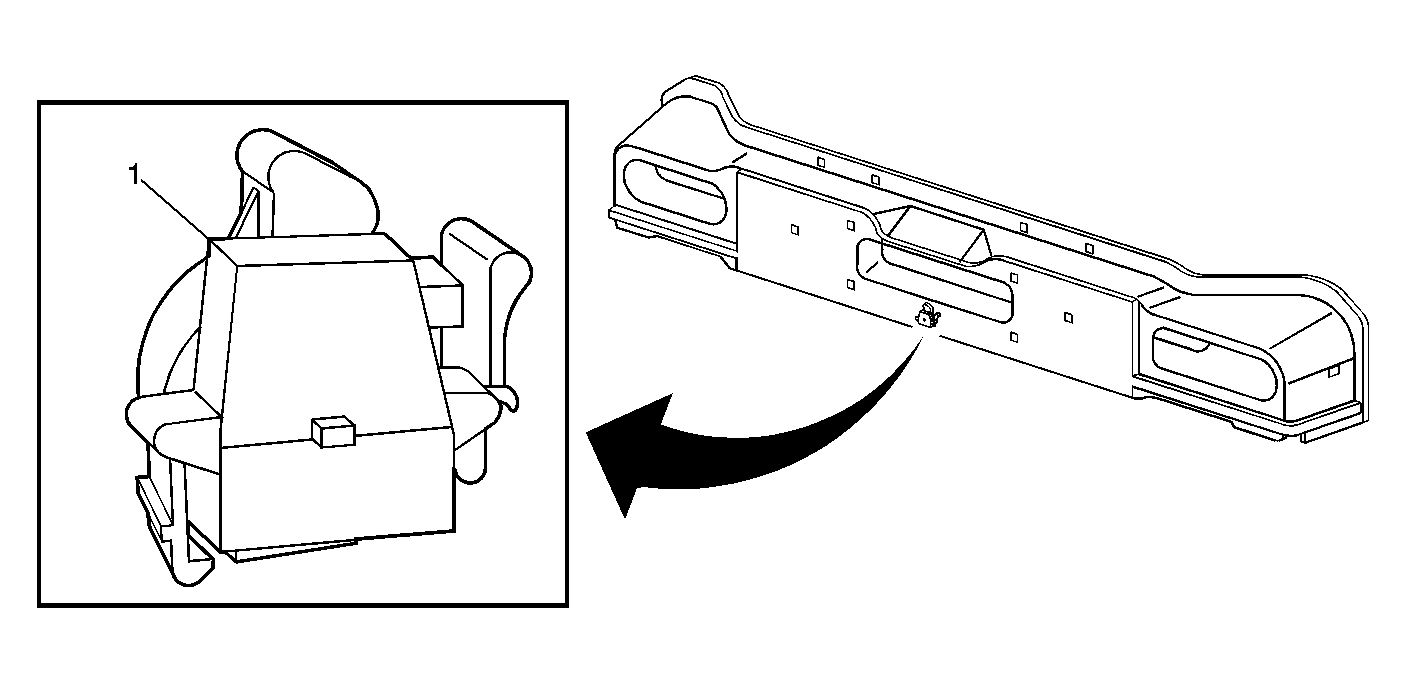

Fig 1: Ambient Air Temperature Gage Sensor
GM1644150Courtesy of GENERAL MOTORS CORP.
Ambient Air Temperature Gage Sensor Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Ambient Air Temperature Sensor
Tip:
  1. The sensor is attached to the front tie bar and can be accessed from the underside of the vehicle.
  2. Disconnect the electrical connector.
