Power Roof Systems Component Views

Fig 1: Center Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Window Switch
2	Door Lock/Unlock Switch
3	Folding Top Switch
4	Center Console Switch Assembly
5	Traction ON/OFF Switch
6	Driver Window Switch

Fig 2: Roof/Door Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof/Door Module Connector
2	Roof/Door Module Connector
3	Roof/Door Module Connector
4	Roof/Door Module Connector
5	Relay Block - Rear
6	Daytime Running Lamp (DRL) Diode
7	Roof/Door Module
8	Body Harness

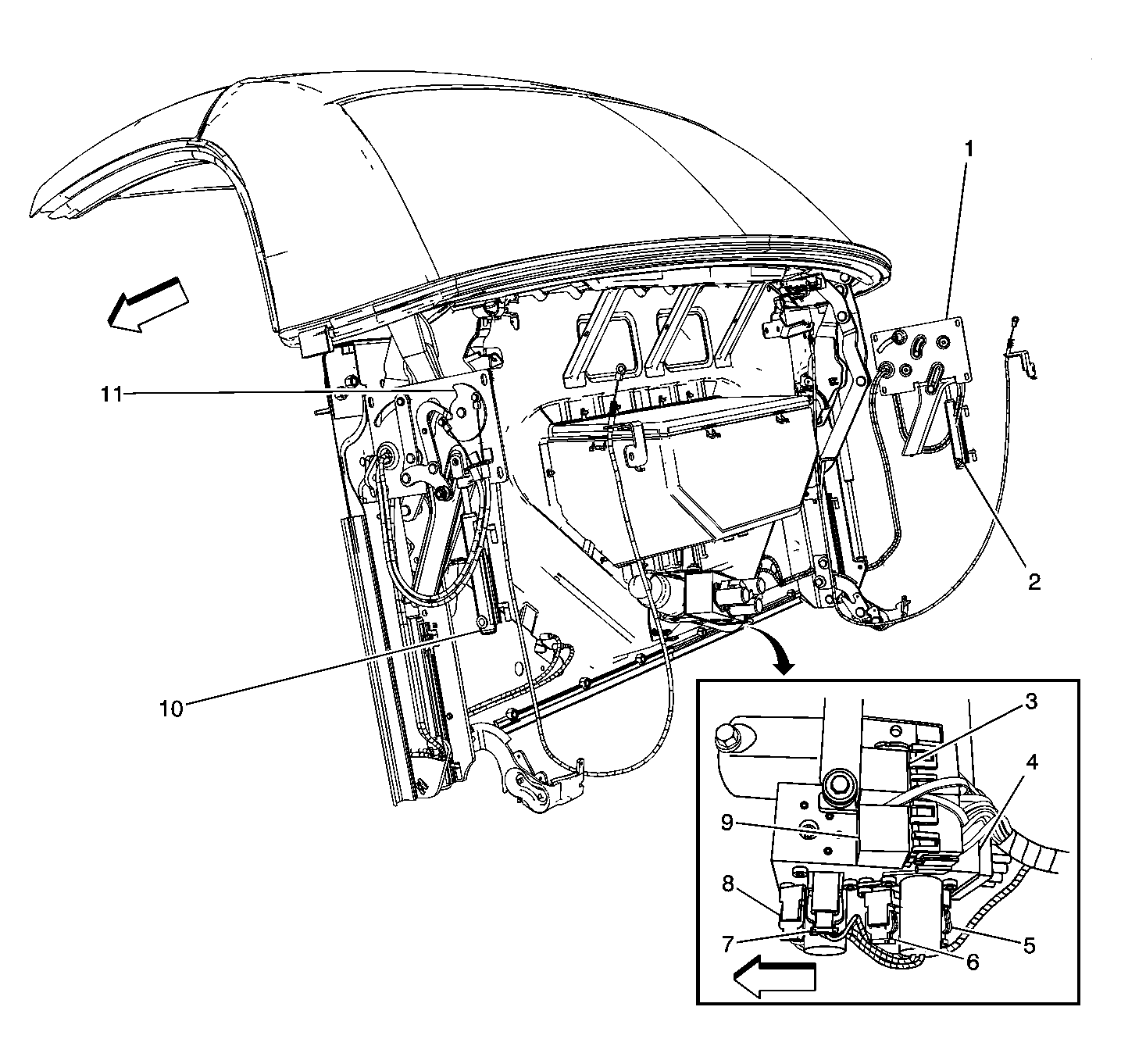

Fig 3: Folding Top Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top Stowage Compartment Lid Latch Switch/Sensor - Right
2	Folding Top Stowage Compartment Latch Cylinder Position Sensor - Right
3	Folding Top Motor Left Relay
4	Folding Top Pump Motor Assembly
5	Folding Top Valve 1
6	Folding Top Valve 2
7	Folding Top Valve 3
8	Folding Top Valve 4
9	Folding Top Motor Right Relay
10	Folding Top Stowage Compartment Latch Cylinder Position Sensor - Left
11	Folding Top Stowage Compartment Lid Latch Switch/Sensor - Left

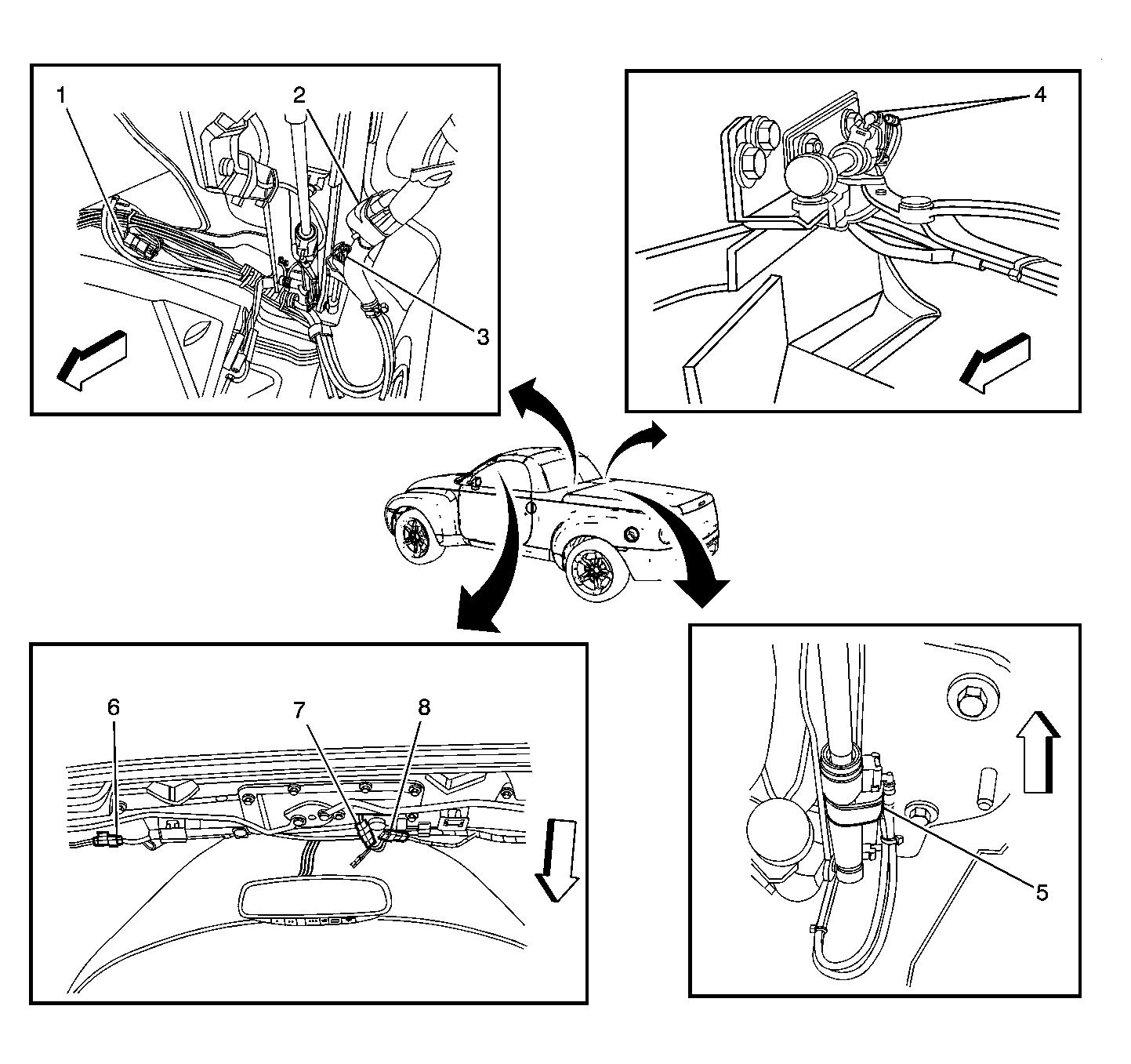

Fig 4: Folding Top Roof Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top Pump Motor Assembly Connector C5
2	Folding Top Stowage Compartment Lid Latch Switch/Sensor Connector - Right
3	Folding Top Cylinder Position Sensor Connector
4	Folding Top Stowage Compartment Lid Extension Panel Cylinder Position Sensor
5	Folding Top Stowage Compartment Lid Cylinder Position Sensor
6	Folding Top Outer Latch Striker Position Switch
7	Folding Top Outer Latch Actuator
8	Folding Top Outer Latch Position Switch
