Installation Procedure

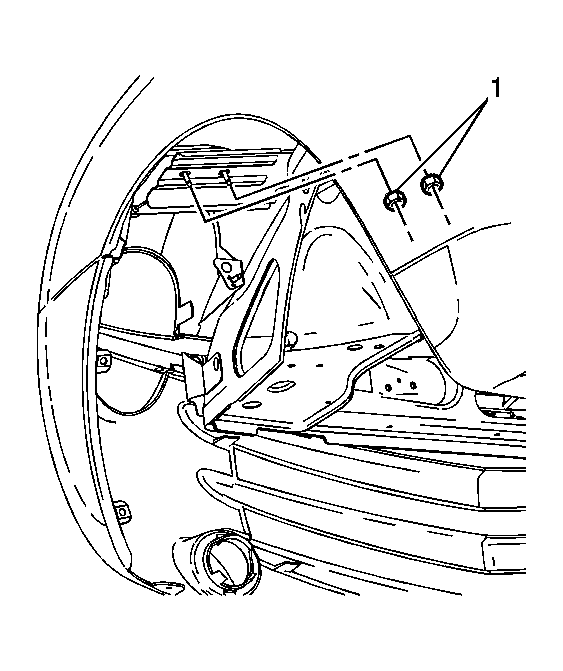

    Fig 1: Identifying Fender to Fender Extension Bracket Fasteners
    GM1251391Courtesy of GENERAL MOTORS CORP.
  1. Position the fender to the vehicle.
    2. NOTE: Refer to Fastener Notice .

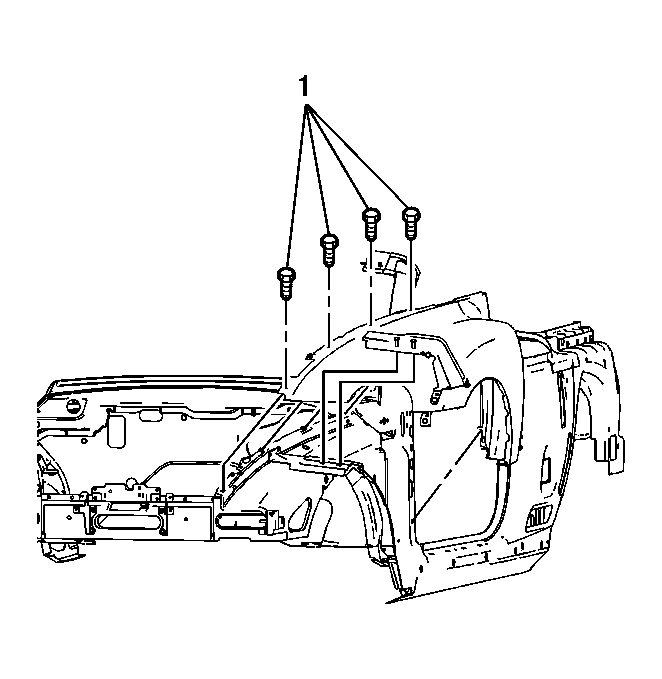

    Fig 2: View of Front Fascia
    GM1251384Courtesy of GENERAL MOTORS CORP.
  2. Install the upper fender fasteners (1). Hand tighten only.

    Tighten:  Tighten the bolts to 10 N.m (88 lb in).

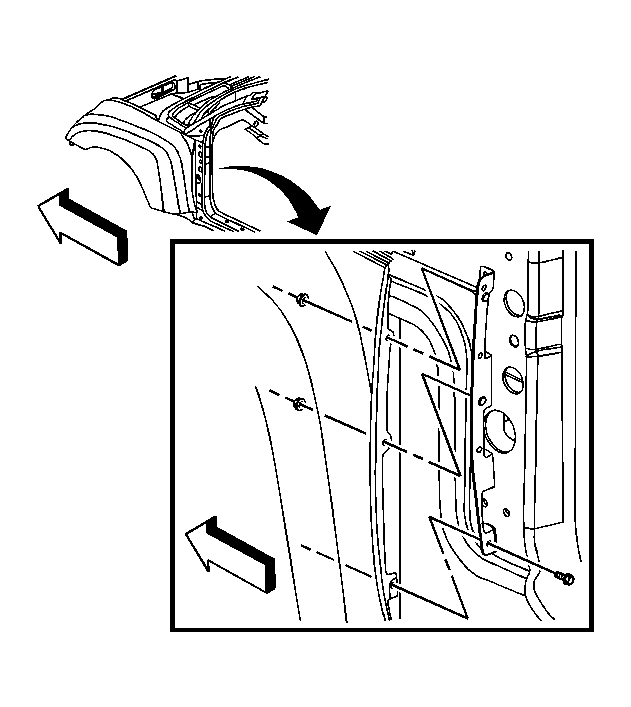

    3. Fig 3: Identifying Rear Fender Bracket Fasteners
    GM1361909Courtesy of GENERAL MOTORS CORP.
  3. Install the rear fender bracket fasteners. Hand tighten only.
  4. Install the fender extension bracket fasteners. Hand tighten only.
  5. Tighten all fasteners.

    Tighten:  Tighten all fasteners to 10 N.m (88 lb in).

  6. Install the front fascia. Refer to Fascia Replacement - Front Bumper .
  7. Install the lower fender reinforcement fasteners. Refer to Fender Reinforcement Replacement - Lower .
  8. Install the rocker panel molding. Refer to Cladding Replacement Rocker Panel - Front .
  9. Install the wheelhouse panel. Refer to Wheelhouse Liner Replacement - Front .
  10. Remove protective tape on the front edge of the front door and the rear edge of the front bumper fascia.
  11. Remove the temporary hood support and close the hood.
