Installation Procedure

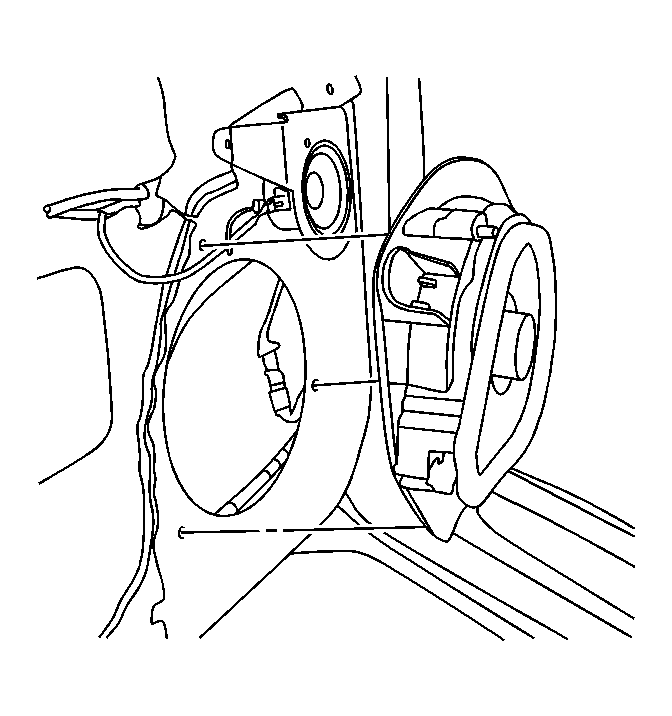

    Fig 1: Identifying Speaker to Door Fasteners
    GM1337527Courtesy of GENERAL MOTORS CORP.
  1. Position the speaker onto the door.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fasteners securing the speaker to the door.

    Tighten:  Tighten the fasteners to 2 N.m (18 lb in).

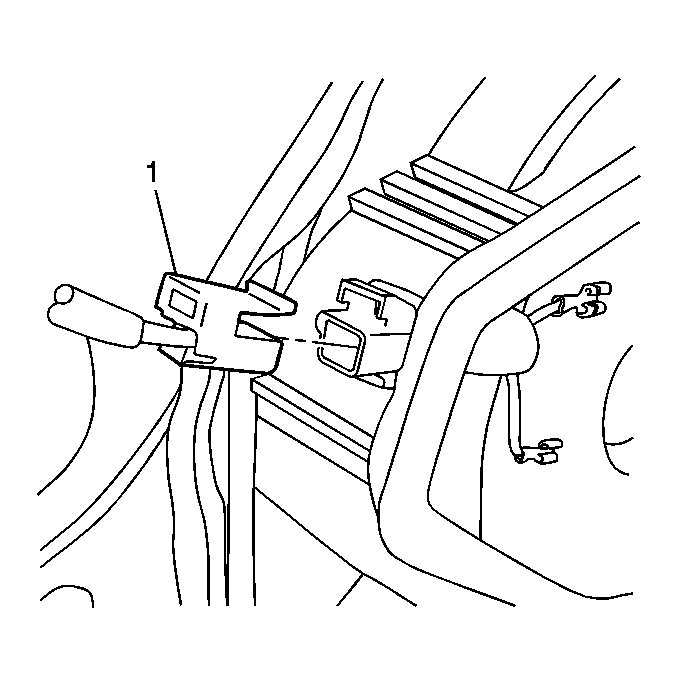

    3. Fig 2: Identifying Speaker Electrical Connector
    GM1337517Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector (1).

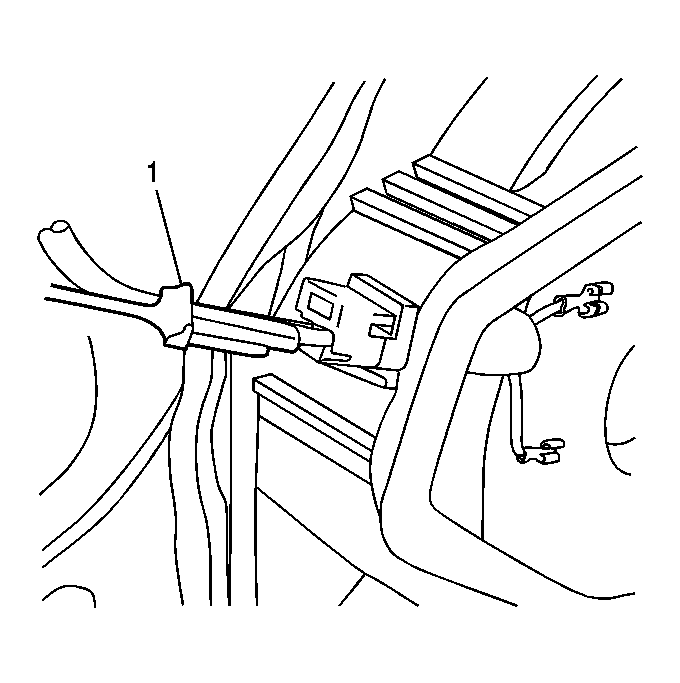

    4. Fig 3: Identifying Connector Position Assurance
    GM1337519Courtesy of GENERAL MOTORS CORP.
  4. Install the CPA (1) for the connector.
  5. Install the door trim panel. Refer to Trim Panel Replacement - Door in Doors.
