Rear Side Marker Lamp Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

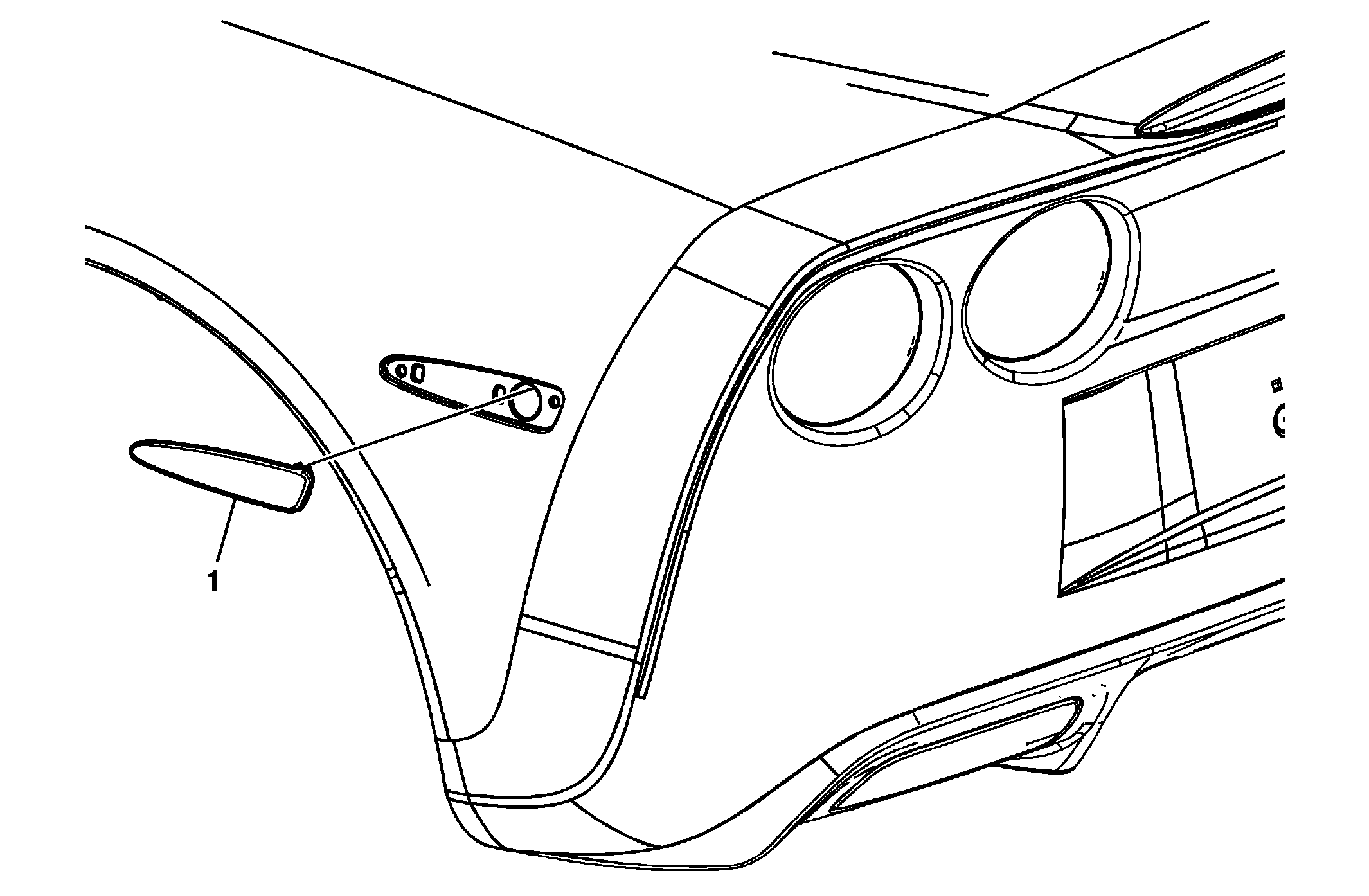

Fig 1: Rear Side Marker Lamp Assembly
GM1725364Courtesy of GENERAL MOTORS CORP.
Rear Side Marker Lamp Replacement

Callout Component Name
Preliminary Procedure:
Pull down the rear compartment side trim to access the rear side marker lamp. Refer to Rear Compartment Floor Panel Carpet Replacement (Convertible) or Rear Compartment Floor Panel Carpet Replacement (Coupe) .
1 Rear Side Marker Lamp Assembly
Tip:
  • The lamp releases by pressing the tabs inward.
  • Twist the bulb socket and pull inward to replace the bulb.
