Rear License Lamp Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

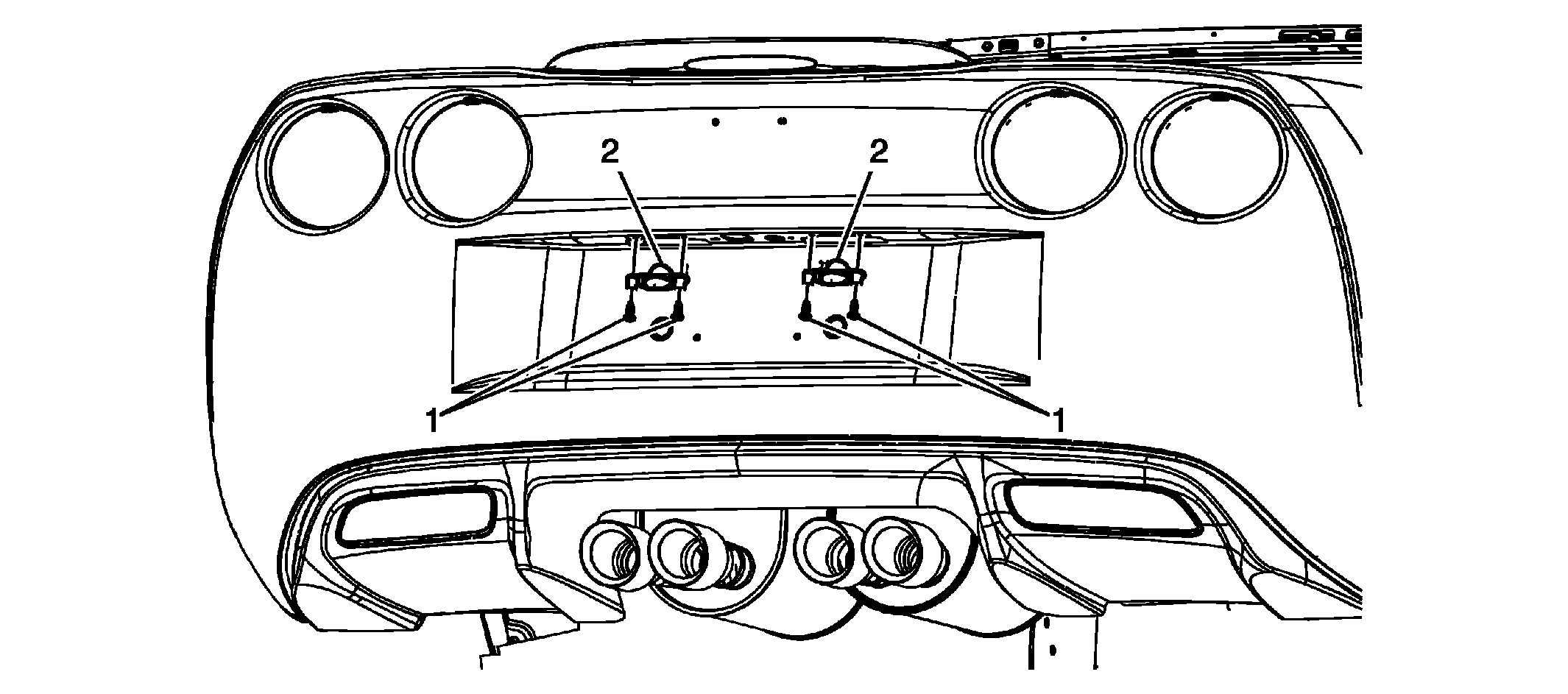

Fig 1: View Of Rear License Lamp Lens Sockets & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Screws (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: Tighten the screws to 1.9 N.m (17 lb in)
2	Lens Socket Tip: Pull the electrical harness with the lamp cover in order to disconnect the socket from the lamp bulb.
