Suspension Controls Component Views
WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Suspension Damper - RF |
| 2 |
Electronic Suspension Control (ESC) Module |
| 3 |
Transmission Harness |
| 4 |
Suspension Control Switch |
| 5 |
Traction Control Switch |
| 6 |
Suspension Damper - RR |
| 7 |
Suspension Position Sensor - RR |
| 8 |
Suspension Damper - LR |
| 9 |
Suspension Position Sensor - LR |
| 10 |
Suspension Position Sensor - LF |
| 11 |
Suspension Damper - LF |
| 12 |
Suspension Position Sensor - RF |

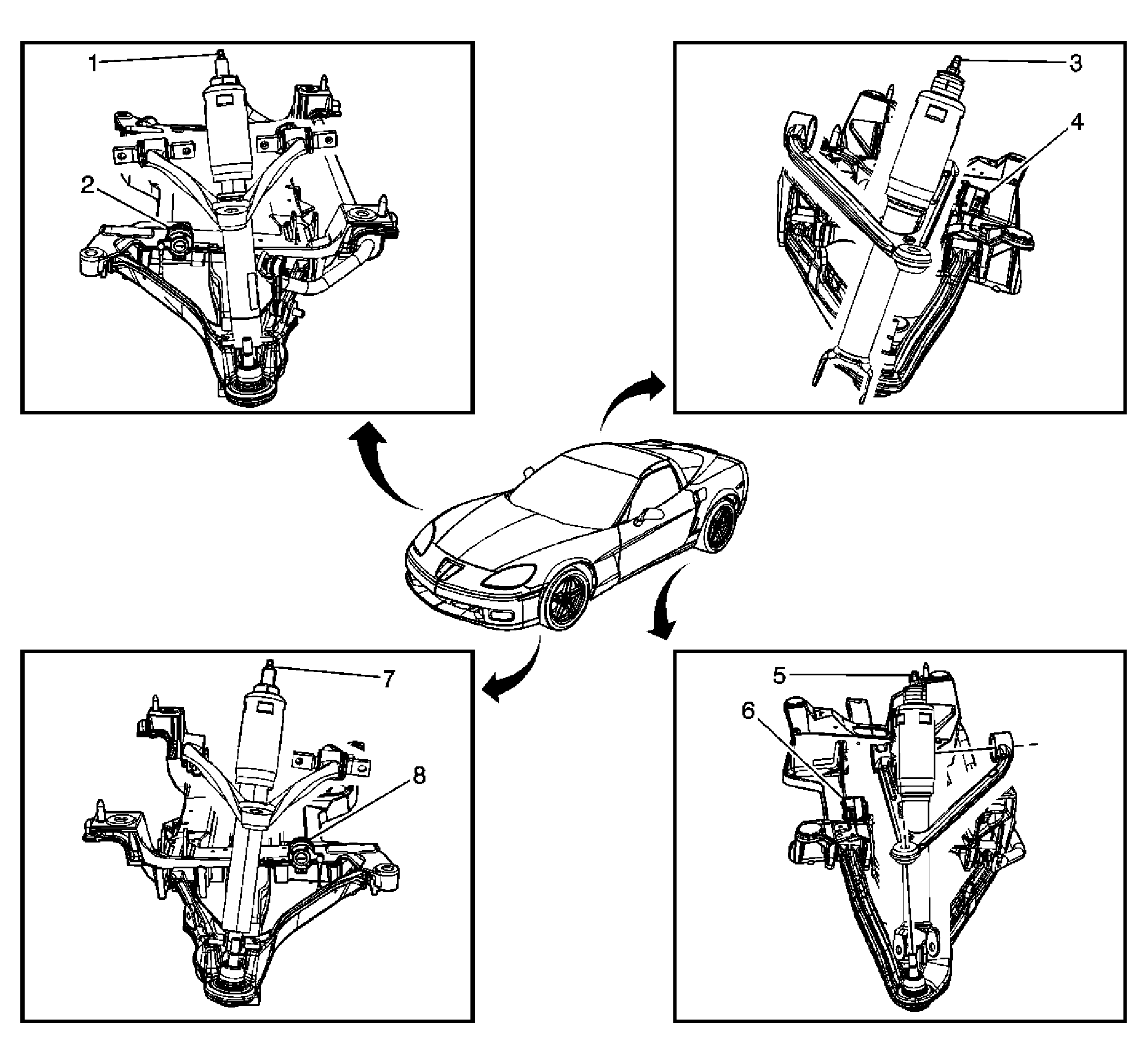

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Suspension Damper - RF |
| 2 |
Suspension Position Sensor - RF |
| 3 |
Suspension Damper - RR |
| 4 |
Suspension Position Sensor - RR |
| 5 |
Suspension Damper - LR |
| 6 |
Suspension Position Sensor - LR |
| 7 |
Suspension Damper - LF |
| 8 |
Suspension Position Sensor - LF |
