Speaker Replacement - Front Door
WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Speaker Replacement - Front Door

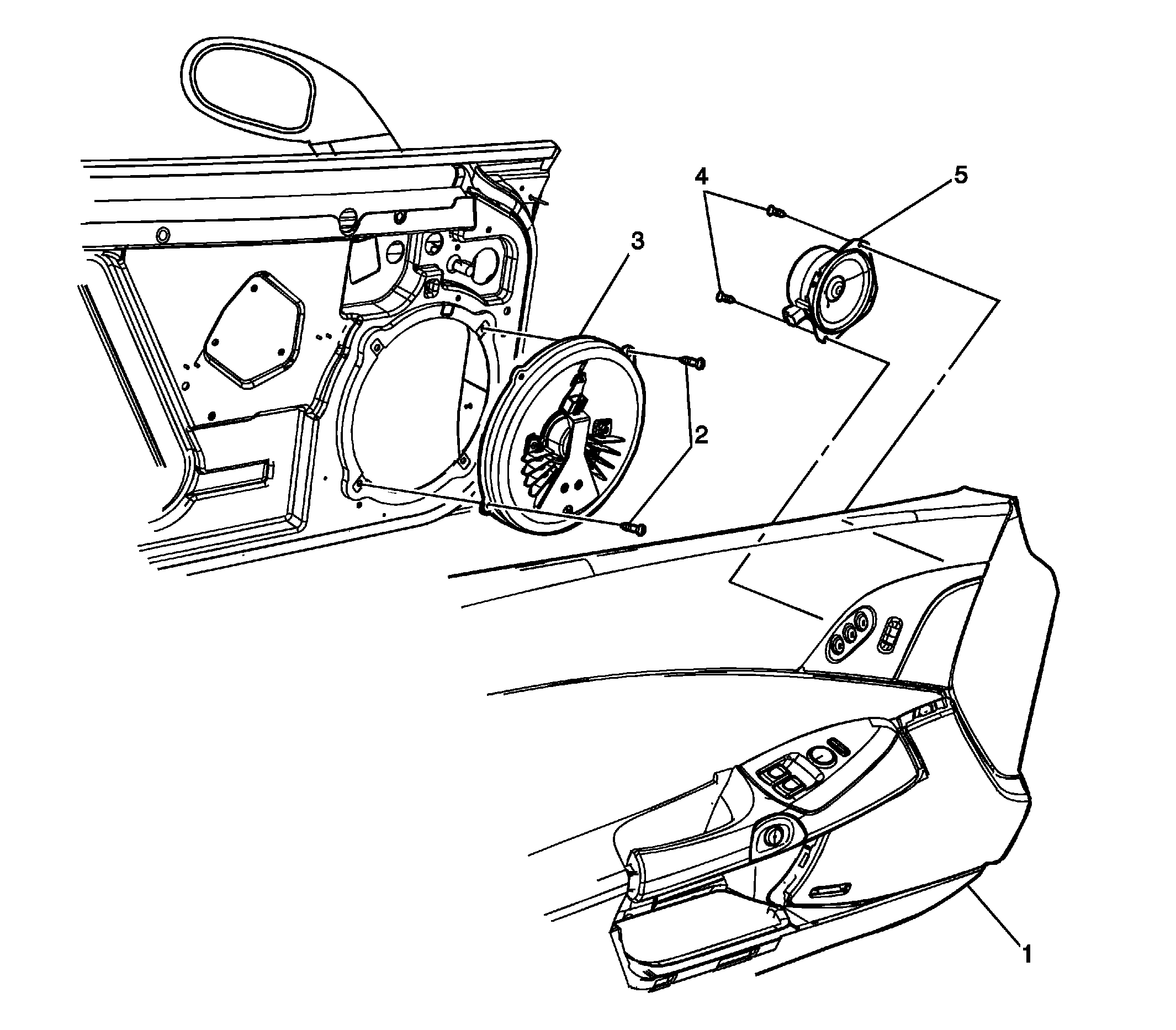

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Panel, Door Trim Refer to Trim Panel Replacement - Driver Door or Trim Panel Replacement - Passenger Door in Doors. Tip: Left side shown, right side similar. |
| 2 | Screws, Door Speaker (Qty: 4) Tighten: 2 N.m (18 lb in) |
| 3 | Speaker, Door Lower |
| 4 | Screws, Door Speaker (Qty: 4) Tighten: 2 N.m (18 lb in) |
| 5 | Speaker, Door Upper |
