Ground Distribution Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

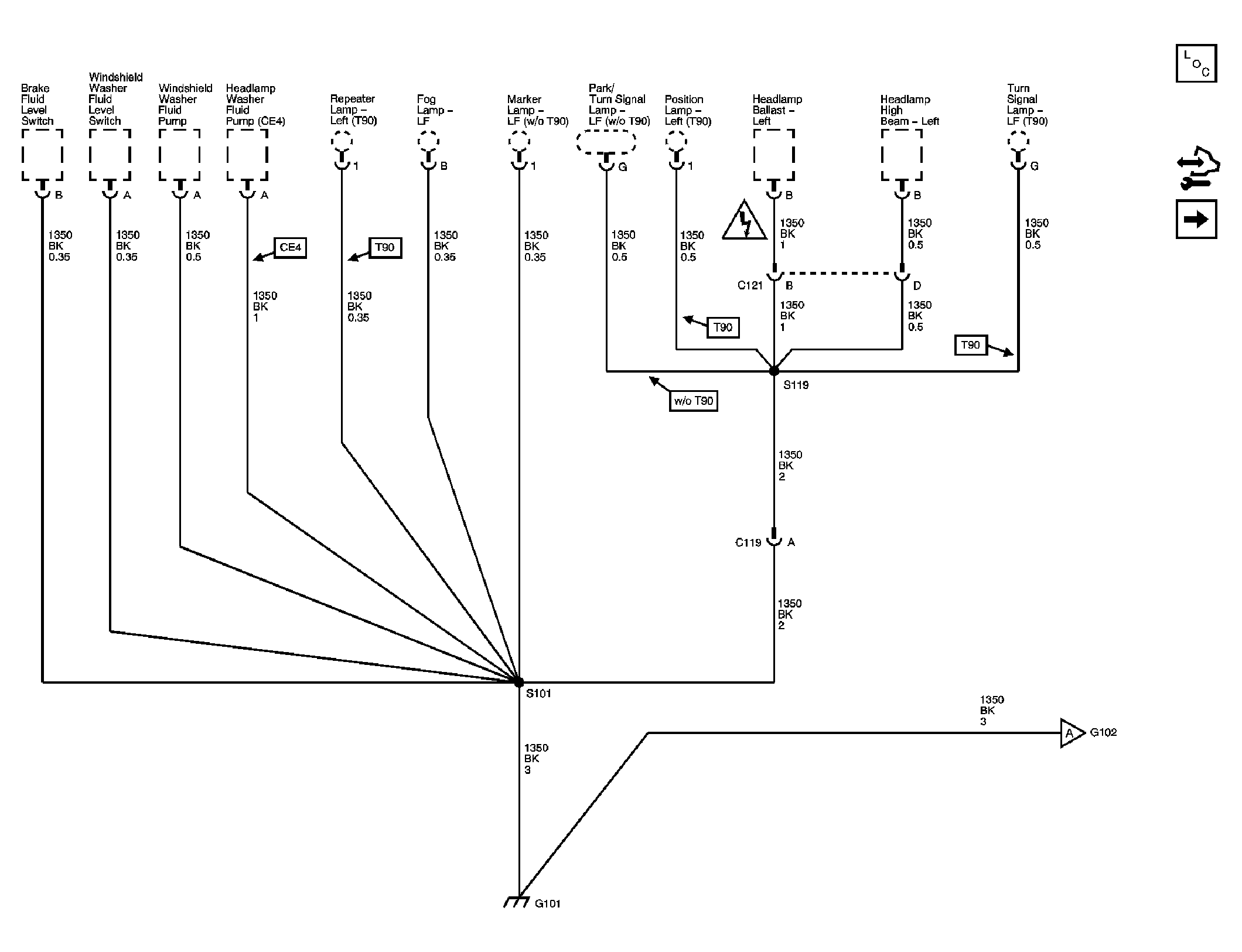

Fig 1: G101 Schematic

Courtesy of GENERAL MOTORS CORP.

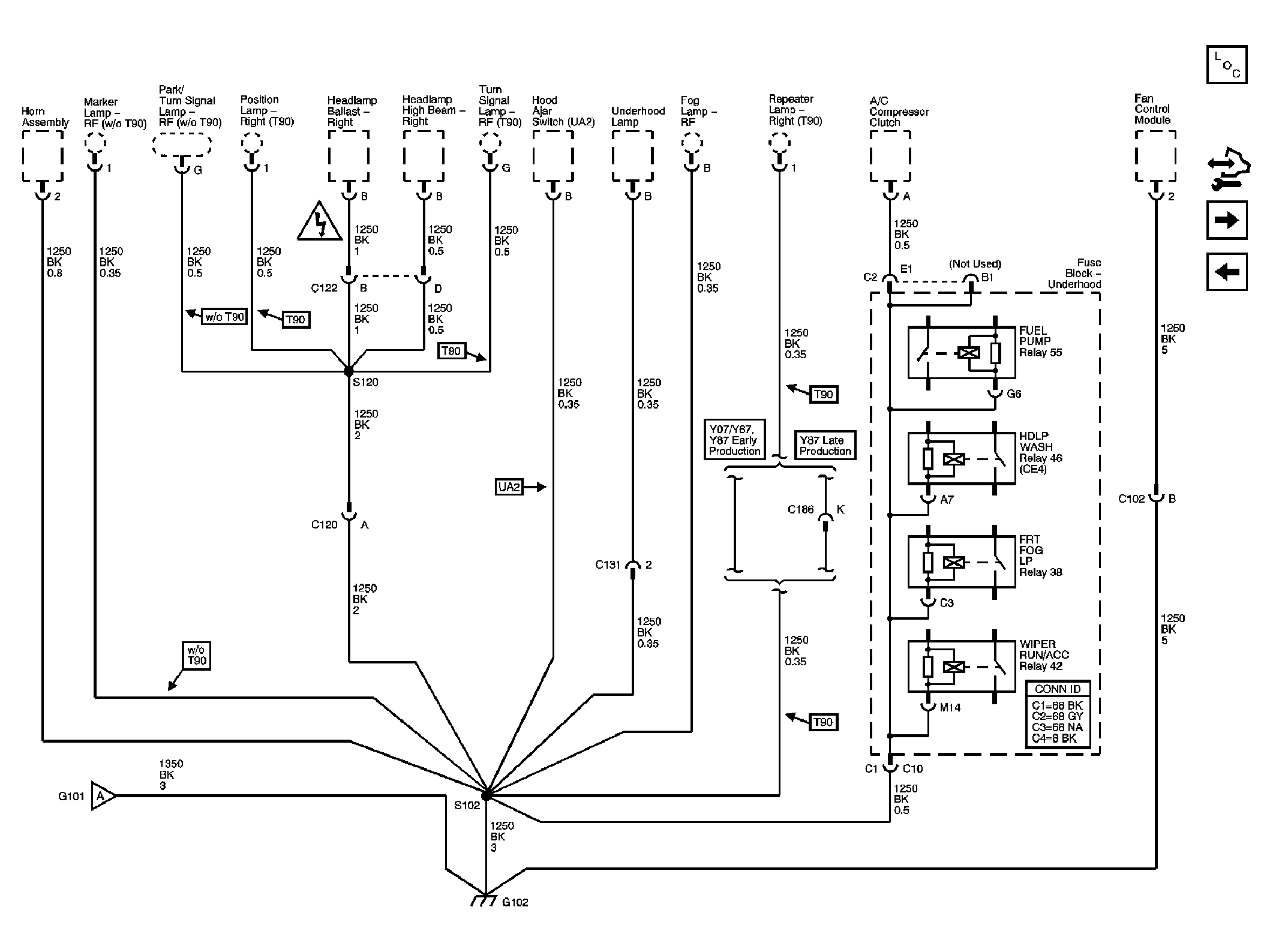

Fig 2: G102 Schematic

Courtesy of GENERAL MOTORS CORP.

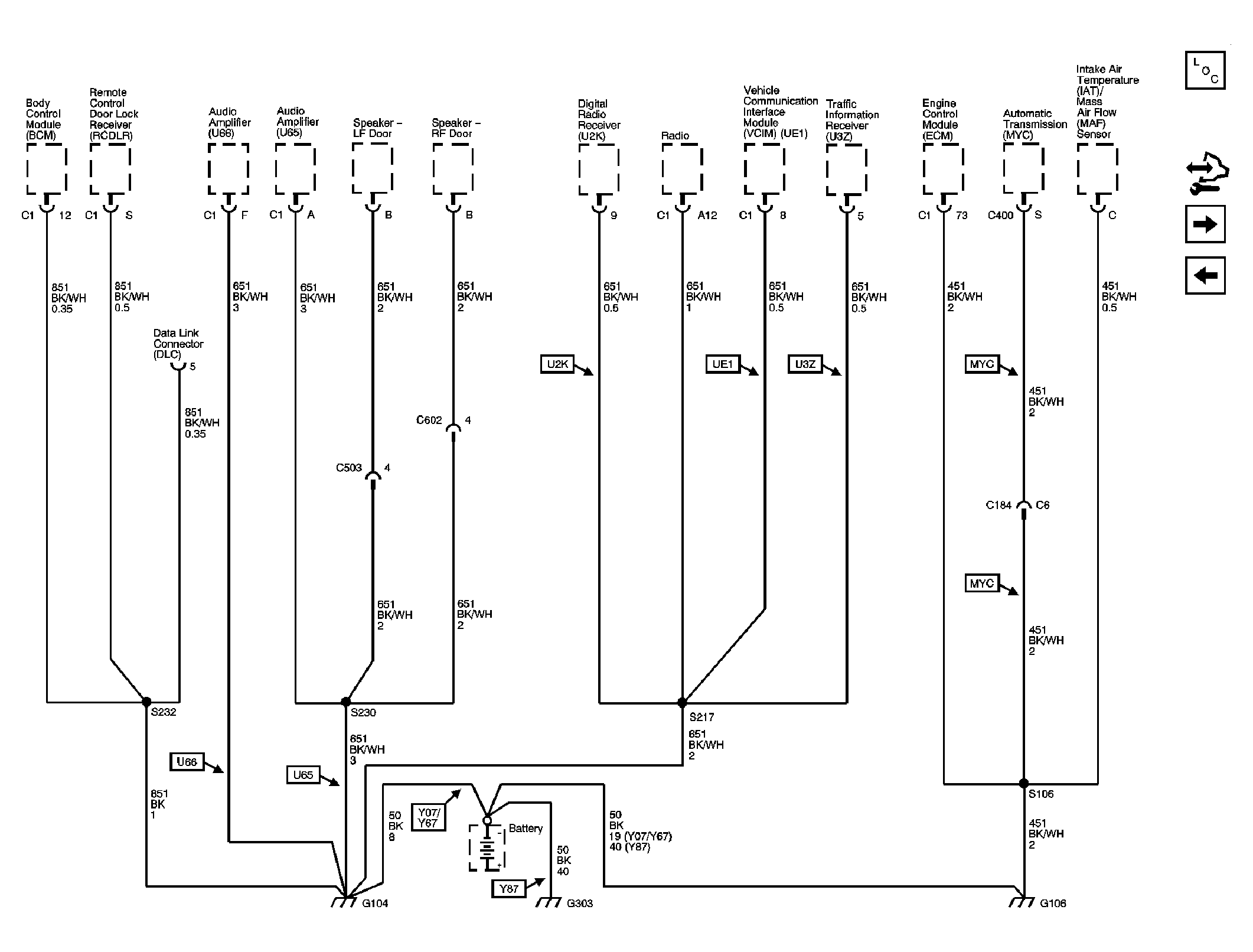

Fig 3: G104, G106, and G303 Schematic

Courtesy of GENERAL MOTORS CORP.

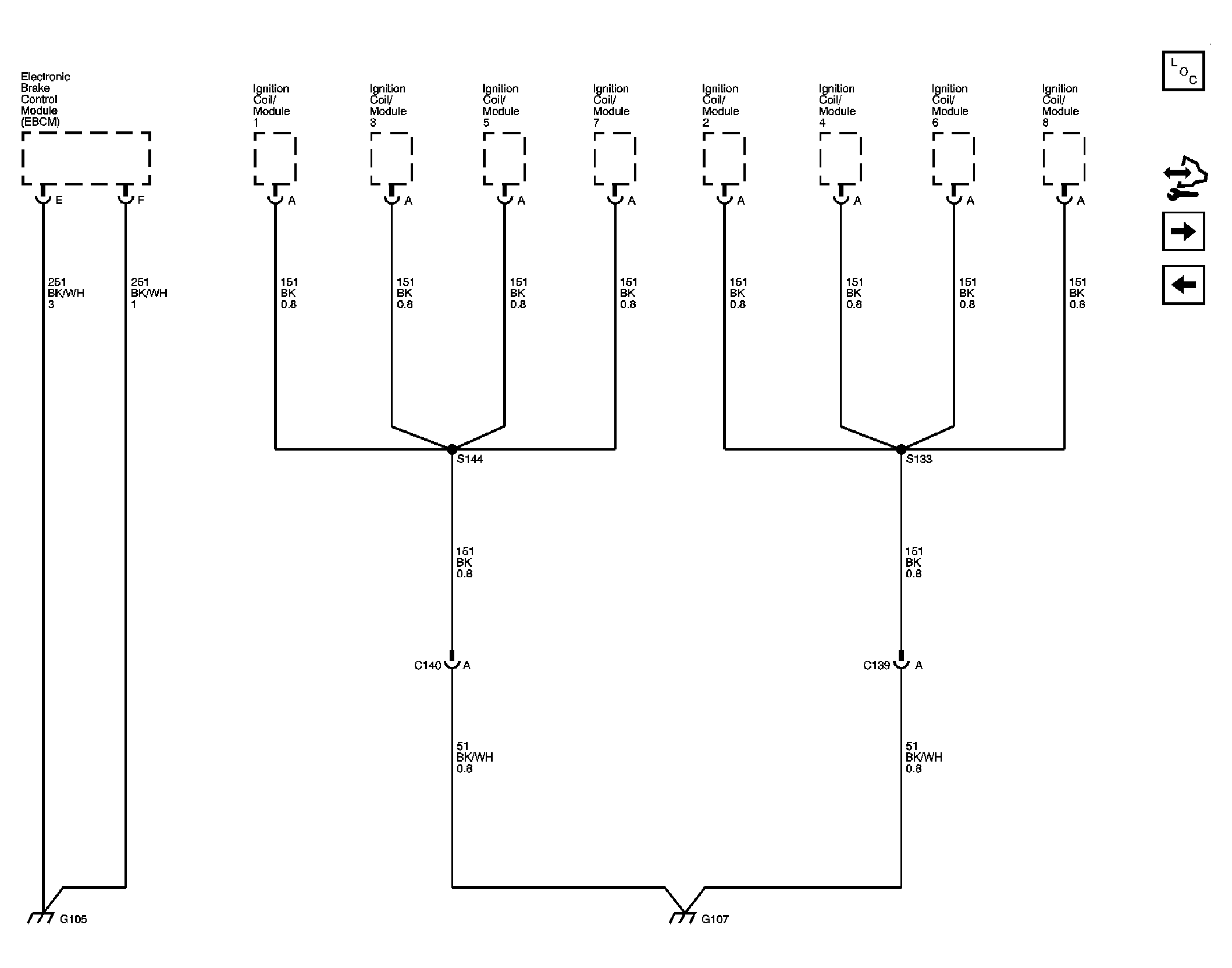

Fig 4: G105 and G107 Schematic

Courtesy of GENERAL MOTORS CORP.

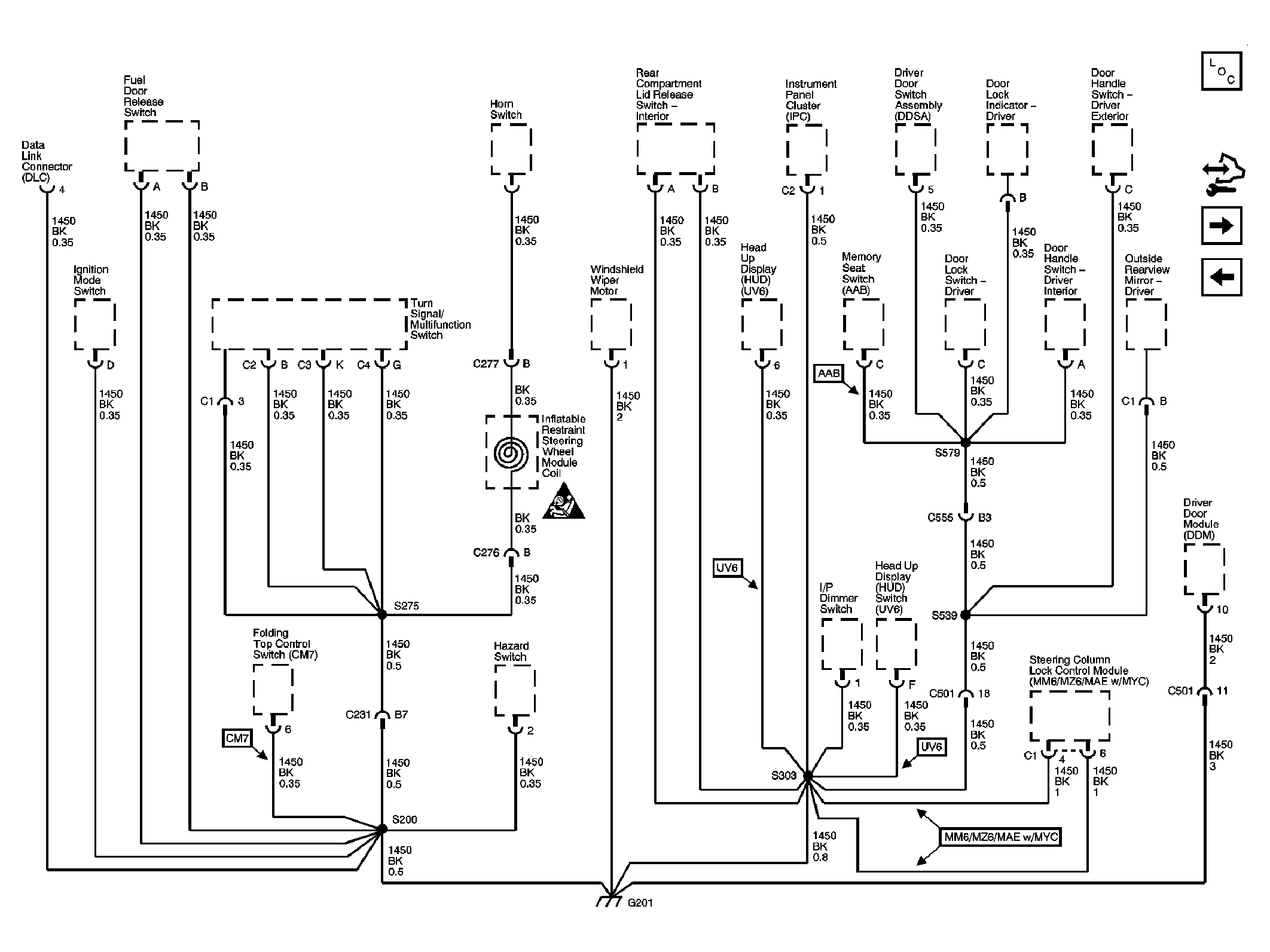

Fig 5: G201 Schematic

Courtesy of GENERAL MOTORS CORP.

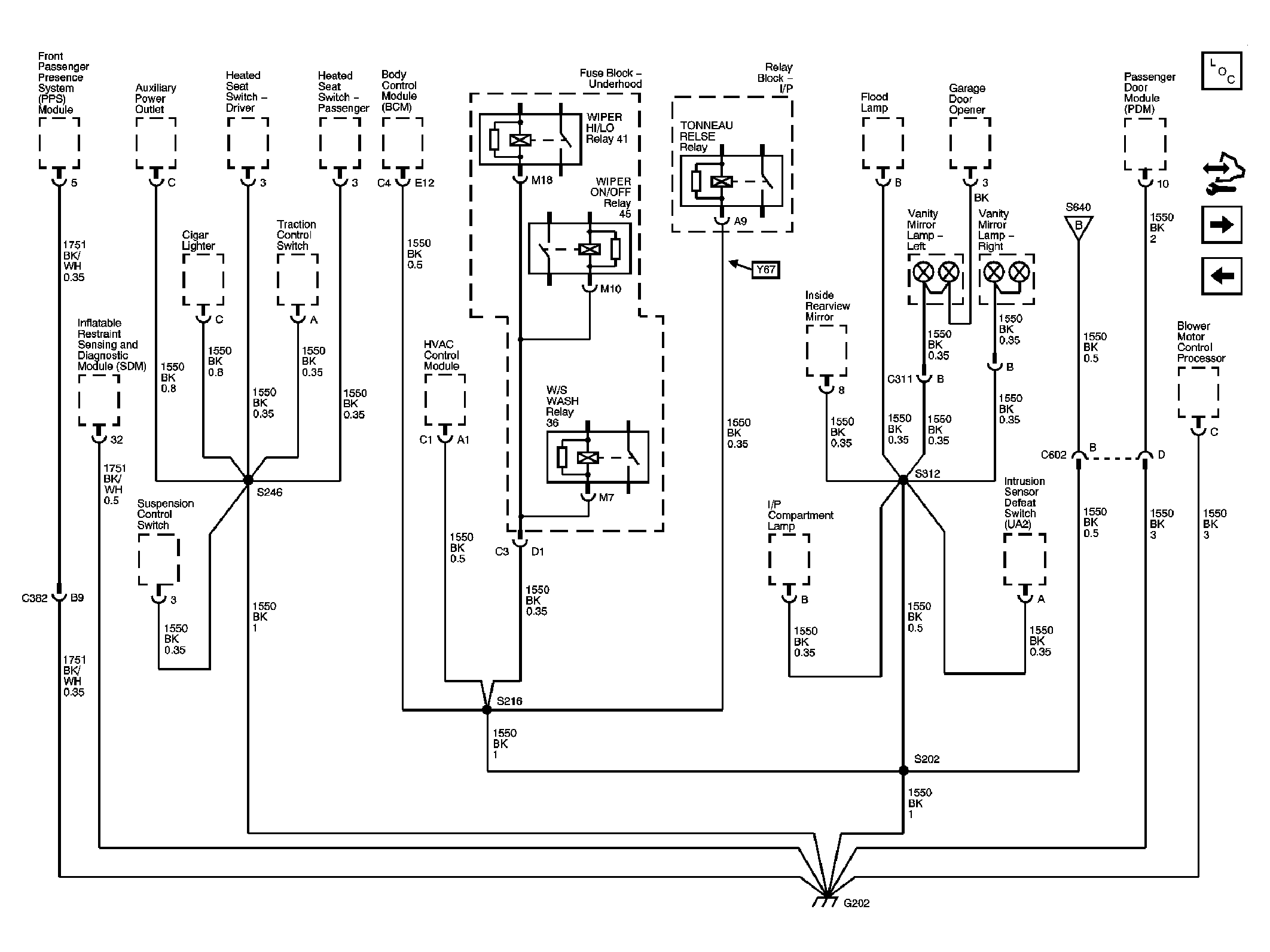

Fig 6: G202, 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

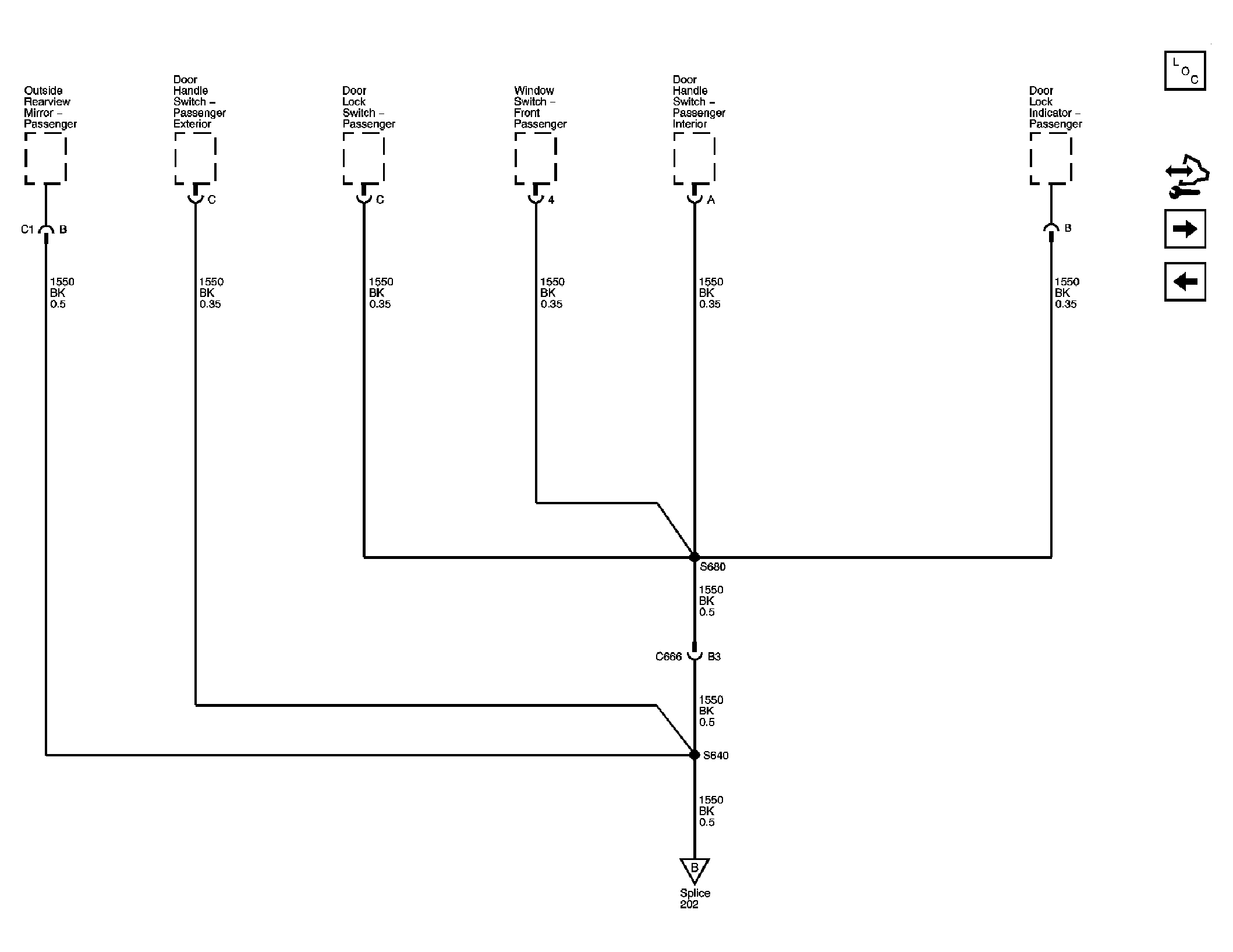

Fig 7: G202 2 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

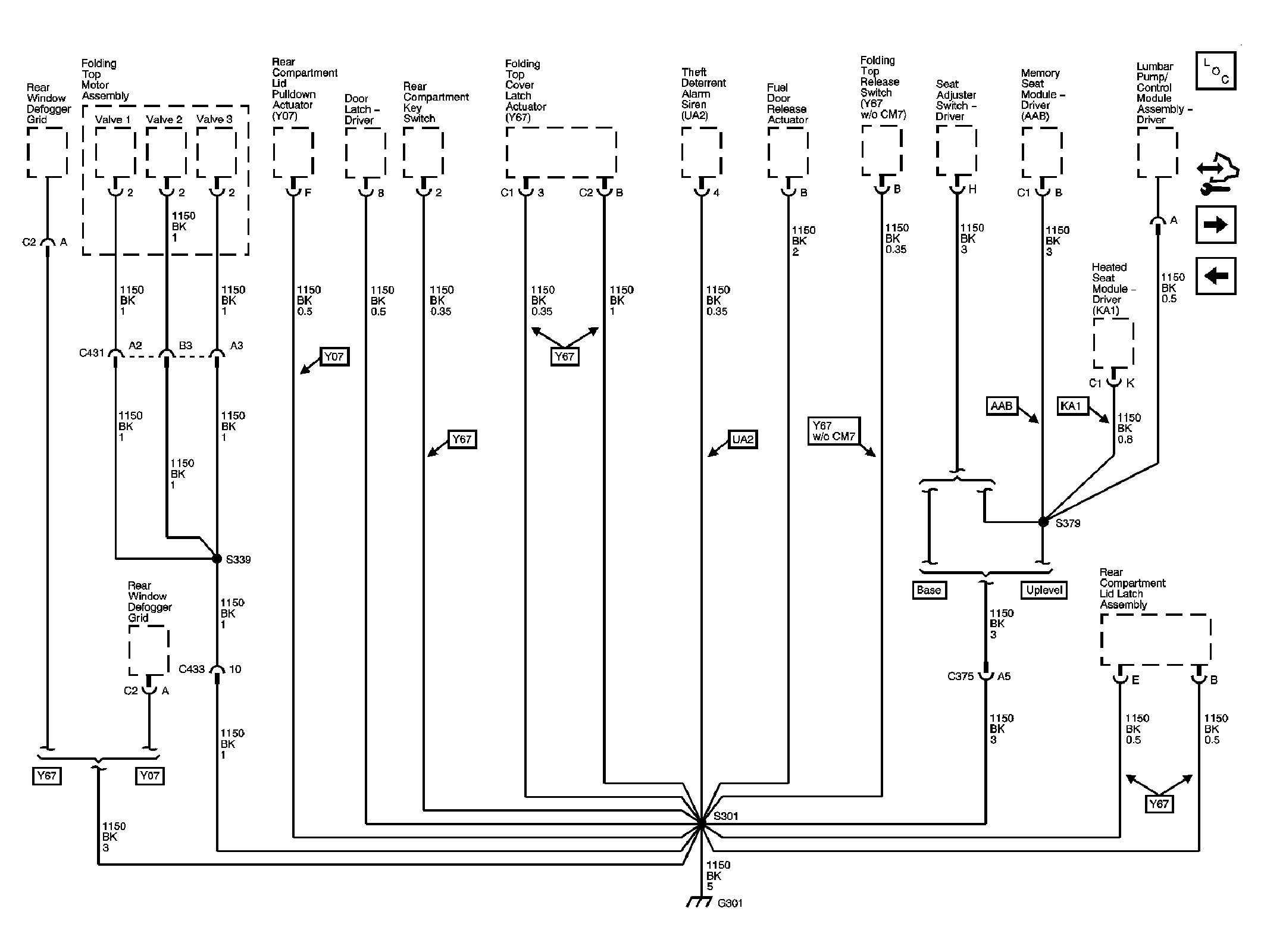

Fig 8: G301 Schematic

Courtesy of GENERAL MOTORS CORP.

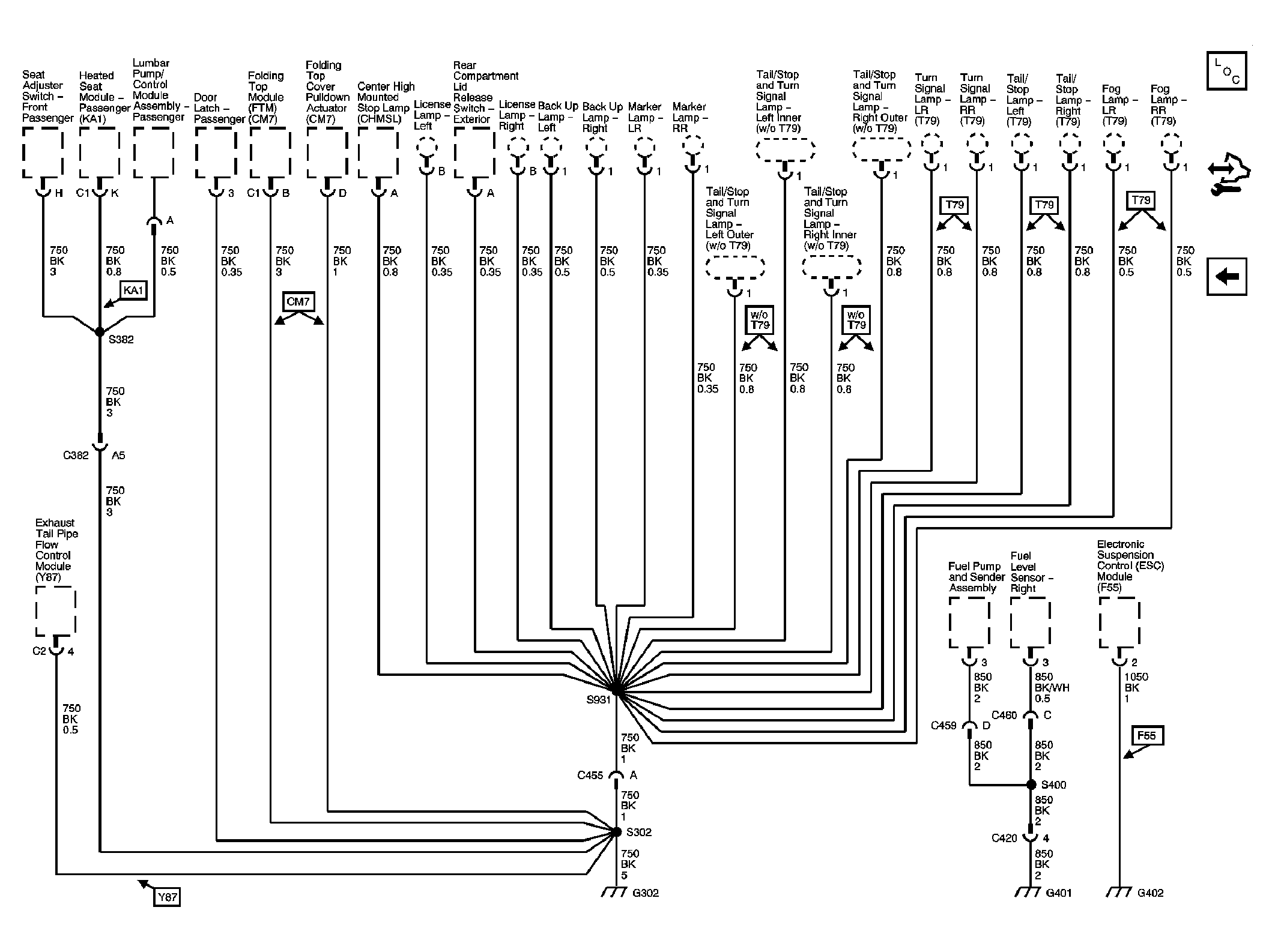

Fig 9: G302, G401 and G402 Schematic

Courtesy of GENERAL MOTORS CORP.
