Exhaust Manifold Replacement - Right: Notes

    Fig 1: Exhaust Manifold Pipe Nuts (Right)
    GM664837Courtesy of GENERAL MOTORS CORP.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the surge tank bolt and position the surge tank aside. Refer to Surge Tank Replacement in Engine Cooling.
  3. Remove the exhaust manifold pipe nuts.
  4. Lower the vehicle.
  5. Remove the spark plugs. Refer to Spark Plug Replacement in Engine Controls - 6.0L.
  6. Remove the engine oil level indicator tube. Refer to Oil Level Indicator and Tube Replacement in Engine Mechanical - 6.0L.
    7. Fig 2: View Of Heat Shield Bolts, And Shield From The Exhaust Manifold (4.8L, 5.3L, and 6.0L Engines)
    GM492768Courtesy of GENERAL MOTORS CORP.
  7. Remove the heat shield bolts (1) and shield (2) from the exhaust manifold (1).

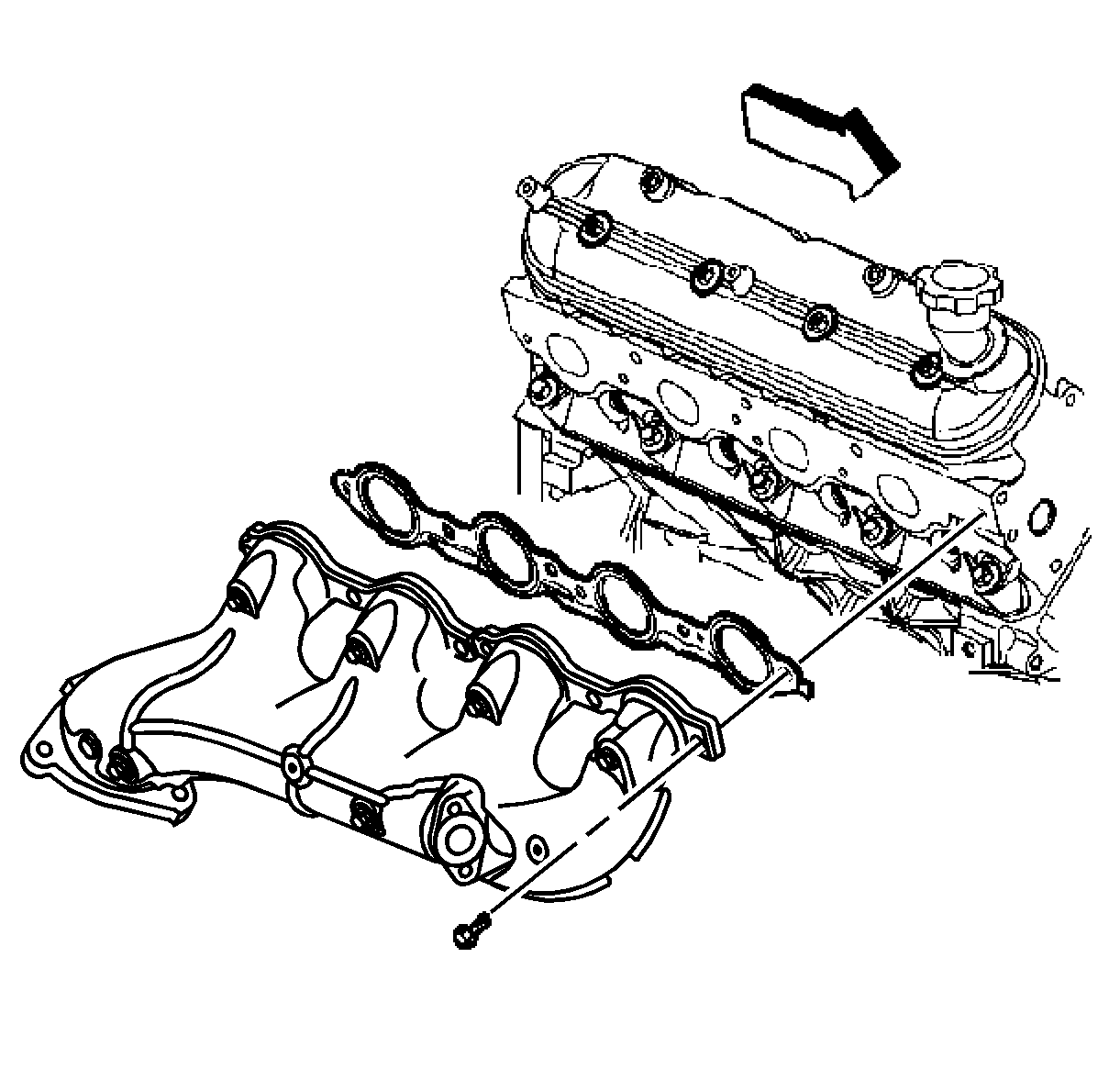

    8. Fig 3: View Of Right Exhaust Manifold (4.8L, 5.3L, 6.0L)
    GM741554Courtesy of GENERAL MOTORS CORP.
  8. Remove the exhaust manifold bolts, manifold, and gasket.
  9. Discard the gasket.
  10. Clean and inspect the exhaust manifold. Refer to Exhaust Manifold Cleaning and Inspection in Engine Mechanical - 6.0L.
