Installation Procedure

    Fig 1: View Of Oxygen Sensors
    GM664954Courtesy of GENERAL MOTORS CORP.
  1. If necessary, install the oxygen sensors.
    1. Apply anti-seize compound GM P/N 12377953 or equivalent to the threads of the old oxygen sensors.
      2. NOTE: Refer to Fastener Notice in Cautions and Notices.
    2. Install the oxygen sensors.

      Tighten:  Tighten the sensors to 42 N.m (31 lb ft).

    2. Fig 2: View of Catalytic Converter
    GM1231424Courtesy of GENERAL MOTORS CORP.
  2. Install the catalytic convertor.
  3. Install the transmission support. Refer to Transmission Support Replacement in Frame and Underbody.
    4. Fig 3: View Of Right Exhaust Pipe Nuts
    GM858553Courtesy of GENERAL MOTORS CORP.
  4. Install NEW exhaust manifold pipe seals to the exhaust manifolds.
  5. Install the right exhaust manifold pipe nuts until snug.
    6. Fig 4: View Of Left Exhaust Manifold Pipe & Nuts
    GM858550Courtesy of GENERAL MOTORS CORP.
  6. Install the left exhaust manifold pipe nuts until snug.
  7. Tighten the exhaust manifold pipe nuts.

    Tighten:  Tighten the nuts to 50 N.m (37 lb ft).

    8. Fig 5: View of Exhaust Muffler
    GM1231421Courtesy of GENERAL MOTORS CORP.
  8. Install the exhaust muffler nuts.

    Tighten:  Tighten the nuts to 45 N.m (33 lb ft).

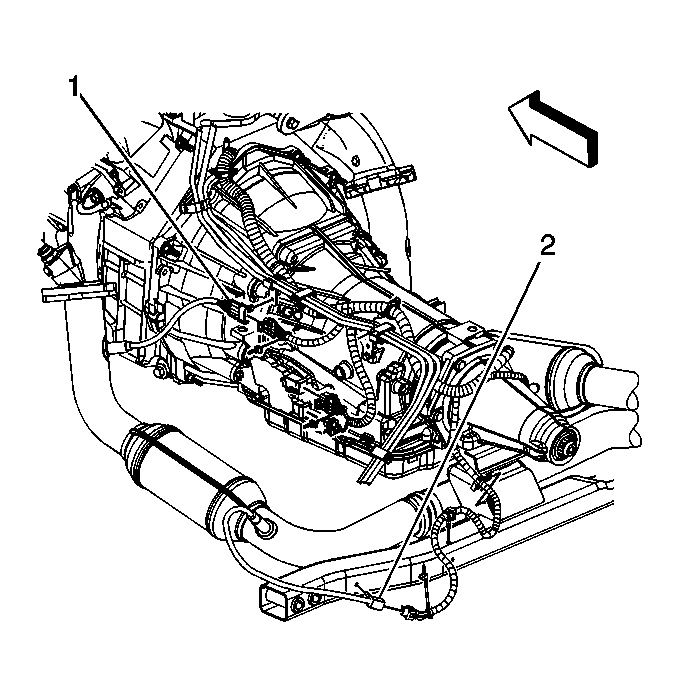

    9. Fig 6: View Of O2 Sensor Harness Routing
    GM664951Courtesy of GENERAL MOTORS CORP.
  9. Connect the oxygen sensor electrical connectors (1, 2).
  10. Connect the CPA retainers.
  11. Clip the oxygen sensors electrical connectors to the following:
    • Hose clip
    • Transmission crossmember
    12. Fig 7: View Of O2 Sensor Harness Routing And Harness Mounting Brackets
    GM664828Courtesy of GENERAL MOTORS CORP.
  12. Connect the oxygen sensor electrical connectors.
  13. Connect the CPA retainers.
  14. Install the clip around the engine harness and the oxygen sensor pigtail.
  15. Clip the oxygen sensor connection to the floor reinforcement.
  16. Lower the vehicle.
