Cooling System Component Views

WARNING: This page is about a different car, the 2007 GMC Savana Special, 2007 GMC Savana Camper Special, 2007 GMC Savana, and 2007 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: RF of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Surge Tank
2	Radiator
3	Coolant Level Switch

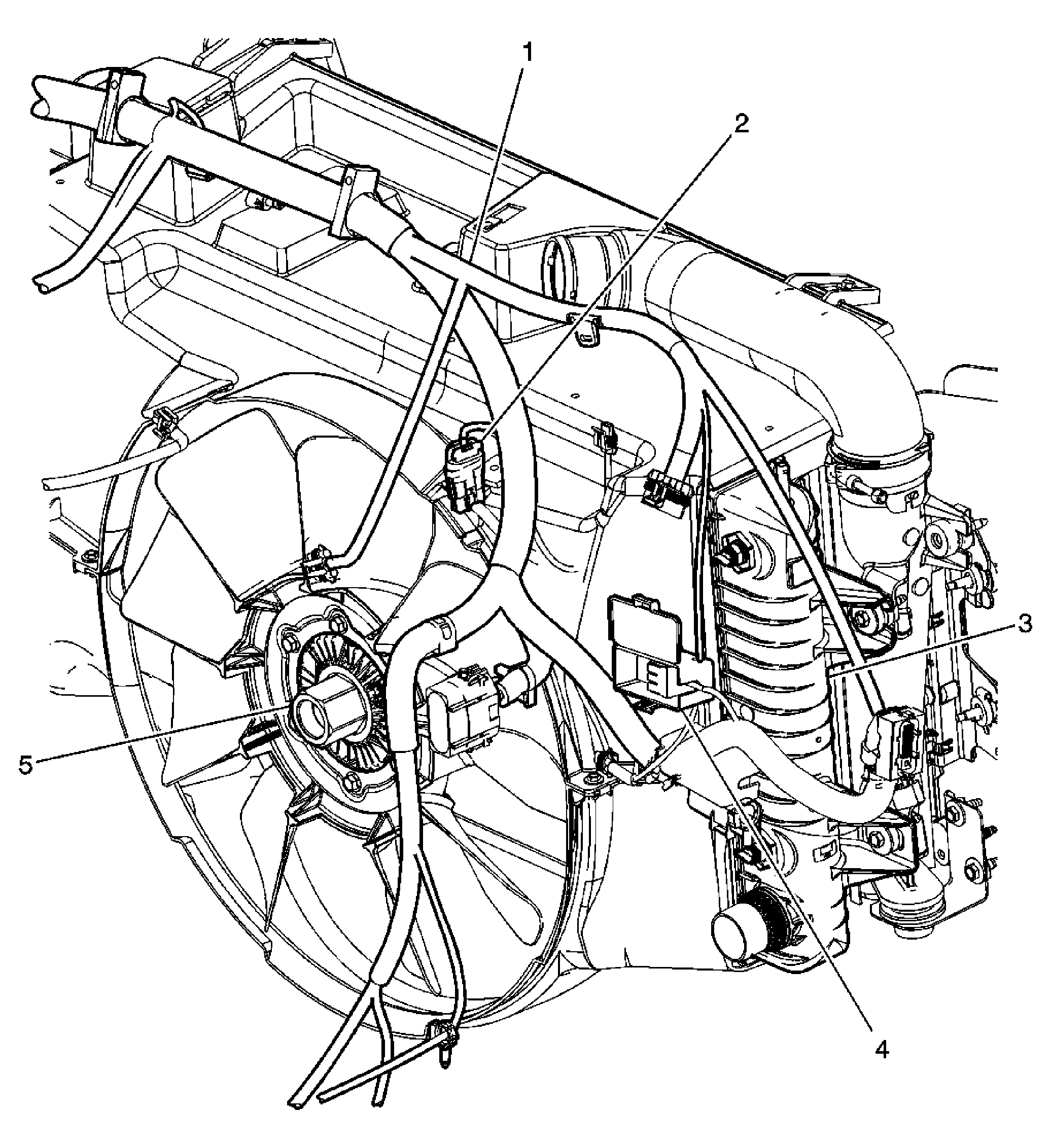

Fig 2: Front of the Engine Compartment (LMM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Chassis Harness
2	Cooling Fan Connector
3	Radiator
4	Cooling Fan Relay
5	Cooling Fan Assembly
