Cooling System (Mechanical)
>>
Engine Cooling System
>>
Component Locator
>>
Cooling System Component Views
Cooling System Component Views

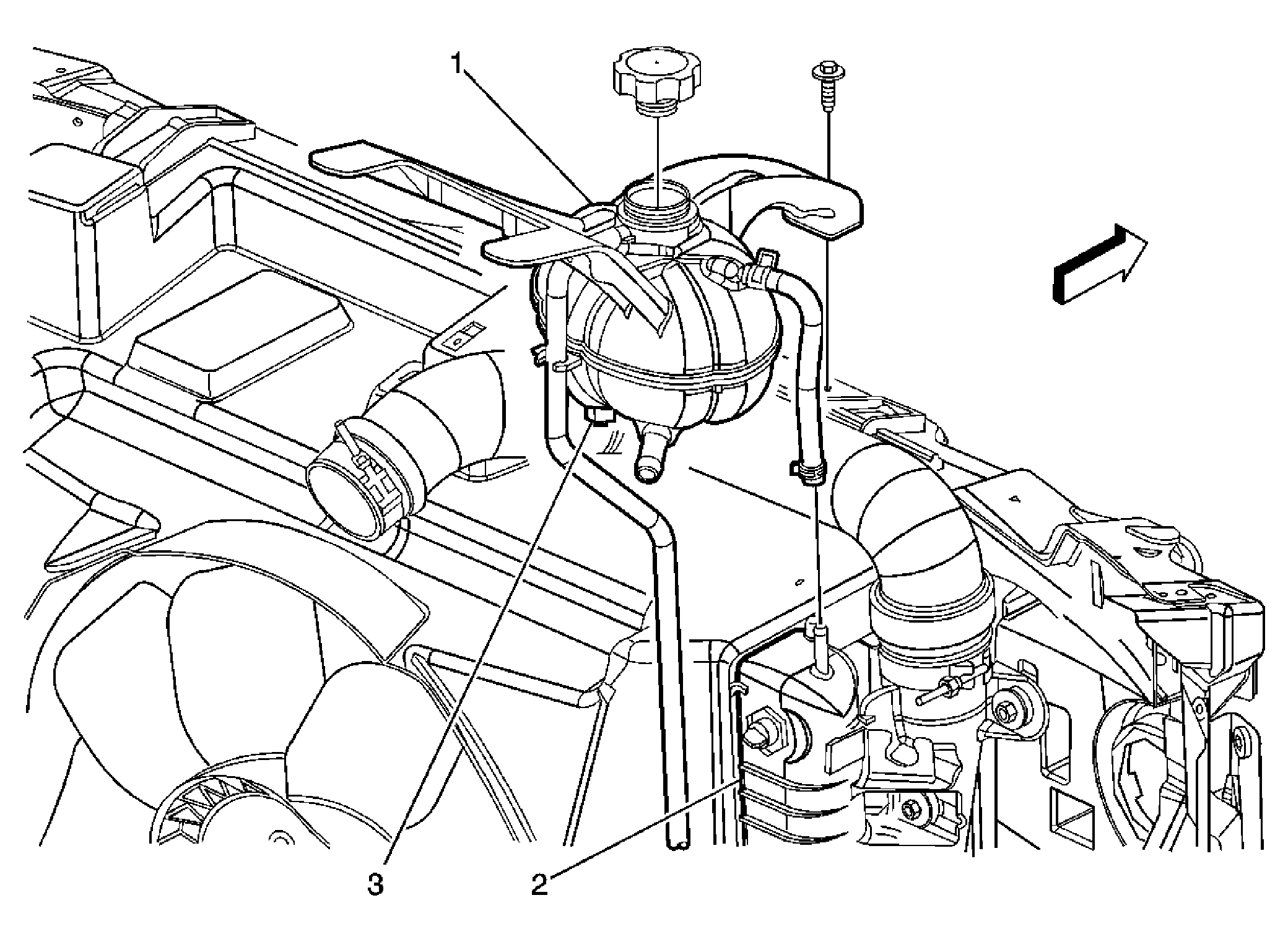

Fig 1: RF of the Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Surge Tank
2
Radiator
3
Coolant Level Switch
