Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

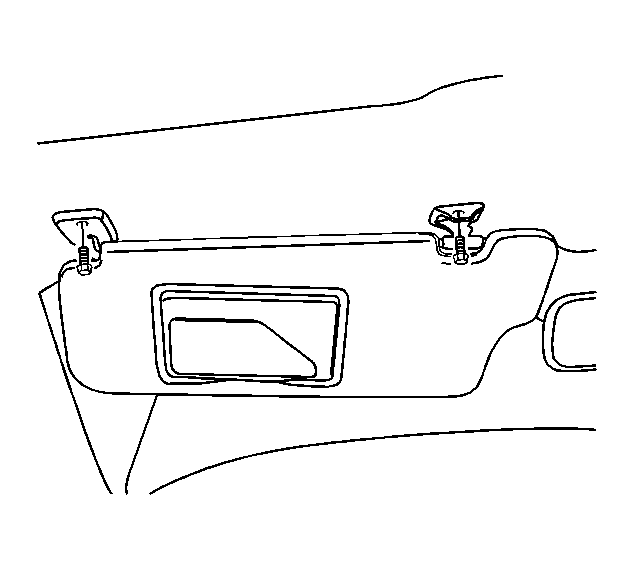

Fig 1: Identifying Sun Visor Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the sun visor support to the headliner with the screw.
Tighten: Tighten the sun visor support screw to 1.5 N.m (13 lb in) .
Connect the vanity mirror electrical connector.
Install the sun visor to the headliner with the screws.
Tighten: Tighten the sun visor screws to 4 N.m (35 lb in) .
