Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

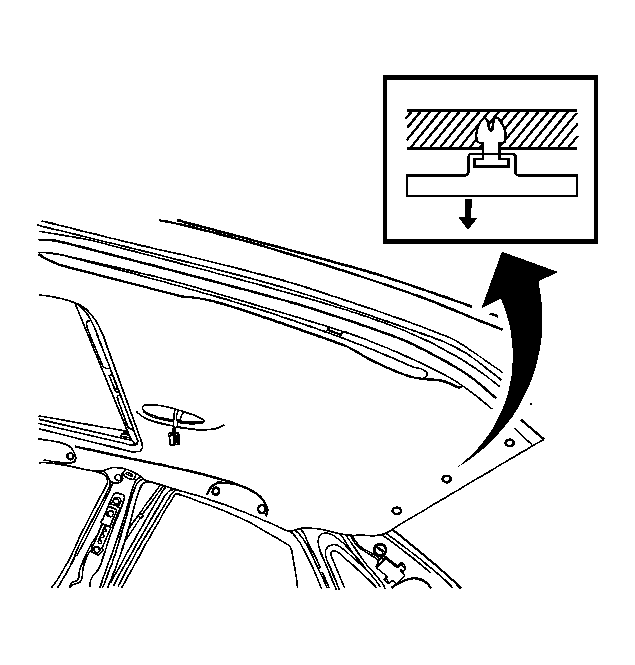

    Fig 1: Identifying Headliner Retainers
    GM1309214Courtesy of GENERAL MOTORS CORP.
  1. Recline both front seats.
  2. Install the headliner behind the seats around the doors.
  3. Install the plastic retainers.
  4. Install the windshield pillar. Refer to Garnish Molding Replacement - Windshield Pillar .
  5. Install the upper center pillar. Refer to Trim Panel Replacement - Upper Center Pillar .
  6. Install the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper (Sedan)  or Trim Panel Replacement - Rear Quarter Upper (Wagon) .
  7. Install the power sunroof control switch, if equipped. Refer to Sunroof Switch Replacement in Roof.
  8. Install the sun visors. Refer to Sunshade Replacement  in Roof.
  9. Install the plastic retainers in the headliner on the driver's side.
  10. Install the passenger assist handles. Refer to Assist Handle Replacement .
  11. Install the sunroof molding, if equipped.
  12. Connect the negative battery cable.
