Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

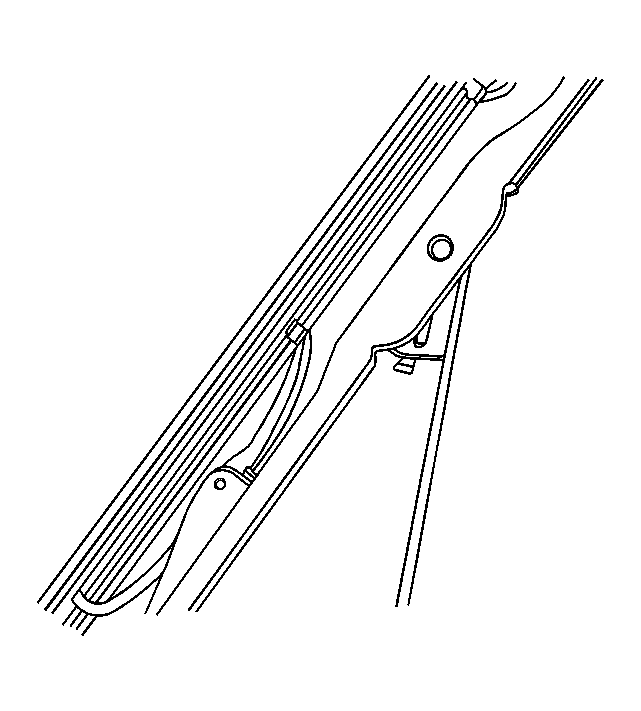

Fig 1: Locating Wiper Blade Retainer Clip
GM1308530Courtesy of GENERAL MOTORS CORP.

Install the wiper blade by sliding it onto the arm until the retainer clip engages.
