Installation Procedure

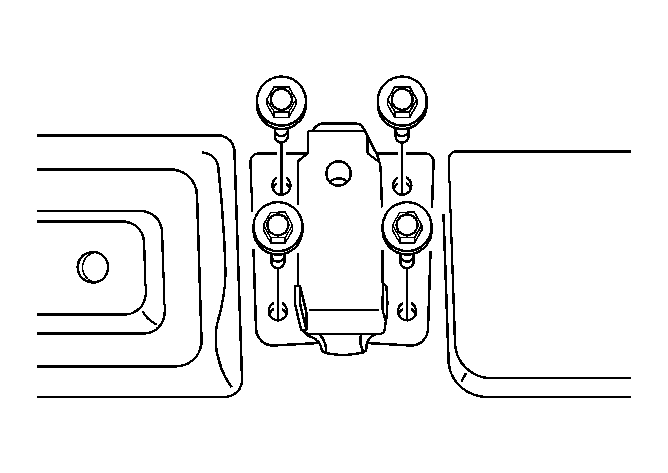

Fig 1: View Of Rear Seat Hinge Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the seatback center hinge with the bolts.
Tighten: Tighten the rear seat hinge bolts to 45 N.m (33 lb ft) .
Install the rear seatback and the rear seat cushion. Refer to Seat Cushion Replacement - Rear and Seat Back Replacement - Rear Split Folding .
